30L Pharmaceutical Ointment Vacuum Emulsifying Machine 1.1 kw 380V 50Hz

30L Pharmaceutical Ointment Vacuum Emulsifying Machine 1.1 kw 380V 50Hz

vacuum emulsifying mixer

industrial mixing equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTRZ-30

Contact Us

Request A Quote
Product Details
Product Description



30L Pharmaceutical Ointment Making Vacuum Emulsifying Machine Mix Oil And Water





Quick Detail:





Dimension:1400mm×600mm×1900~2400 mm

Using life: More than 15 years

Spare parts: One year spare parts and tools

Guarantee: One year

Heating method: Jacket electrical heating/Seam Heating

Exhaust method: Electric doom and bottom discharge or positive pressure discharge material

Control box: SUS304 , 1.2mm thickness





Description:





The main pot of LTRZ-30 is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.

The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.

The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.

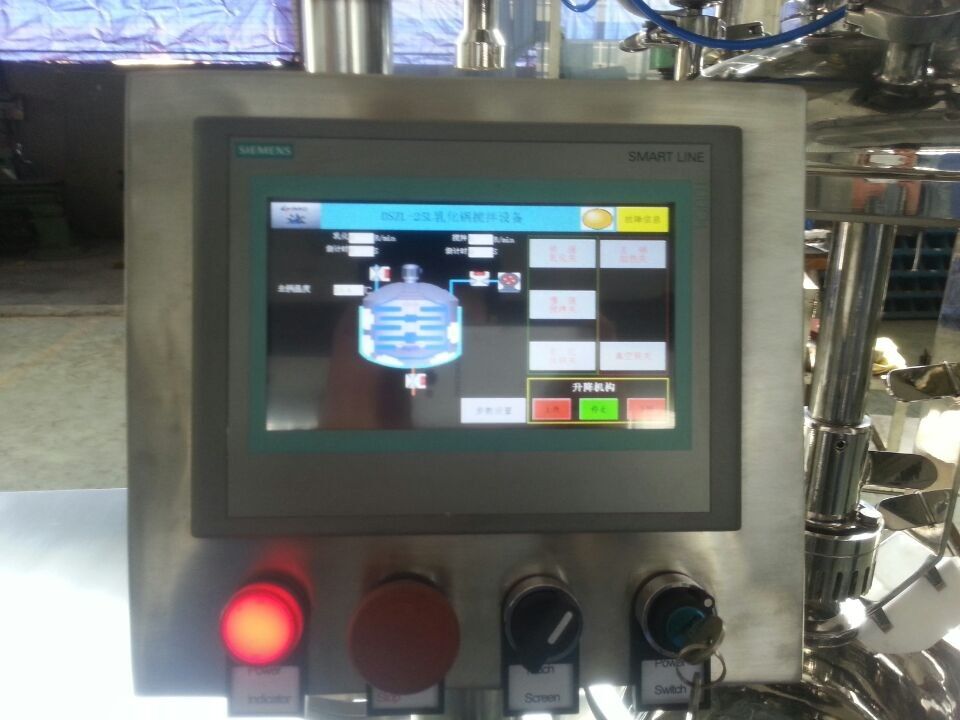

The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.





Applications:





Pharmaceutical Industry: Lotion, Cream, Paste, Suspend Liquid etc.

Food: Milk, Ketchup, Yogurt, etc.

Cosmetics: Lotion, Cream, Toothpaste, Oily Liquid, Suspend Liquid etc.





Specifications:





Capacity Volume 30L

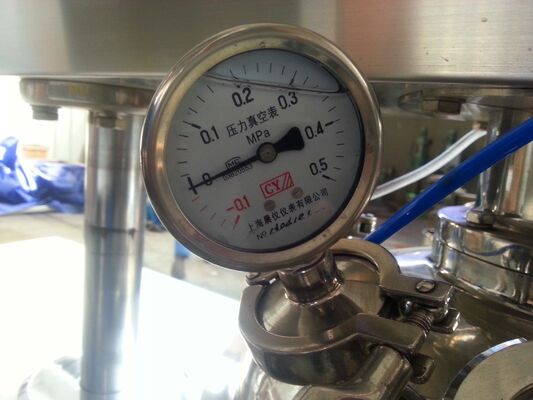

Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 2kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 1400mm×600mm×1900~2400 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years





Oil pot

Design volume 25L
Working capacity 20L
Stirring power 0.55kw
Stirring speed 1400 RPM
Heating power 2 Kw



Water pot

Design volume 25L
Working capacity 20L
Stirring power 0.55kw
Stirring speed 1400 RPM
Heating power 2 Kw




Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahor
