Flat Sealing Capsule Tablet Blister Packing Machine Stainless Steel 304

Flat Sealing Capsule Tablet Blister Packing Machine Stainless Steel 304

blister packaging equipment

automatic blister packing machine

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-160F

Contact Us

Request A Quote
Product Details
Product Description



Flat Sealing Model GMP Standard Blister Packing Machine For Capsule





Quick Detail:



Capacity of air compressor:≥0.36 m3/min

Model No.: DPP-140

Max Forming depth of PVC:160*120*25mm

Blanking frequency:5-50 Cutting/min

Material: Stainless steel 304

Capacity: 45-100 Sheets per min

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:



1. Travel scope can be adjusted.

2. Alu Alu Blister Packaging is available for this machine.

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

7. Stepping motor Pulling Material more accuracy and easy adjusting

8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.





Applications:



This machine is our engineer update based on DPP-160Fmodel and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.

Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.

Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.

Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.





Specifications:



MODEL: 140
Blanking frequency (sheets): 5-50
Sheet's quantity of one blanking (sheets): 2
Capacity (blisters/min): 45-100
Adjustable scope of feed travel: (mm) 10-120
Max Forming depth (mm) PVC: 160*120*25
Capacity of air compressor(m3/min): ≥0.36

Power supply (KW):



220V AC, 30 Hz, Three Phase (Depend on your requirement.)
Weight (kg): 950Kg






Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)

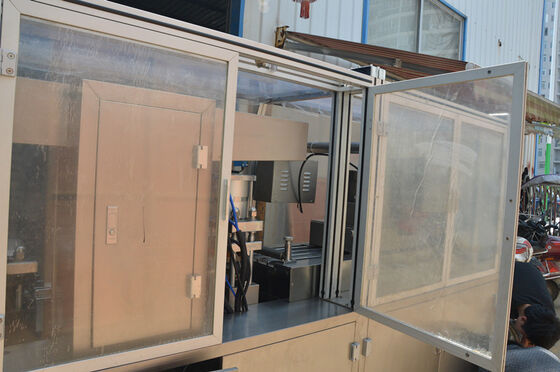

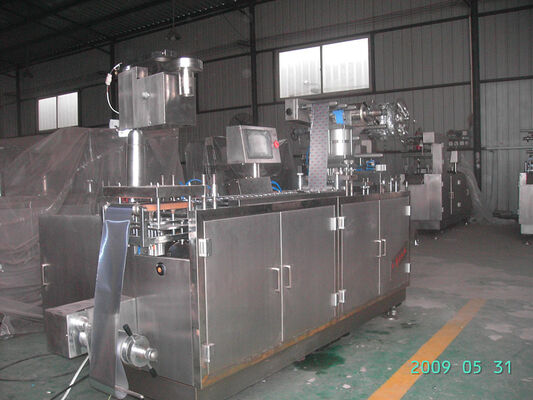

Main machine

Flat Sealing Capsule Tablet Blister Packing Machine Stainless Steel 304 0

Electronic Box

Flat Sealing Capsule Tablet Blister Packing Machine Stainless Steel 304 1

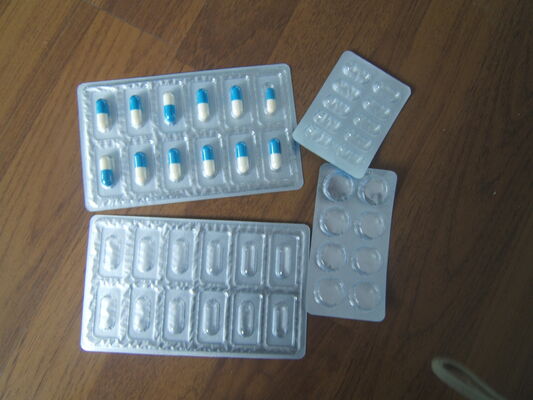

Alu Alu Packaging

Flat Sealing Capsule Tablet Blister Packing Machine Stainless Steel 304 2
