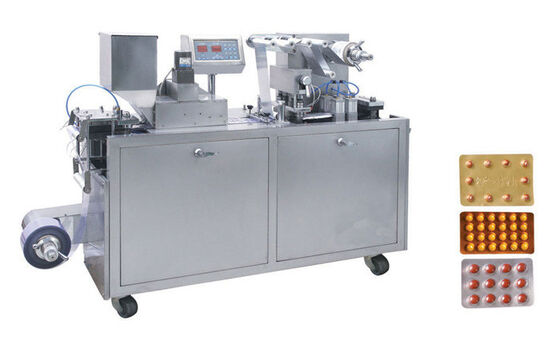

Mini Type Aluminum Plastic Tablet Blister Packing Machine Both Alu Alu And Alu PVC
High efficiency, low consumption
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.
3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Stepping motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
This machine is our engineer update based on DPP-160Fmodel and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.
Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.
Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.
Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.
Model 88H 140H
Blanking frequency(times/min) 10-35 10-35
Sheet's quantity of one blanking(sheets) 1 1-2
Adjustable scope of feed travel(mm) 600-2100 1200-4200
Appropriate for Capsule 10-100 40-110
Max Forming area and depth(mm) 110×90 14×100
Capacity of air compressor((m3/min) ) ≥0.25 ≥0.36
Power supply 220V 50Hz 4.5KW 380V 50Hz 6.5KW
Wrapper specification(mm) PVC for medicine(mm) 110×(0.15-0.5) 140×(0.15-0.5)
Aluminum foil 110×(0.02-0.035) 140×(0.02-0.035)
Overall dimensions(mm) 1800×460×1070 2850×530×1400
Weight(Kg) 300 700
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
