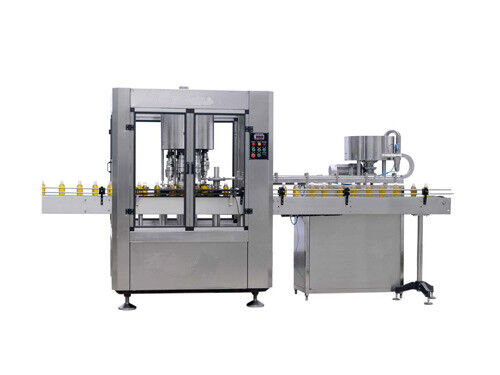

Rotary High Speed Glass / Plastic Bottle Capping Machine With Auto Capper

Rotary High Speed Glass / Plastic Bottle Capping Machine With Auto Capper

Rotary High Speed Glass / Plastic Bottle Capping Machine With Auto Capper

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP, SGS, BV
Model Number: HXG-8

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T,L/C,D/P
Supply Ability: 15sets/month
Contact Now
Detailed Product Description

Rotary Type High Speed Bottle Capping Machine Connect to Liquid Bottle Filling Machine





Quick Details:



             Production Capacity: 6 head:≥100bpm;8 heads≥120bpm

            Applicable bottle size:φ20-150mm

            Applicable cap size:φ12-70mm

            This machine can connect to any kinds of liquid filling machine, labeling machine.





Desription:



HXG/8 rotary capping machine has the function of auto pick and place cap, with invariable capping torque application, advantage of stable placing cap, and high capping quality. The bottles are continuously infeed to starwheel, more stable and fast. It is widely used in the industry of pharmaceutical, foodstuff and chemical etc.





Application:



      This machine suitable for Plastic bottle, glass bottle and plastic cap and aluminum cap.





Specification:



Applicable bottle size φ20-150mm
Applicable cap size φ12-70mm
Production capacity(e.g. 100ml) 6 head:≥100bpm;8 heads≥120bpm
Yield of capping ≥99%
Power source 220/380V 50Hz
Power output ≤2Kw
Request air pressure 0.4-0.6MPa
Speed control frequency conversion adjusting speed
Machine noise ≤70dB
Weight approx. 1000Kg
Overall dimension 2000*1100*1600(mm)





Comptitive Advantage:



    1. High Speed

    2. Aluminum cap and Plastic Cap

    3. Siemens System

    4. GMP Standard
