viscosity liquid / Kechup / Sauce Filling Machine AVF Series 20-500ml

viscosity liquid / Kechup / Sauce Filling Machine AVF Series 20-500ml

automatic bottle filling machine

water bottling equipment

Place of Origin:


Brand Name:

LTPM China



Model Number:


Contact Us

Request A Quote
Product Details
Product Description

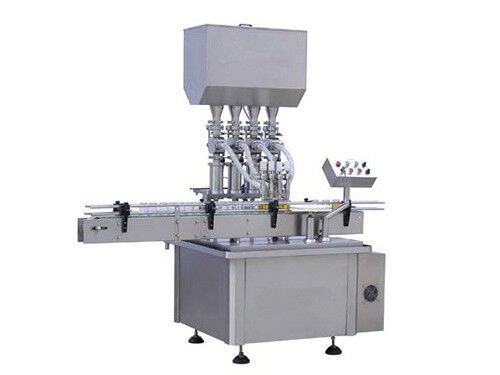

AVF Series Automatic Sauce Filling Machine, Kechup Filling Machine, Liquid Bottle Filling Machine



Quick Details:


     Capacity: 30-120bottle/minute

     Filling Volume: 20-5000ml, 20-500ml

     Filling Accurate: 20-1000ml:≤±1% 1000-5000ml:≤±0.5%

     Filling Nozzle: 4/6/8/12/16 nozzles





    AVF automatic sauce filling machine is designed by referring to the same kind of foreign filling machines with extra functions increased The product is simple and convenient in operation,error correction,machine cleaning and maintenance.widely used for filling various kinds of viscosity liquid products in the industries of,foodstuffs,pharmaceutics etc.





   Different kinds of viscosity liquid, sauce, kechup, etc.





Filling nozzles 4 6 8 12 16
Filling range 20-5000ml 20-500ml
Ideal filling range 20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml
Filling speed(100ml)bpm 30-40 40-60 60-70 70-100 90-120
Filling precision 20-1000ml:≤±1% 1000-5000ml:≤±0.5%
Air pressure range 0.4-0.6MPa
Air consumption 10m³/h 15m³/h 20m³/h 30m³/h 40m³/h
Power supply 220V 50/60Hz
Power consumption 0.75Kw 0.75Kw 1.2Kw 2.2Kw 2.2Kw
Single machine noise ≤50dB
Net weight 550Kg 900Kg 1150Kg 1500Kg 1750Kg
Overall dimension(mm) 1300*1200*1800 1600*1200*1800 1900*1200*1800 2300*1200*1800 2600*1200*1800



Comptitive Advantage:

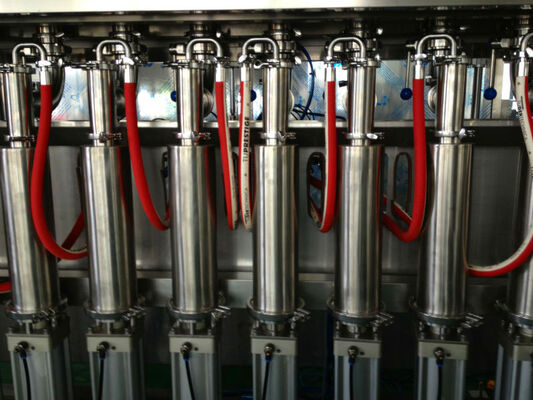

  1. Adopt piston pump to fill high precision, large range of adjusting dosage.
  2. It allows to adjustment of filling column for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy.
  3. This pump system don't absorb the material, good chemical stability.
  4. Stainless steel rotary valve to fit to various kinds of viscosity product.
  5. Auto shut on/off filling nozzles, avoid leaking and drawing.
  6. Header liquid hopper, auto level sensor control product supply.
  7. Frequency conversion control speed, auto count output, no bottle no fill.
  8. The whole machine is designed according to requirements of GMP.

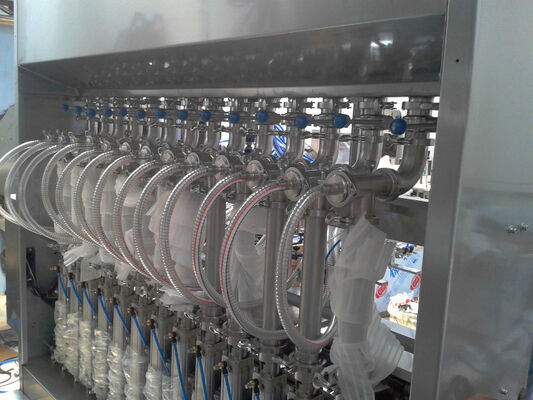

viscosity liquid / Kechup / Sauce Filling Machine AVF Series 20-500ml 0

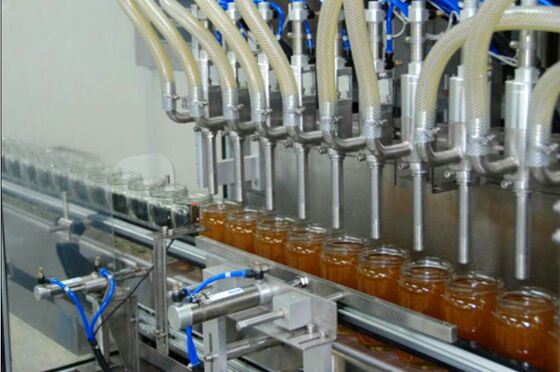

viscosity liquid / Kechup / Sauce Filling Machine AVF Series 20-500ml 1
