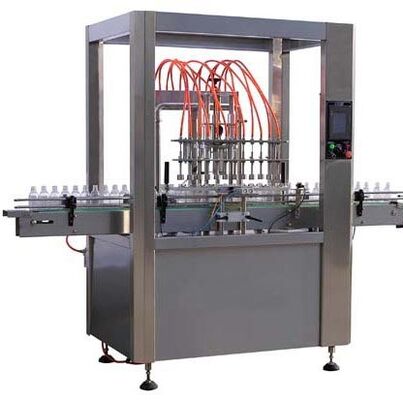

Liquid Glass Bottle Filling Machine Air Jet Bottle Washing Machine

Liquid Glass Bottle Filling Machine Air Jet Bottle Washing Machine

automatic bottle filling machine

water bottling equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP, SGS, BV

Model Number:

QX

Contact Us

Request A Quote
Product Details
Product Description

Air Jet Bottle Washing Machine For Liquid Bottle Filling Machine Preparation





Quick Details:



        1. Multi Nozzle Air Washer: 4/6/8/12 nozzle

        2. Capacity: 5000bottles/hour

        3. Cleaning Time: 3-5seconds.

        4. Air consumption:25m³/h





Description:



      This machine is used for rinsing glass &plastic bottle by clean compressed air, which enters into the bottle,rinses the intemal of bottle and then is absorbed out from another exit.Since the machine is fully closed,the powder, dust,water drops or impurities in bottle or on the wall of bottle can be blown away. The development and manufacture of the equipment fills in the gap in the market. With continuous improvement fo several years, this kind of equipment has been launched in mass and obtained above 90% of domestic market shares. It has the several patent in china.





Application:



    Plastic Bottle, Glass Bottle, etc. Volume from 20ml to 500ml





Specification:



Bottle Volume 20-500mL
production capacity 12 cleaning nozzles 5000bph
Air pressure range 6-8kg/cm²
Air consumption 25m³/h
Power supply 220V 50/60Hz
Power consumption 0.75Kw
Single machine noise ≤70dB
Purified air 0.2 u m
Cleaning time 3-5s
Net weight 500kg
Overall dimension(mm) 1200*800*1600





Comptitive Advantage:



1. Simple strure,stable function,easy operation and low maintenance cost.

2. Equipped hydronium generator,neutralize static,efficiently wipe off the dust on the inner wall of bottle

3. Automatic conveyor mounted bottle indexing gates to control container movement.

4. No tools required nozzle mounts and bottle washing process.

5. PLC control and man-machine control for bottle washing process.

6. Effectively cleanup the contaminates such as dust and carton chip.

7. The contaminates is drawn out from outetl of vacuum pipe,no circulate and no pollution.

8. Constructed of stainless steel 304,face polished,easy take down and washdown.

9. Fully enclosed with stainless steel panel and Plexiglas and gasketed access door,auto stop with door open.

10.Washing quality satisfied the GMP regulation.





Demension:



Liquid Glass Bottle Filling Machine Air Jet Bottle Washing Machine 0



Liquid Glass Bottle Filling Machine Air Jet Bottle Washing Machine 1
