|Place of Origin:||China|
|Brand Name:||LTPM China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Export standard wooden case|
|Payment Terms:||L/C, T/T|
Vertical Round Barrel Semi Automatic Sticker Labeling Machine By Stainless Steel 304
The outer diameter of label volume: 350 mm (max.)
Label Specifications: Glassine body paper, transparent or opaque
Running speed: 5-50 drum /min (subject to the size of drum and label)
Certificate: CE Certificate
Overall Size: 2300×800×1500mm
Model No.: MT-50S
Material: Stainless steel 304
1. Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;
2. Using touch-screen control operating system, simple and efficient;
3. Upgraded disc label station design, also suit for conical and flask bucket;
4. Screw adjustment suppressing mechanism suppress bucket move accurately;

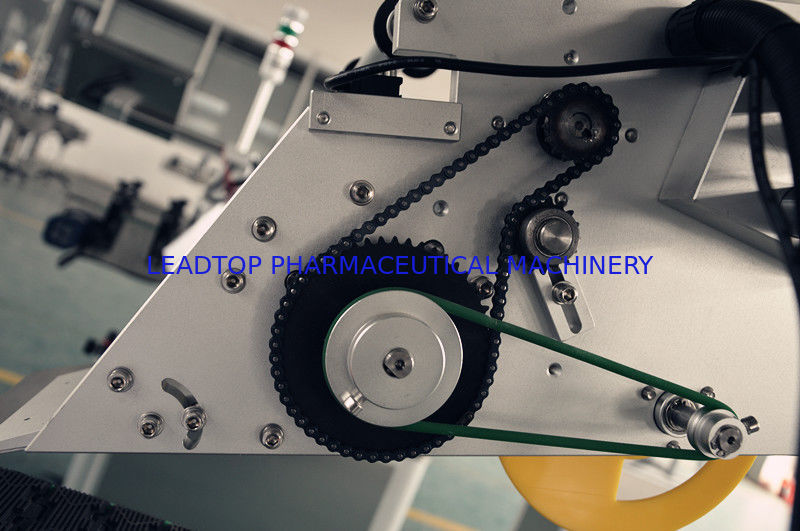

5. Synchronization chain mechanism ensure labeling smooth and precise calibration;
6. Advanced technology of pneumatic code system, print the batch number and expiry date clearly;
7. Transmission-type roll label device,
8. Imported electric elements, stable performance, low failure rate;
9. Adopt mature technology PLC control system, operation is stable and high-speed
10. Can be operated alone or contract with the production line;
11. No bucket no labeling, automatic alarm when achieve leakage label.
12. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust;
13. The bucket was transited to the labeling conveyor from upper conveyor, keep a certain distance between bottles;
14. Then transfer to press bucket device to insure the bottles on a central line.
15. When the photoelectric sensor detect the bottle, transmit the signal to PLC;
16. The label is labeled on the bucket firmly through the brush label device;
17. After finish labeling, the bucket enter into the next production procedure after.
MT-50S model Vertical round barrel sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
|Driving Mode||Servo motor|
|Operating direction||Left or Right (Can customized depends on client need)|
|Capacity||5-50 drum /min (subject to the size of drum and label)|
|Labeling Speed||≤35 m/min|
|Labeling Accuracy||±1.0 mm (subject to the roughness of the plane)|
|Label Specifications||Glassine body paper, transparent or opaque|
|The inner diameter of label volume||76 mm(min)|
|The outer diameter of label volume||350 mm (max.)|
|Voltage||AC220V 50/60HZ Single side(depend on customer requirements)|
1. We have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
