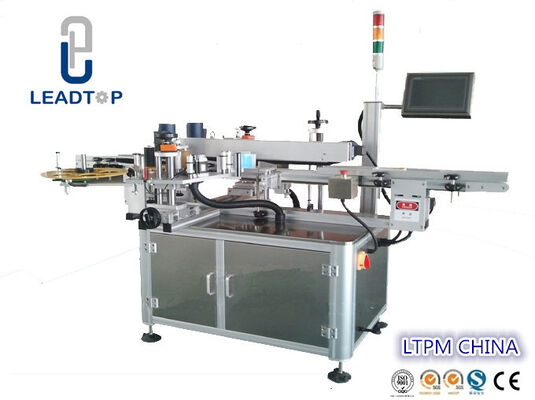

800W Single Phase Carton Double Side Automatic Labeling Machine 20-130 carton/min
Label speed: ≤35 m/min
Material: Stainless steel 304
Labeling accuracy: ±1mm
The standard system: Servo motor
Model No.: MT-130D
Certificate: CE Certificate
Running speed: 20-130 carton/min
Overall Size: 2200×1800×1500mm
1. Using side label method, add Press carton structure, ensure the stability of carton.

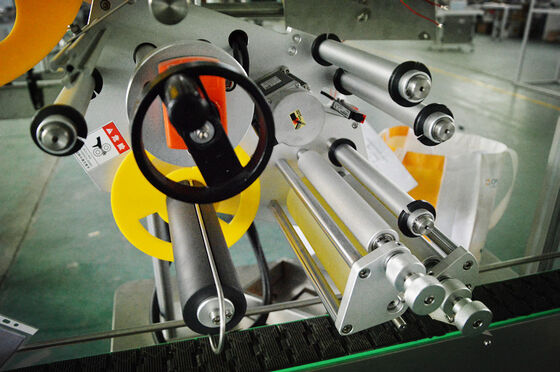

2. When the label touch the carton, the brush firm the front label, make sure the label is smooth and firm.
3. Conveyor speed can be adjust to match up the send label speed, ensure label no wrinkle.
4. The inverter control the Motor, make sure the conveyor speed,press carton speed and send label 5. speed synchronous operation, label surface is smooth and label position is accurate.
6. The durable engine and parts are solid and durable, adopt standardized modular design completely interchangeable, 24-hour operation ensure the security and stability.
7. The whole machine use S304 stainless steel and anodized senior aluminum alloy, Never rust and with high corrosion resist.
8. Adopt mature technology PLC control system, operation is stable and high-speed
9. Using touch-screen control operating system, simple and efficient;
10. Upgrade new standard station design, the angle can adjust depends on different carton size;

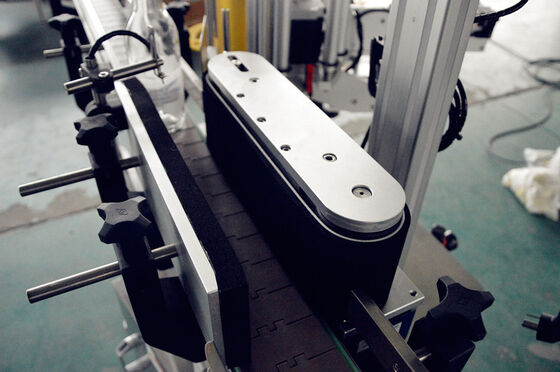

11. Top press device ensure stability of carton when labeling, particularly applicable for light and --small cartons;
12. Combine the characteristic of light label objects, adopt Belt conveyor with High stability;
Butterfly designed station, machine’s angle can be adjusted to adapt different bottle's shape and size.
MT-130D model Carton double sides seal sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.
|The standard system||Servo Motor|
|Operating Direction||Left or right|
|Label speed||≤35 m/min|
|Tags volume inner diameter||76 mm|
|Tags volume outer diameter||350 mm (max)|
|Label Specifications||Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)|
|Labeling accuracy||±1.0mm (subject to the roughness of the plane)|
|Total motor power||800W|
|Power supply||AC220V 50/60HZ Single phase|
|Size appearance (mm)||2200 (L) 1800 (W) 1500(H)|
