Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor

Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor

    • Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor
    • Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor
    • Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor
  • Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor

    Product Details:

    Place of Origin: China
    Brand Name: LTPM China
    Certification: CE, GMP
    Model Number: MT

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 25days
    Payment Terms: L/C, T/T
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description

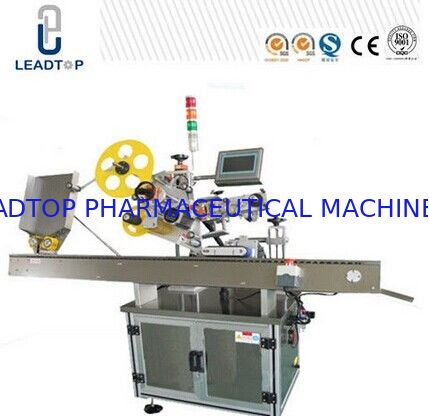

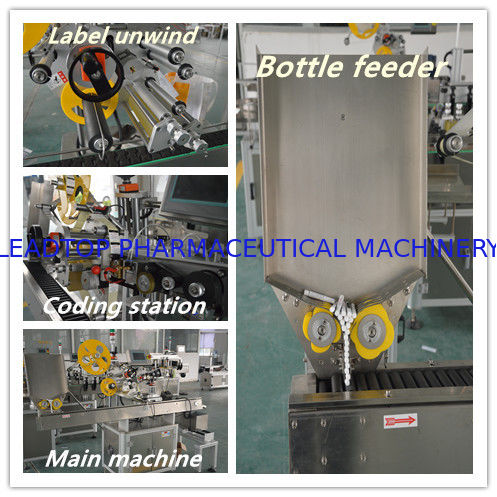

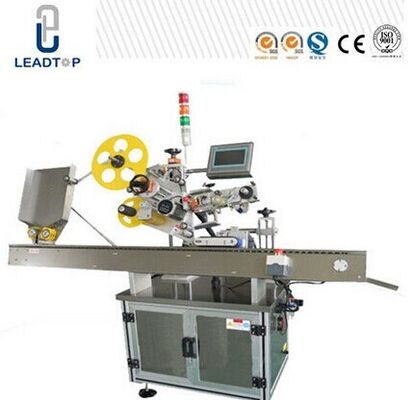

    Vertical Small Round Bottle Sticker Automatic Labeling Machine With Servo Or Step Motor





    Quick Detail:





    Driving mode: Servo or step motor

    Running speed: 30-60 bottle/min (Step motor) 60-230 bottle/min (Servo motor)

    Model No.: MT-60

    Labeling speed: ≤40m/min

    Overall Size: 1800×700×1270mm

    Weight:300kg

    Material: Stainless steel 304

    Certificate: CE Certificate





    Description:





    1. The damaged rate of bottle is less than 1/200000;

    2. Using touch-screen control operating system, simple and efficient;

    3. Advanced technology of pneumatic coding system, print the batch number and expiry clearly;

    4. Transmission-type rolling bottles make sure the labels attached more firmly;

    5. Adopt mature technology PLC control system; operation is stable and high-speed;

    6. Imported electric elements, stable performance, low failure rate;

    7. Adopting photoelectric detection, PLC control, software operation, conveyor belt, labeling accurately and high precision;

    8. No bottle not labeling, automatic alarm when achieve leakage label.

    9. The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy.





    Applications:





    MT-60 model Vertical small round bottle sticker labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.





    Specifications:





    Production 30-60 bottle/min (Step motor)
    60-230 bottle/min (Servo motor)
    Labeling speed ≤40m/min
    Labeling specification Glassine paper, transparent and opaque
    Printer to use air 5kg/cm²
    The application of bottle Outer diameter 12-24mm Height 25-95mm
    The application of label Height 20-70mm Length 25-80mm
    The inner diameter of label plate Min. 76mm
    The outer diameter of label plate Max. 350mm
    Driving mode Servo or step motor
    The power of motor 300w
    Size appearance 1800×700×1270mm
    Voltage AC 220V 50/60Hz Single phase (according to the voltage in client country)





    Competitive Advantage:





    1. We have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho
