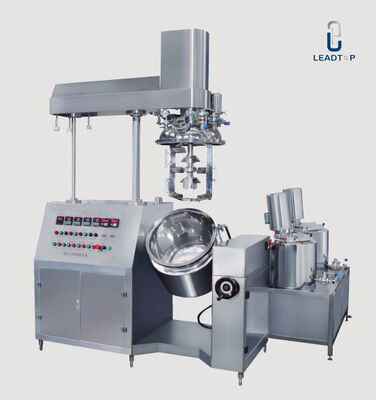

Double Layers Tilting Vacuum Emulsifying Machine For Ointment / Cream / Lotion

 Double Layers Tilting Vacuum Emulsifying Machine For Ointment, Cream And Lotion Production

Quick Detail:

Exhaust method: Electric doom and bottom discharge or positive pressure discharge material

Spare parts: One year spare parts and tools

Using life: More than 15 years

Guarantee: One year

Control box: SUS304 , 1.2mm thickness

Dimension:3500mm×2450mm×2250~3150 mm

Description:

1. The main pot of LTRZ-200 is composed of the cut-off mixing pot, cut-off mixer unit, circulating system and the stirring system etc.
2. The materials are sucked into emulsifying pot by transportation pipe under the vacuum state, or it also can be put from the feed inlet.
3. The material are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring materials from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, fold. Then the material is sent to the cut-off mixing unit where they are again cut off, broken and stirring by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200um~2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material. The ex-circulating system can make the homogenizing more strong. The material within the pot can be give off only under the state of change direction of the control valves.
4. The temp controller on operation panel can adjust the temp of the homogenizer pot; The homogenizer stirring and the blade stirring cab be used simultaneously or dividedly; The homogenizer stirring time can be set by the custom according to the different material. After finished the whole procession please rise the pot cover for the clearing.

Applications:

1. Pharmaceutical Industry: Lotion, Cream, Paste, Suspend Liquid etc.
2. Food: Milk, Ketchup, Yogurt, etc.
3. Cosmetics: Lotion, Cream, Toothpaste, Oily Liquid, Suspend Liquid etc.

Specifications:

Competitive Advantage:

1. German Imported Siemens Controlling System
2. Steam and electricity heating are both available for the machine
3. The machine comes with safety protection system while running.
4. One time processing high shearing homogenizing head.
