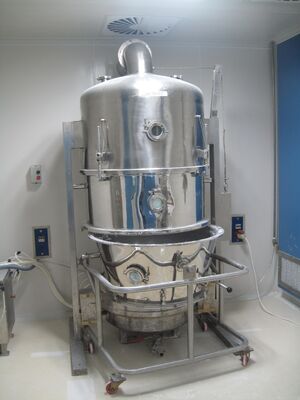

Steam Heating Type Bed Fluid Granulating Machine For Drying And Coating



Quick Detail:



Amount to be treated (kg/per time): 80/160

Model: FL-150

Power of fan (kw): 18.5

Material: Stainless steel 304

Consume of steam 0.4MPa(kg/h): 211

Consume of compressed air (m3/min): 0.3

Main machine height (m): 2.2×1.65×3.3

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate






The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.






1. Granulation: Tablet particles, granule particles, capsule particles

2. Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating

3. Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food

4. Pesticide, paint pigment, dry granulation Powder, granules, block materials






Model 150
Volume (L) 420
Amount to be treated (kg/per time) 80/160
Power of fan (kw) 18.5
Consume of steam 0.4MPa(kg/h) 211
Consume of compressed air (m3/min) 0.3
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.2×1.65×3.3

Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi         (Agent), Dhaka (Agent), Laho
