Small Pharmaceutical Capsule Blister Packing Machine With Plate Type

Small Pharmaceutical Capsule Blister Packing Machine With Plate Type

blister packaging equipment

automatic blister packing machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Product Description

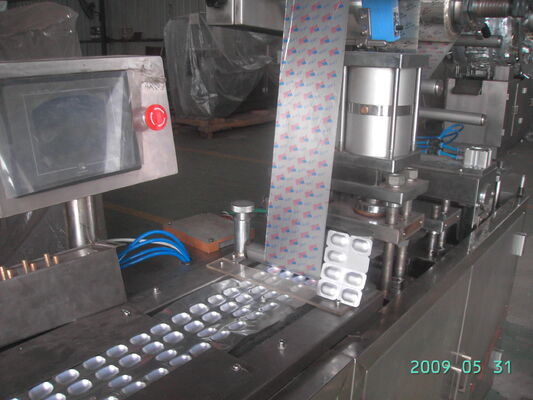

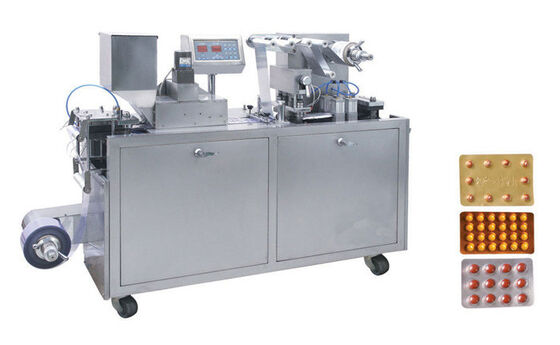

Small Pharmaceutical Capsule Blister Packing Machine With Plate Type


Quick Detail:



Blanking frequency:10-35 times/min

Model No.DPP-88

Sheet's quantity of one blanking:1 sheet

Adjustable scope of feed travel:600-2100mm

Material: Stainless steel 304

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





1. Travel scope can be adjusted.

2. Alu Alu Blister Packaging is available for this machine.

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

7. Stepping motor Pulling Material more accuracy and easy adjusting

8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.




The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.





Model 88
Blanking frequency(times/min) 15-40
Sheet's quantity of one blanking(sheets) 1
Capacity(sheets/hour) 900-2100
Adjustable scope of feed travel 10-110
Max Forming(mm) 120*110*15mm
Capacity of air compressor((m3/min) ) ≥0.25
Power supply 380V 50Hz 5.5Kw
Wrapper specification(mm) PVC for medicine(mm) 120×(0.15-0.5)
Aluminum foil 120×(0.02-0.035)
Overall dimensions(mm) 1650*500*1100mm
Weight(Kg)   650



Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
