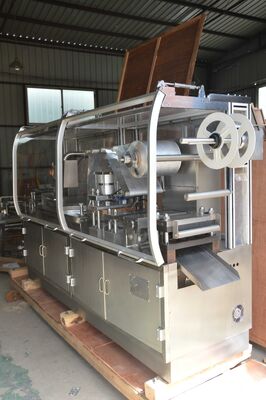

Tropical Multifunction Tablet / Capsule Blister Packing Machine CE Certificate
Product Details:
| Place of Origin: | China |
| Brand Name: | LTPM CHINA |
| Certification: | CE |
| Model Number: | DPP-320F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | In 25 days after receiving the deposit |
| Payment Terms: | 30% TT as deposit and 70% before shipping |
| Supply Ability: | 25 sets |
|
Detail Information |
|||
| High Light: | automatic blister packing machine,tablet blister packing machine |
||
|---|---|---|---|
Product Description
Tropical Multifunction Blister Packing Machine For Tablet And Capsule
Quick Detail:
Wrapper Specification for PVC:320*(0.15-0.5)mm
Wrapper Specification for PTP Aluminum Foil:320*(0.02-0.035)
Capacity: 75000-9000 Sheets per hour
Model No.: DPP-320
Sheet's quantity of one blanking:5-6 sheets
Material: Stainless steel 304
Blanking frequency:5-25 Cutting/min
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
Description:
1. Travel scope can be adjusted.
2. Alu Alu Blister Packaging is available for this machine.
3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.
4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.
5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.
6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.
7. Stepping motor Pulling Material more accuracy and easy adjusting
8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.
Applications:
This machine is our engineer update based on DPP-160Fmodel and our clients' feedback infomation,and fetch in advanced technology from aboard .Strickly improve it according to GMP standard.A waste material collecting device has been designed to this machine which can make its function much perfect.
Adjustable stroke:freely change the size of sheet and suitable for productioln of various kinds of specifications.
Flat-plate framework :It is suitable for pack any kind of shape ,such as square ,triangle.oval and etc.
Positive press forming : makes the bubble's symmetrical ,upright,and make the finished products much perfect.
Specifications:
| Model | 320F |
| Blanking Frequency(times/min) | 5-25 |
| Sheet’s Quantity of One Blanking(sheets) | 5-6 |
| Capacity(sheets/hour) | 7500-9000 |
| Adjustable Scope of Feed Travel(mm) | 40-150 |
| Max Forming Area and Depth (mm) | 320*130*15 |
| Capacity of Air Compressor(m3/min) | ≥0.8 |
| Power supply | 380V 50HZ 16.5KW |
| Wrapper Specification (mm) | PVC For Medicine320*(0.15-0.5) |
|
PTP Aluminum Foil 320*(0.02-0.035) |
|
| Overall Dimensions (mm) | 5800*850*1800 |
| Weight (Kg) | 2400 |
Competitive Advantage:
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
