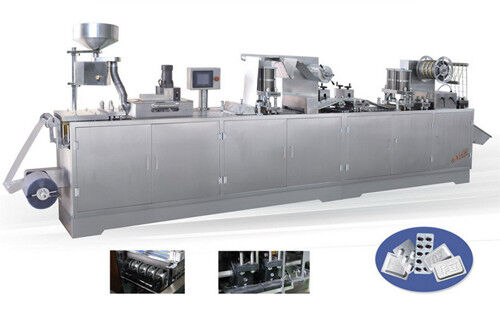

Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet

Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet

    • Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet
    • Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet
    • Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet
  • Automated Cold Forming Aluminum Foil Blister Packing Machine for Capsule / Tablet

    Product Details:

    Place of Origin: China
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: DPP-320

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets
    Contact Now
    Detailed Product Description



    Automated Capsule And Tablet Cold Forming Aluminum Foil Blister Packing Machine





    Quick Detail:



    Capacity: 75000 -9000 Sheets per hour

    Material: Stainless steel 304

    Model No.: DPP-320F

    Sheet's quantity of one blanking:5-6 sheets

    Blanking frequency:5-25 Cutting/min

    Power Supply: 380V 50HZ Three Phase

    Certificate: CE Certificate





    Description:



    1. Travel scope can be adjusted.

    2. Alu Alu Blister Packaging is available for this machine.

    3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

    4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

    5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

    6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

    7. Stepping motor Pulling Material more accuracy and easy adjusting

    8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.



    Applications:



    The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.





    Specifications:



    Model 320F
    Blanking Frequency(times/min) 5-25
    Sheet’s Quantity of One Blanking(sheets) 5-6
    Capacity(sheets/hour) 7500-9000
    Adjustable Scope of Feed Travel(mm) 40-150
    Max Forming Area and Depth (mm) 320*130*15
    Capacity of Air Compressor(m3/min) ≥0.8
    Power supply 380V 50HZ 16.5KW
    Wrapper Specification (mm) PVC For Medicine 320*(0.15-0.5)
    PTP Aluminum Foil 320*(0.02-0.035)
    Overall Dimensions (mm) 5800*850*1800
    Weight (Kg) 2400





    Competitive Advantage:

    1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

    2. We have 24hours hot line for Technical Support.

    3. We get 18hours internet line for technical support.

    4. Video camera in workshop to help you adjust and solve machine problem in working situation.

    5. We have Technical Support in below Foreign Cities:

    California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
