380V 50HZ PLC Controlled Automatic Capsule Filling Machine With SEW Main Motor
|Place of Origin:||china|
|Brand Name:||LTPM CHINA|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden Case|
|Delivery Time:||In 25 days after receiving the deposit|
|Payment Terms:||30% TT as deposit and 70% before shipping|
|Supply Ability:||25 sets/Month|
capsule filler machine,
automatic capsule filler

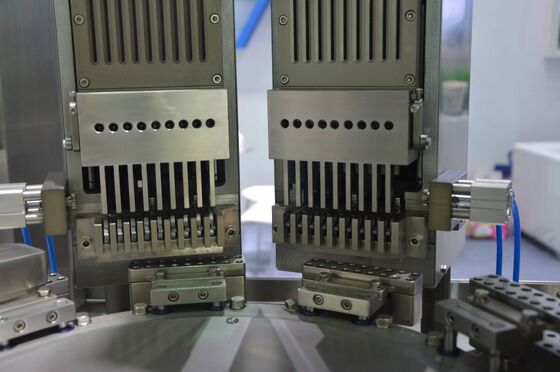

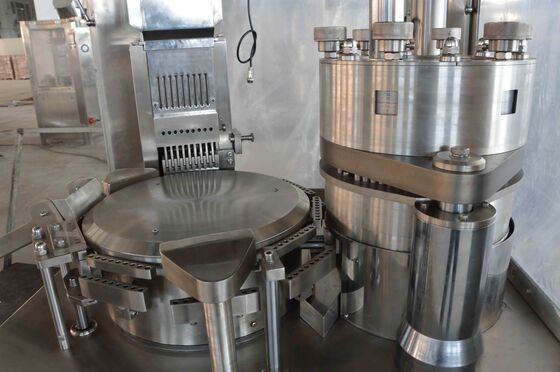

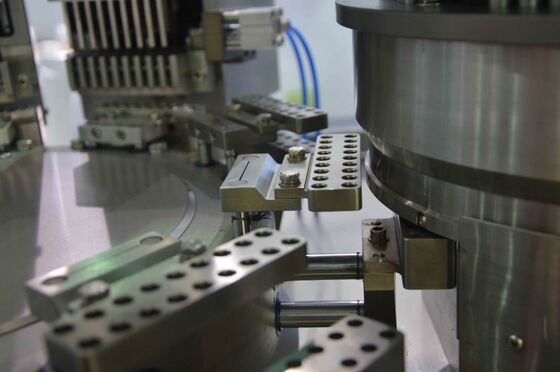

PLC Controlled Automatic Capsule Filling Machine With SEW Main Motor
Machine suitable for:capsule Size #00 to 5
Model No.: NJP-800
Capacity: 800 Capsules/minute
Material: Stainless steel 304
Machine suit for:capsule size 00#-5#
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate
1.It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2.The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3.It adopts enlarged Cam, LTPM CHINA has become the one who matches the cam of RU100 to Ru83, while it enhances the stability of the machines and extends the life of the machines to a great extent.
4.It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
5.Adopt Plane Spring for filling powder, this type spring can afford TWO BILLION TIMES Pressing, but never changed overall dimension. So it makes the Weight of Powder filling in an accuracy number.
6.Automatic Capsule Switch operated by Touch Screen avoid Dangerous Accident happens when open the switch by hand into the working station.
8.The multi-bore dosing brings a precision dosage (it is controlled around ±0.75%); the good capsule applicability makes a higher capsule qualified rate (≧99%).It can be filled with the Chinese traditional medicine and the Western medicine.
9.Add the extra function of capsule control switch. (Control the capsule outside of the machine; it is more safely and quickly).
10.Add the click-moving control system, makes an easier operation and clearness.
NJP-200/400/800/1000/1200 adopt PLC control system, human-machine interface, when running malfunction or lack of stuff, automatic alarm, malfunction display, automatic dismiss alarm. And with functions of password setup, touching screen display, automatic parameter setup, data printing, reset, etc.
The jump-start axed, cam and other main damageable parts all adopt imported materials. And the machine is suitable for Powder, Granular and Pellet filling, one hour for 12,000/24,000capsules, special for Capsule size from00# to 5#.
|Machine suitable for:||capsule Size #00 to 5|
415v 50Hz three phase
(it can be changed depend on your requirement)
|Quantity of mould bores:||9pcs|
|Overall dimension:||700×800×1700mm mm|
1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahor
