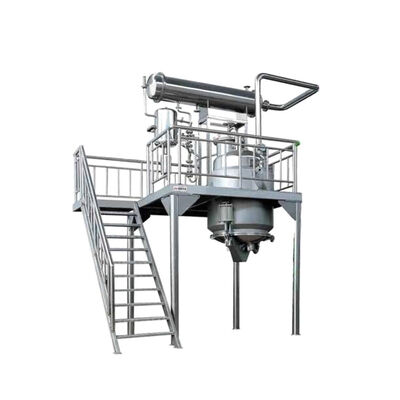

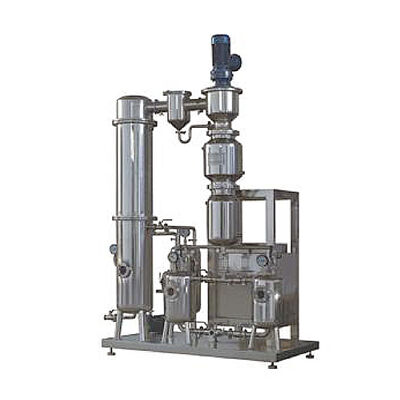

LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line

LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line

concentration machine

liquid extraction equipment

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

LTN-Series

Contact Us

Request A Quote
Product Details
Power Of Vacuum Pump:
12kw
Concentrate Density (%):
1.2-1.35
The Volume Of Extracting:
6000L
Raw Material Input Capacity (kg):
600-800
Capacity Of Concentrating Evaporator:
1500kg/hour
The Time Of Extraction (h):
0.6-4h
Product Description

LTN Series Hemp Oil Extraction And Concentration Equipment,

Hemp Oil Extractor




Performance and characteristic:

    Traditional Chinese medicine hot backset current low temperature draw low temperature concentrate unit comprehensive backset current, ooze and filter drawing, adverse current and hot backset current extraction and concentrate four kinds of principles. abstraction, concentrate two processes go on at the same time, one finish traditional medicine draw, concentrate the new craft of traditional Chinese medicine, take to change the draw pot keep high temperature with atmosphere fry the craft of boiling, utilize vacuum to shoulder proceed low temperature draw and low temperature concentrate, make working temperature to draw pot control in 60-80°C, concentrate temperature control in 50-70°C, guarantee crude drugs effective composition the distillation loss.

    Meanwhile draw and concentrate produced two steam enter backset current condenser become hot condensation liquid, falling back to and drawing it the pots, add to the crude drugs as the new solvent, the new solvent is passed the crude drugs layer from top to bottom, having played a oozing and filtering dynamically role, the soluble material which dissolves the crude drugs reaches the draw pot bottom, enter the concentrating device to concentrate again.

    According to practical experience and study for many years, hot condensation liquid of backset current invite within 2.5-3 hours drawing former solvent of pot all change once, can keep a higher density to the draw pot crude drugs in unit time.



Hempseed oil

  1. The appearance and characteristics are very close to the low iodine value of linseed oil, but slightly greenish.
  2. The approximate fatty acid composition is: 10.1% saturated acid, 16% oleic acid, 46% linoleic acid, and 28% linolenic acid.
  3. The acid value is 3 mg KOH/g, the iodine value is 149-167, and the relative density is 0.925-0.933 (15/15 ° C). The freezing point is about 16 °C.
  4. The main ingredients are glycerides of linoleic acid, linolenic acid and oleic acid.
  5. Used in industries such as paints and soaps.




Installation Drawing

Extraction and Concentration.jpg



Workshop

LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line 3LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line 4






Finished Product crude oil:

LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line 7LTN Series Hemp Oil Extraction And Concentration Equipment,hemp oil extractor, CBD crude oil production line 8
