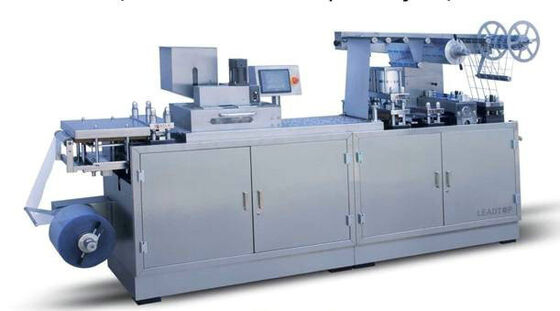

PLC Controlled Multifunction Blister Packing Machine For Aluminum Plastic Blister Packaging

PLC Controlled Multifunction Blister Packing Machine For Aluminum Plastic Blister Packaging

automatic blister packing machine

tablet blister packing machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE

Model Number:

DPP-250

Contact Us

Request A Quote
Product Details
Product Description



PLC Controlled Multifunction Blister Packing Machine For Aluminum Plastic Blister Packaging





Quick Detail:



Material: Stainless steel 304

Blanking frequency:15-50 Cutting/min

Capacity of air compressor:≥0.36 m3/min

Model No.: DPP-250F

Capacity: 12000 Sheets per hour

Power Supply: 380V 50HZ Three Phase

Certificate: CE Certificate





Description:



1. Travel scope can be adjusted.

2. Alu Alu Blister Packaging is available for this machine.

3. Mould is located by locating groove which makes it easy to change mould. The machine heats the PVC through conduction and forms it through pressing and frothing.

4. The material is fed automatically. The mould and feeder can be designed as user’s requirements.

5. Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller, it can synchronize accurately.

6. Adopt the equipment of trace pressing, batch number printing and scarp-collecting.

7. Stepping motor Pulling Material more accuracy and easy adjusting

8. The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.





Applications:



The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in large & medium pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce large quality and single product.





Specifications:



MODEL: DPP-250
Blanking frequency (Cutting/min): 15-50
Sheet's quantity of one blanking (sheets): 1-4
Capacity (sheets/hour): 12,000
Adjustable scope of feed travel: (mm) 10-160
Max Forming area and depth (mm) 270×120×25
Capacity of air compressor(m3/min): ≥0.36
Power supply: 380V AC, 50 Hz, Three Phase
Total Power 8Kw

Wrapper specification (mm): PVC Film

Blister foil

Alu Alu Foil

Max.270× (0.15-0.5)

Max.270× (0.02-0.035)

Max. 270*(0.11-0.25)

Weight (kg): 1260Kg





Competitive Advantage:



1. we have seven technicians who gets passport ready to travel all over world to offer service to you.

2. We have 24hours hot line for Technical Support.

3. We get 18hours internet line for technical support.

4. Video camera in workshop to help you adjust and solve machine problem in working situation.

5. We have Technical Support in below Foreign Cities:

California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Laho(Distributor)
