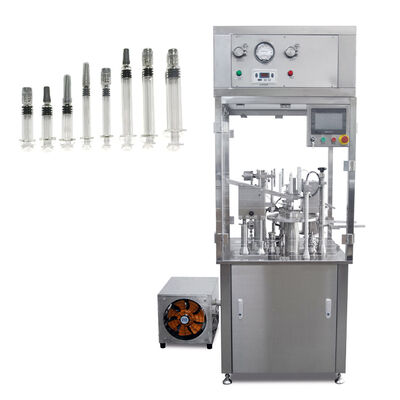

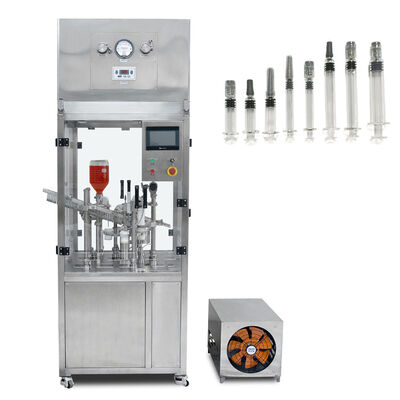

Name: High Speed Filling Plugging Machine Pre - Fill Syringes
Brand: LTPM CHINA
SKU: PFS-1、PFS-1Pro
Rating: 5 (158 reviews)

Home > products > Syringe Filling Machine >

High Speed Filling Plugging Machine Pre - Fill Syringes

High Speed Syringe Filling machine

Pre Fill Syringes Filling Machine

Syringe Filling Plugging Machine

Place of Origin:

Zhejiang,China

Brand Name:

LTPM CHINA

Certification:

Model Number:

PFS-1、PFS-1Pro

Request A Quote

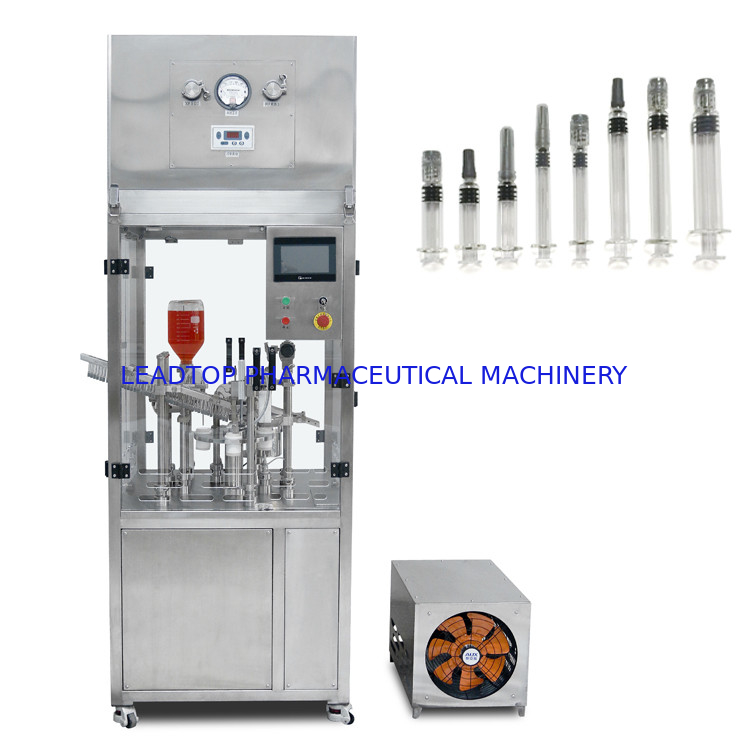

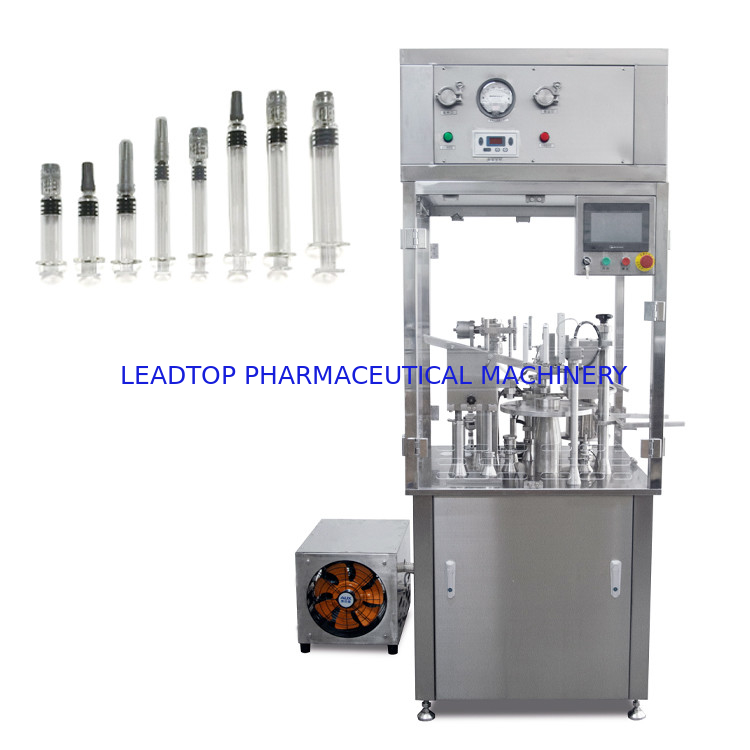

High Speed Filling Plugging Machine Pre - Fill Syringes

Product Details

Applicable Materials:

Liquid And Ointment

Compressed Air:

0.55-0.75Mpa 15L/S

Total Power:

2KW

Number Of Filling Heads:

Weight (KG):

300

Dimension(L*W*H):

L808*W758*H1760mm

PLC Controlled Syringe Filling Machine Power Consumption 5KW Filling Accuracy ≤±1-2%

Get Best Price

PLC Control System Syringe Filling Machine With Liquid Filling Syringe

Get Best Price

Powerful Filling Capability Syringe Filling Machine 0-170 Units/Min 220V/50Hz

Get Best Price

Efficient Syringe Filling Machine For Liquid And Ointment Reliable With 5 Years

Get Best Price

86-0577-65158955

info@chinaleadtop.com

86-0577-65158944

Contact Now

Product Description

High Speed Filling Plugging Machine Pre - Fill Syringes 0

Technical Parameters

Mode	PFS-1Pro	PFS-1
Applicable Materials	Liquid and ointment	Liquid and ointment
Applicable Syringe Specifications	0.5,1,2.25,3,5,10ML	0.5,1,2.25,3,5,10ML
Number of Filling Heads	1	1
Number of Capping Heads	1	1
Filling Accuracy	≤±1-2%	≤±1-2%
Production Capacity	420-720 p/h	600-720 p/h
Total Power	2KW	2KW
Voltage	380V/220V 50-60Hz	380V/220V 50-60Hz
Compressed Air	0.55-0.75Mpa 15L/S	0.55-0.75Mpa 15L/S
Dimensions	L808×W758×H1760mm	L808×W758×H1760mm
Equipment Weight	300KG	300KG

Features

A variety of filling doses and filling methods are available, and a variety of material front-end functions are optional.

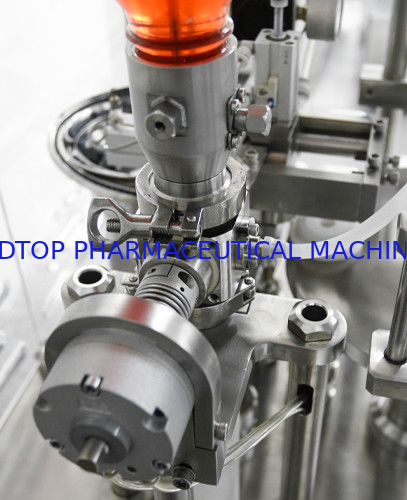

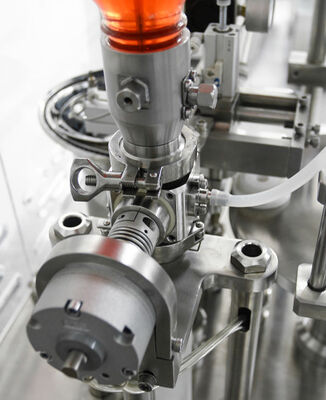

The injection needle is used for filling with the liquid level rising to prevent splashing of liquid medicine.
The vacuum filling system is suitable for viscous materials to ensure that the liquid medicine fills the filling space without bubbles or faults, and improves the qualified rate of finished products.
The vacuum stopper system avoids particles generated by the vibration and friction of the rubber stopper, and ensures that the rubber stopper is in close contact with the liquid surface.
Modular design, easy to locate, easy to expand, can be used as a stand-alone machine, can also be connected to the nesting machine, rotating rod machine, labeling machine, light inspection machine and other equipment to form a production line.
Optional hundred-level laminar flow hood to achieve high-demand clean production.

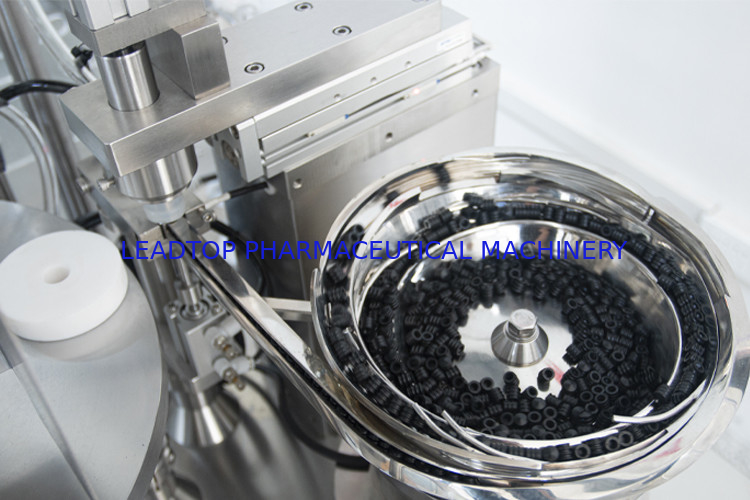

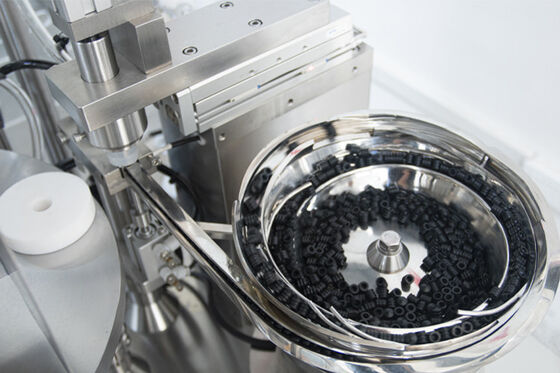

Plugging Station

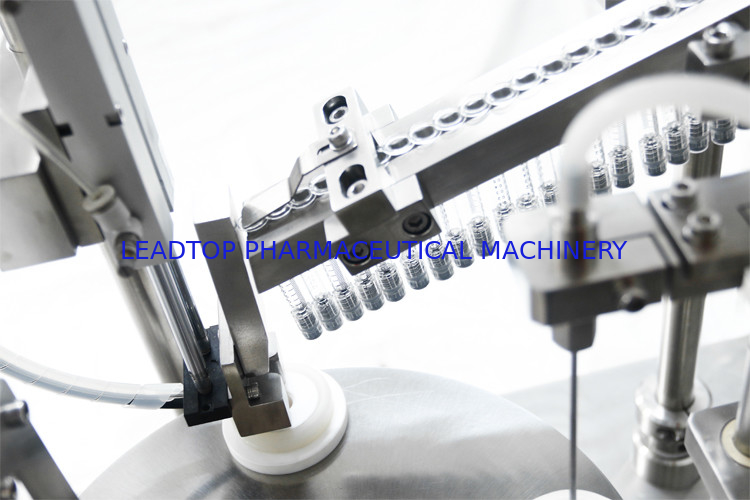

Sorting out the plugs from vibrating tray,through the loading plug tunnel,sucking the plug on the plugging station, then vacuum pressed plugging.
Output Station
Automatic output finish product.
