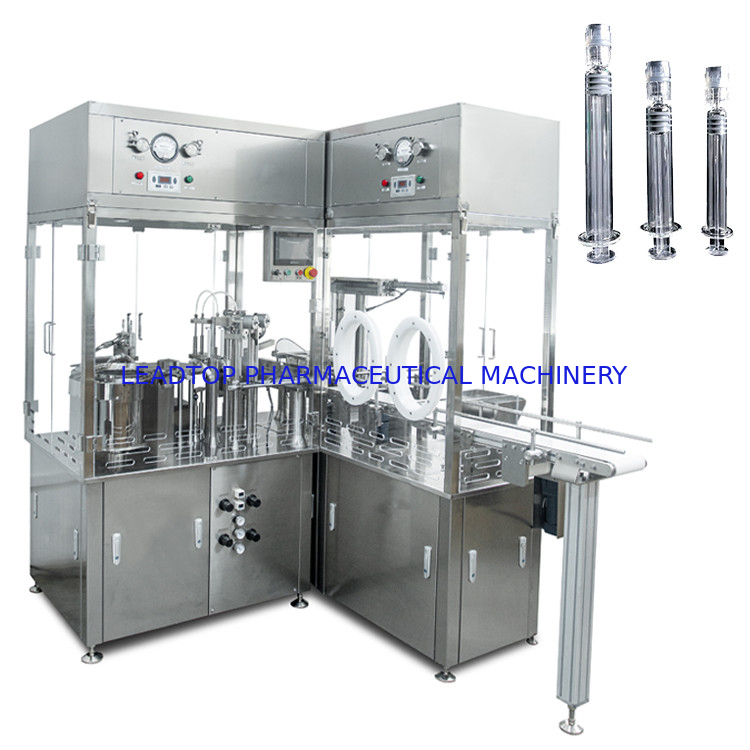

PFS - 2 Glass Syringe Filling Plugging Machine Aseptic Filling Equipment Automatic

PFS - 2 Glass Syringe Filling Plugging Machine Aseptic Filling Equipment Automatic

Product Details:

Place of Origin: Zhejiang,China
Brand Name: LTPM CHINA
Certification: CE
Model Number: PFS-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15Sets per mouth
Get Best Price Contact Now

Detail Information

Applicable Materials: Liquid And Ointment Automatic Grade: Automatic
Applicable Syringe Specifications: 0.5,1,2.25,3,5,10,20ml Number Of Filling Heads: 2
Number Of Capping Heads: 2 Dimensions: L1088*W858*H1800mm
High Light:

Automatic Syringe Filler

,

Glass Syringe Filling Plugging Machine

,

Aseptic Syringe Filling Equipment

Product Description

This product is specially designed by our company for the filling of prefilled syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is easy to operate, and is equipped with intelligent detection devices. It has high automation, high work efficiency and easy maintenance. It is an ideal equipment for filling and plugging prefilled syringes.

Technical Parameters

Applicable materials
Liquid and ointment
Applicable syringe specifications
0.5-80ml
Filling accuracy
≤±1-2%
Number of injection needles
1 needle
Production capacity
2400-2700 p/h
Total power
3KW
Voltage
380V/220V 50-60Hz
Compressed air
0.55-0.75Mpa 15L/S
Dimensions
L1230×W850×H1800mm
Equipment weight
500KG



Features

1.A variety of filling doses and filling methods are available, and a variety of material front-end functions are optional.

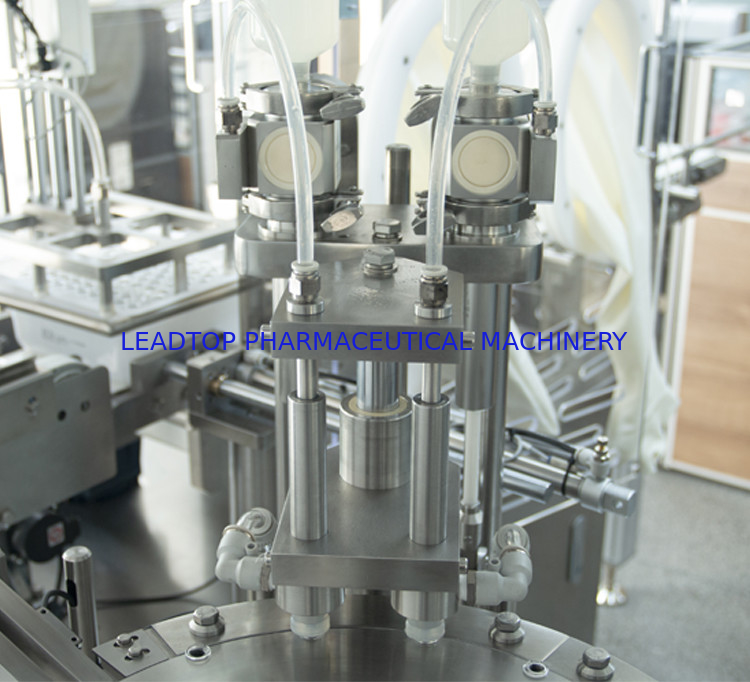

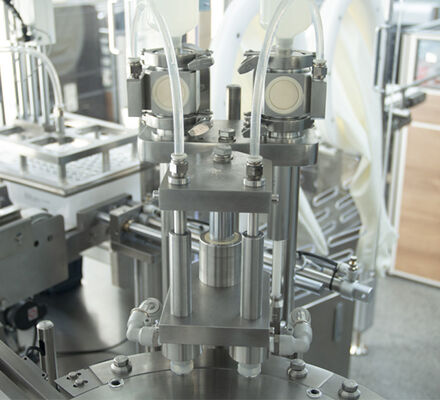

2.The injection needle is used for filling with the liquid level rising to prevent splashing of liquid medicine.
3.The vacuum filling system is suitable for viscous materials to ensure that the liquid medicine fills the filling space without bubbles or faults, and improves the qualified rate of finished products.
4.The vacuum stopper system avoids particles generated by the vibration and friction of the rubber stopper, and ensures that the rubber stopper is in close contact with the liquid surface.
5.Modular design, easy to locate, easy to expand, can be used as a stand-alone machine, can also be connected to the nesting machine, rotating rod machine, labeling machine, light inspection machine and other equipment to form a production line.
6.Optional hundred-level laminar flow hood to achieve high-demand clean production.

PFS - 2 Glass Syringe Filling Plugging Machine Aseptic Filling Equipment Automatic 0

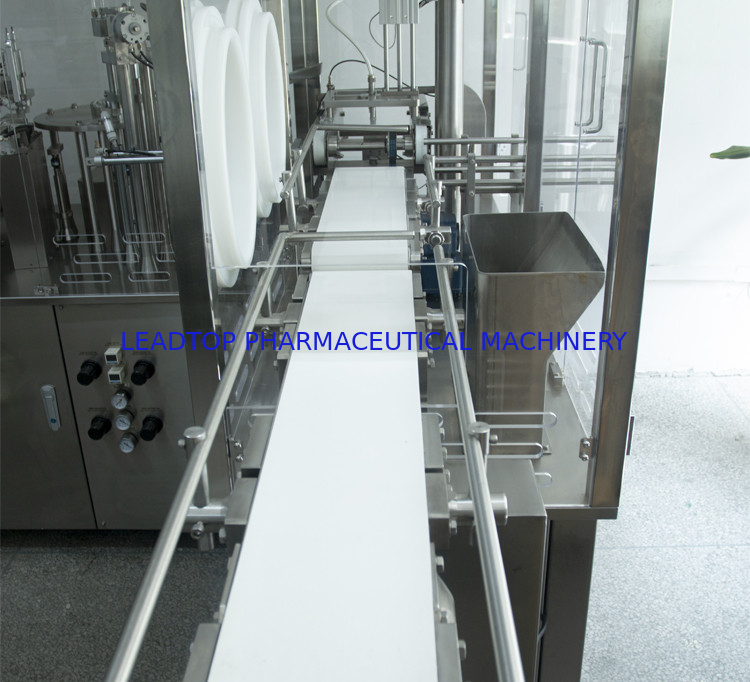

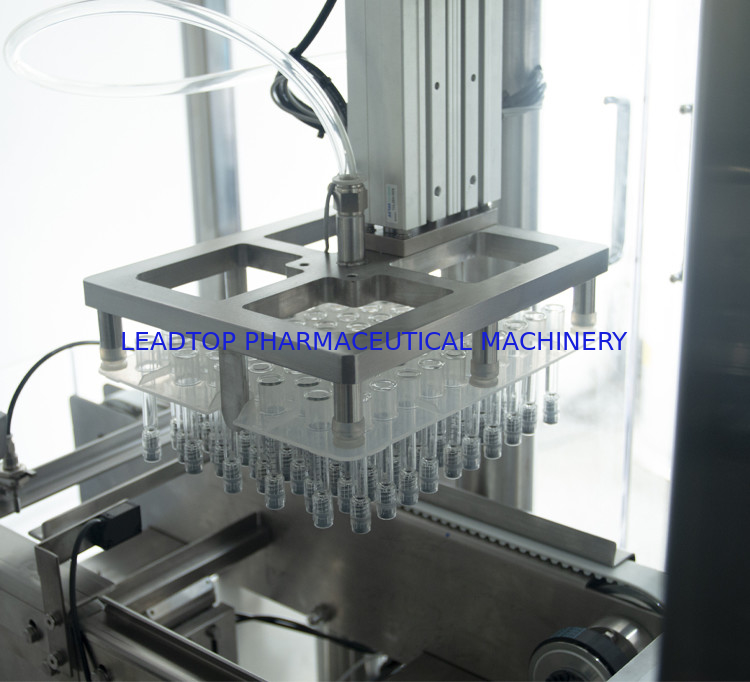

Auto loading conveyor
Just place the full box of syringes in the conveyor to save labor.
PFS - 2 Glass Syringe Filling Plugging Machine Aseptic Filling Equipment Automatic 1

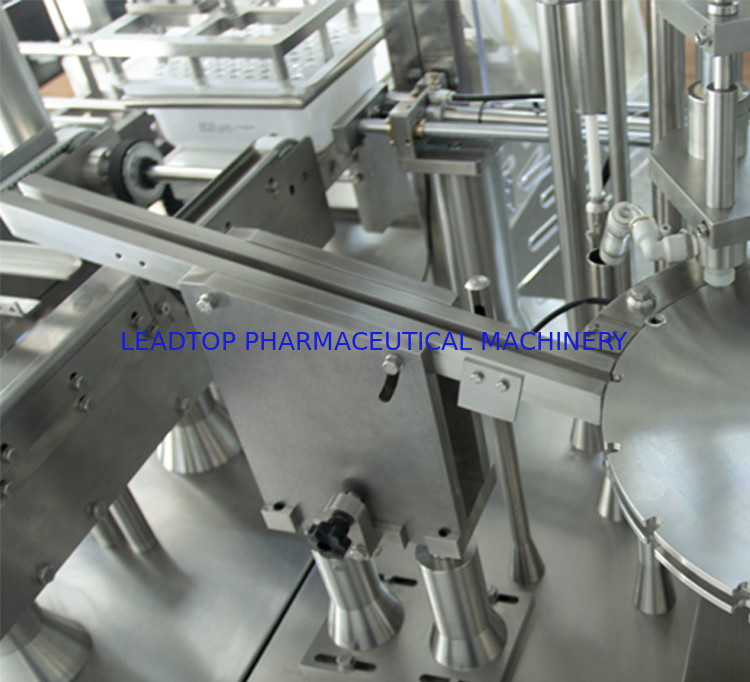

Slide enter
Automatically enter the filling dial row by row from the slide. The dial rotates intermittently and feeds at a time. Insert a syringe into the dial wheel and turn it to the corresponding work station.
PFS - 2 Glass Syringe Filling Plugging Machine Aseptic Filling Equipment Automatic 2

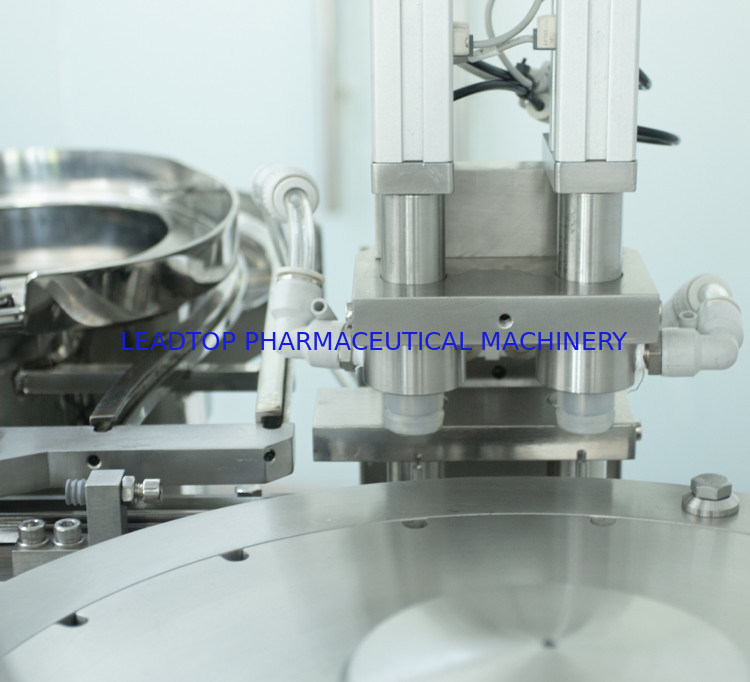

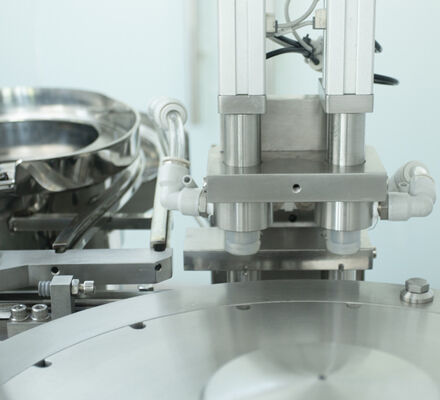

Vacuum stoppering of the syringe
The rubber stopper is arranged by the oscillator.A stopper rod first takes the rubber stopper on the stopper rod On the upper side, the stopper rod is integrated with a vacuum body, and at the same time, the syringe is pressed down to seal and vacuum, and then the stopper rod is added to the liquid level of the syringe.
