Automatic Syringe Sealing Filling Machine 220V Sterile For Ointment

Brand Name:	LTPM CHINA
Model Number:	SryPlas-2
MOQ:	1 Set/Sets
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15Sets per mouth

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

Applicable Materials:

Liquid And Ointment

Automatic Grade:

Automatic

Voltage:

380V/220V 50-60Hz

Production Capacity:

1800-2700 P/h

Weight (KG):

500

Number Of Injection Needles:

1 Needle

Packaging Details:

wooden

Supply Ability:

15Sets per mouth

Highlight:

Automatic Sterile Syringe Filling Machine

220V Syringe Filling Machine

Syringe Filling Machine For Ointment

Product Description

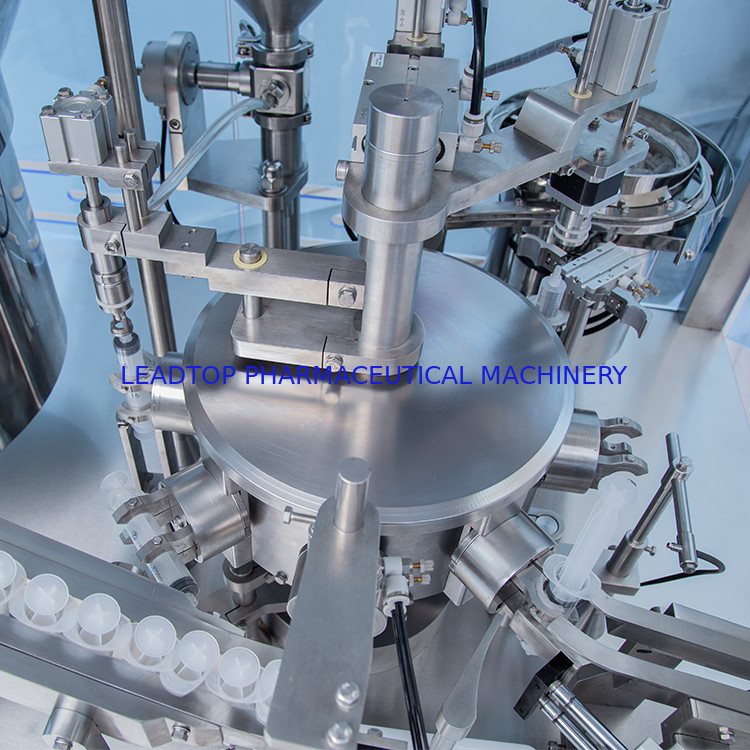

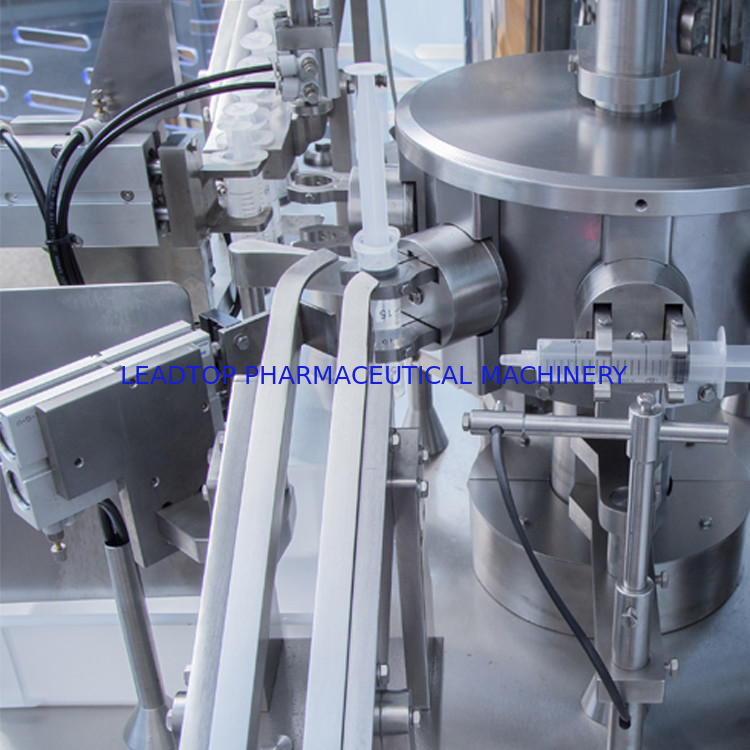

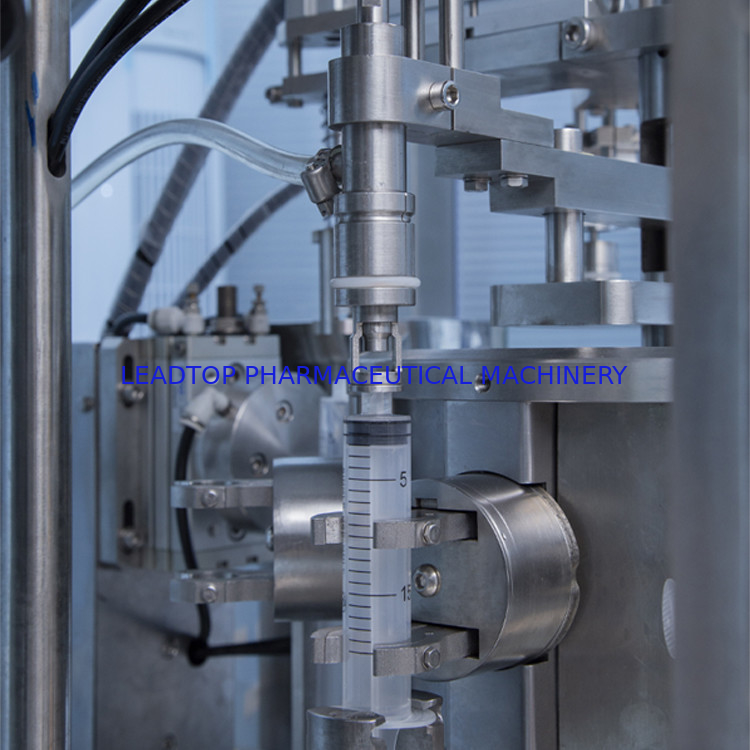

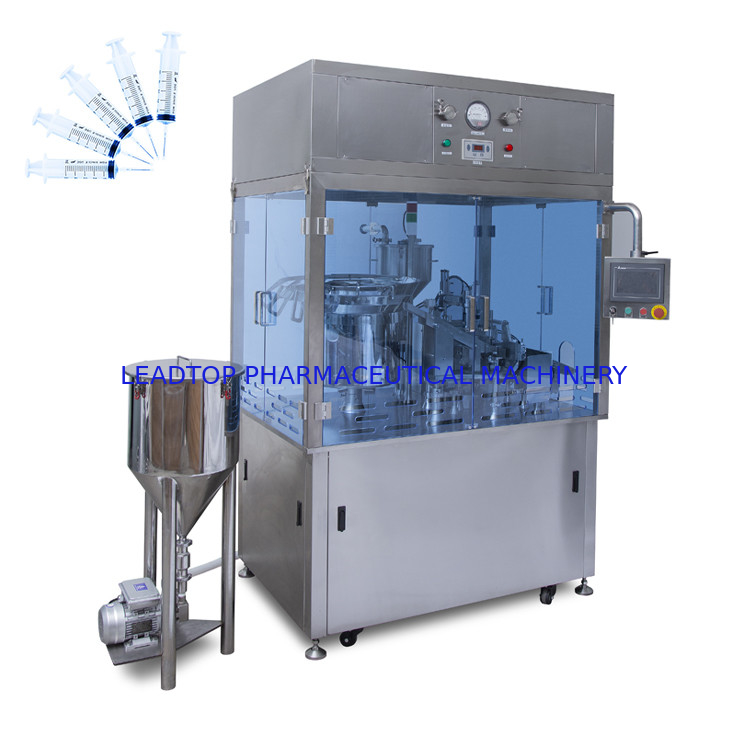

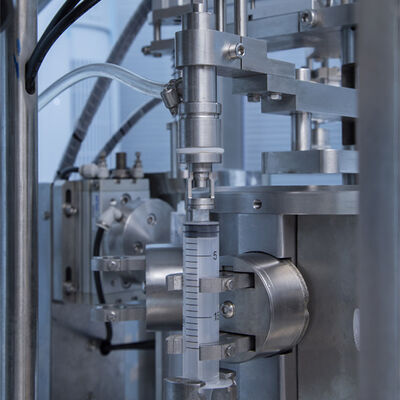

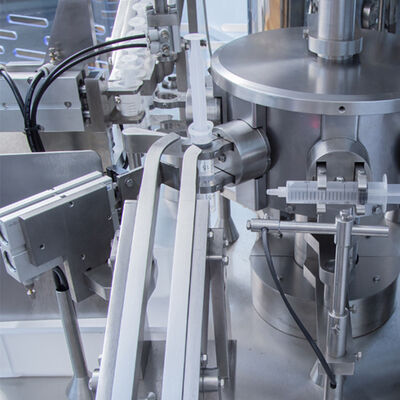

Automatic Syringe Sealing Filling Machine 220V Sterile For Ointment 0

Technical Parameters

Applicable materials	Liquid and ointment
Applicable syringe specifications	0.5-80ml
Filling accuracy	≤±1-2%
Number of injection needles	1 needle
Production capacity	2400-2700 p/h
Total power	3KW
Voltage	380V/220V 50-60Hz
Compressed air	0.55-0.75Mpa 15L/S
Dimensions	L1230×W850×H1800mm
Equipment weight	500KG

Features

1.This product is widely used for filling and capping of various types of plastic syringes, and special types can be customized.

2.The surface is made of SUS 304 stainless steel, and the contact parts are made of SUS 316L stainless steel and medical silicon rubber, which fully meets the requirements of GMP specifications.

3.The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.

4.The conveying and sorting of the cover is realized by the vibrating plate, which adopts the SUS 316L stainless steel clean plate, which has a bright surface treatment and no clean dead corners.

5.Adopting internationally well-known electrical components, implementing non-interference modular control, all synchronous actions are controlled by servo motors, which are accurate and reliable, and easy to operate.

6.The operation of the motor is controlled by the PLC programming controller, and the human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.

7.Fully automatic operation, automatic filling, automatic capping, and automatic capping.

8.The method of filling the syringe head can eliminate the air inside the syringe to the greatest extent and improve the qualification rate.

9.Modular design, easy to locate, easy to expand, can be used as a stand-alone machine or connected to hoist, assembly machine, rotary rod machine, labeling machine and other equipment to form a production line.

10.Optional 100-level laminar flow hood to achieve high-demand clean production.

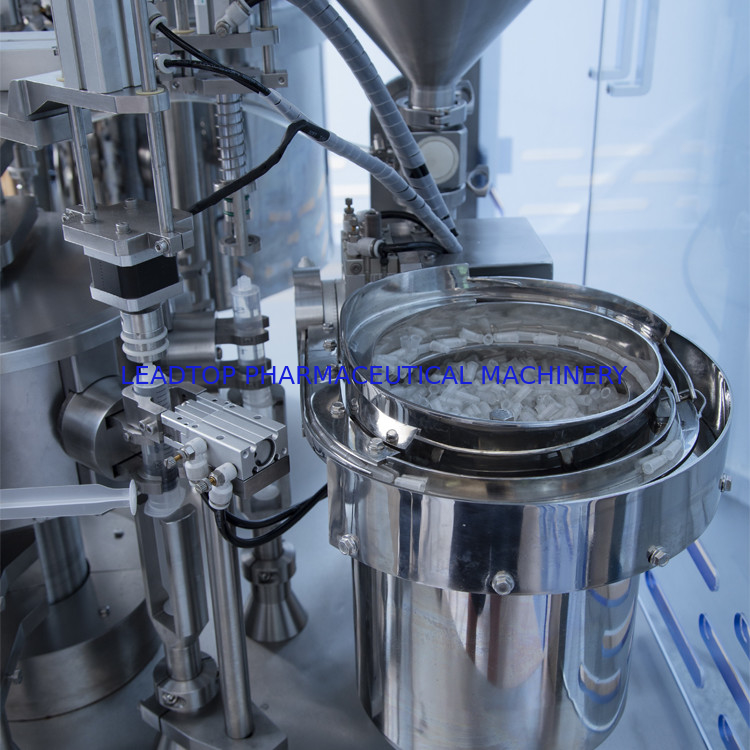

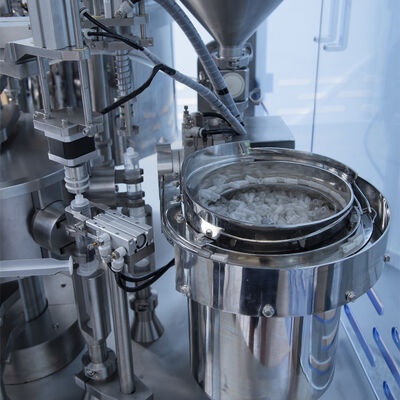

Arrange and Feeding Caps
Automatic Arranging thelids by vibrating disk(customby the dimension of your syringe).

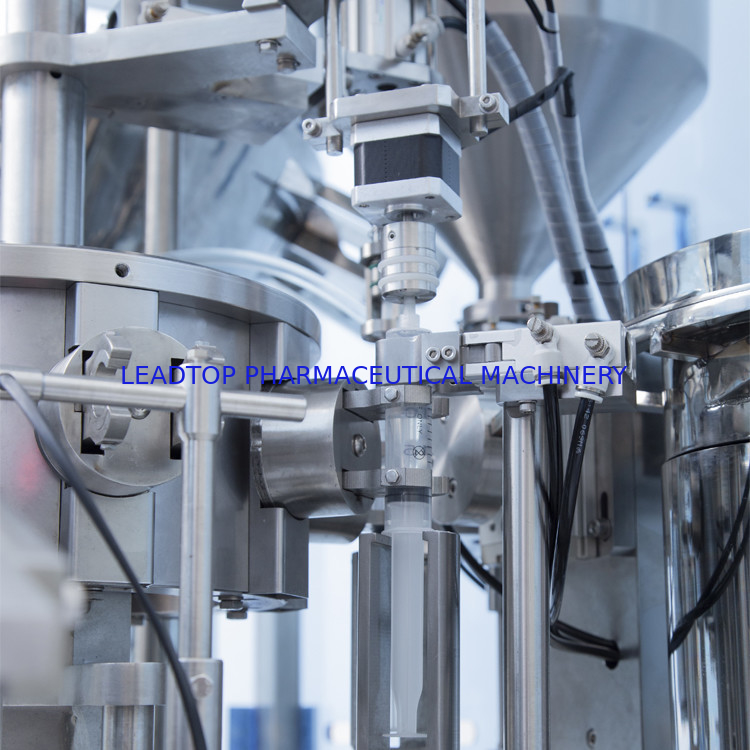

Capping Station
Automatic capping the lid on syringe.
Output Station
Automatic output finish product.
