Automatic Pre Sterilized Glass Filling Machine Vaccine Plugging Prefilled Gel Syringe

Brand Name:	LTPM CHINA
Model Number:	SryPlas-4
MOQ:	1 Set/Sets
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15Sets per mouth

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

Applicable Materials:

Liquid And Ointment

Automatic Grade:

Automatic

Voltage:

380V/220V 50-60Hz

Compressed Air:

0.55-0.75Mpa 15L/S

Applicable Syringe Specifications:

0.5-80ml

Total Power:

3 KW

Packaging Details:

wooden

Supply Ability:

15Sets per mouth

Highlight:

Pre-Sterilized Syringe Filling Machine

Vaccine Plugging Syringe Filling Machine

Prefilled Gel Syringe Filling Machine

Product Description

This product is specially designed by our company for the filling of plastic syringes. It is an automatic packaging equipment for aseptic and efficient filling of syringes. The equipment runs smoothly, is simple to operate, and is equipped with intelligent detection devices, with high automation, high work efficiency, convenient maintenance, and the technology can reach the current domestic industry advanced level.

Automatic Pre Sterilized Glass Filling Machine Vaccine Plugging Prefilled Gel Syringe 0

Features

1.This product is widely used for filling and capping of various types of plastic syringes, and special types can be customized.

2.The surface is made of SUS 304 stainless steel, and the contact parts are made of SUS 316L stainless steel and medical silicon rubber, which fully meets the requirements of GMP specifications.

3.The ceramic plunger pump realizes quantitative filling, is resistant to acid and alkali corrosion, wear-resisting and high temperature, and has high filling accuracy.

4.The conveying and sorting of the caps is realized by the vibratory feeder, which adopts the SUS 316L stainless steel clean plate, which has a bright surface treatment and no clean dead corners.

5.Adopting internationally well-known electrical components, implementing non-interference modular control, all synchronous actions are controlled by servo motors, which are accurate and reliable, and easy to operate.

6.The operation of the motor is controlled by the PLC programming controller, and the human-computer interaction interface monitors and displays the working status of each station in real time, and automatically alarms and displays the fault location in real time, and the fault prompts.

7.Fully automatic operation, automatic filling, automatic organizing and automatic capping.

8.The method of filling the syringe head can eliminate the air inside the syringe to the greatest extent and improve the qualification rate.

9.Modular design, easy to locate, easy to expand, can be used as a stand-alone machine or connected to hoist, assembly machine, rotary rod machine, labeling machine and other equipment to form a production line.

10.Optional 100-level laminar flow hood to achieve high-demand clean production.

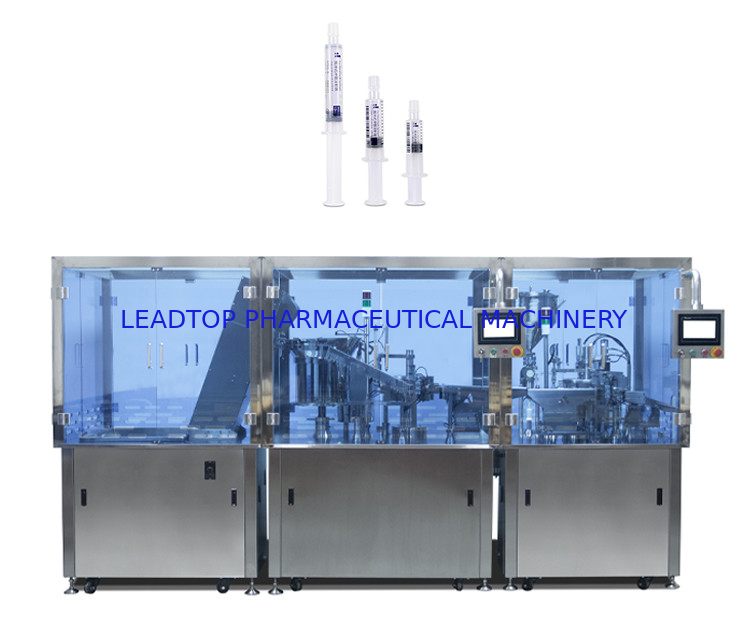

Filling Machine

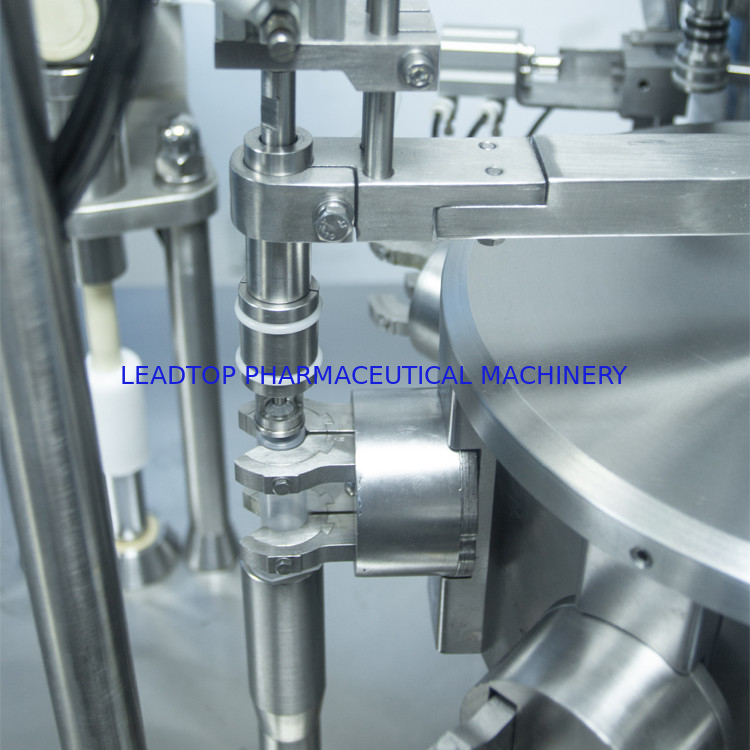

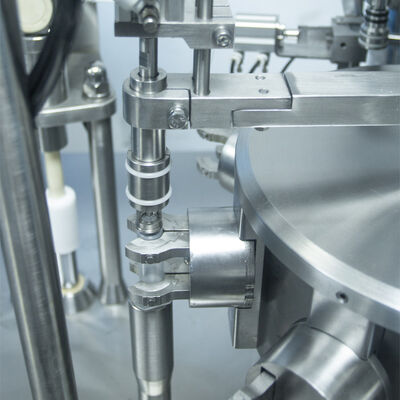

Filling Station
Controlled by the perlistaltic pump,high precision and easy clean.

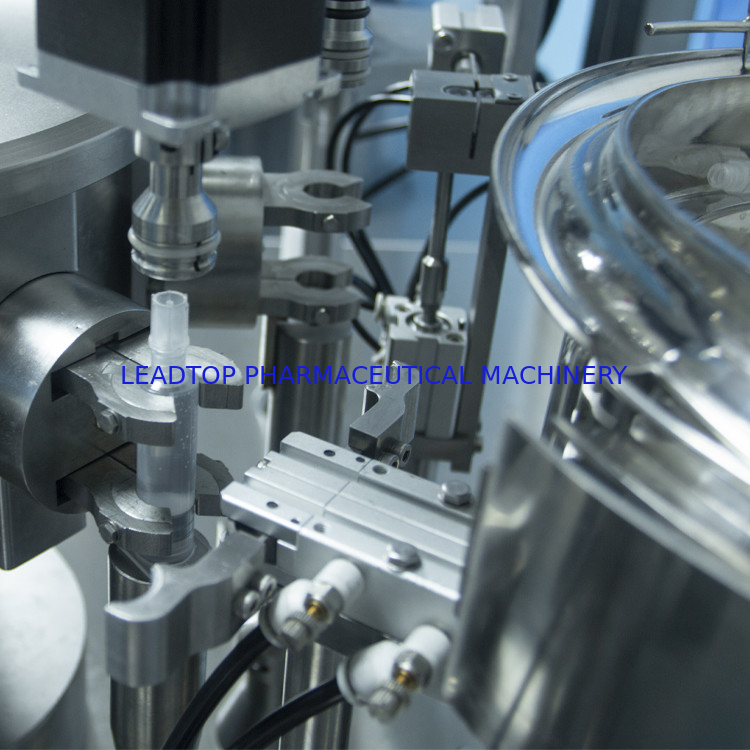

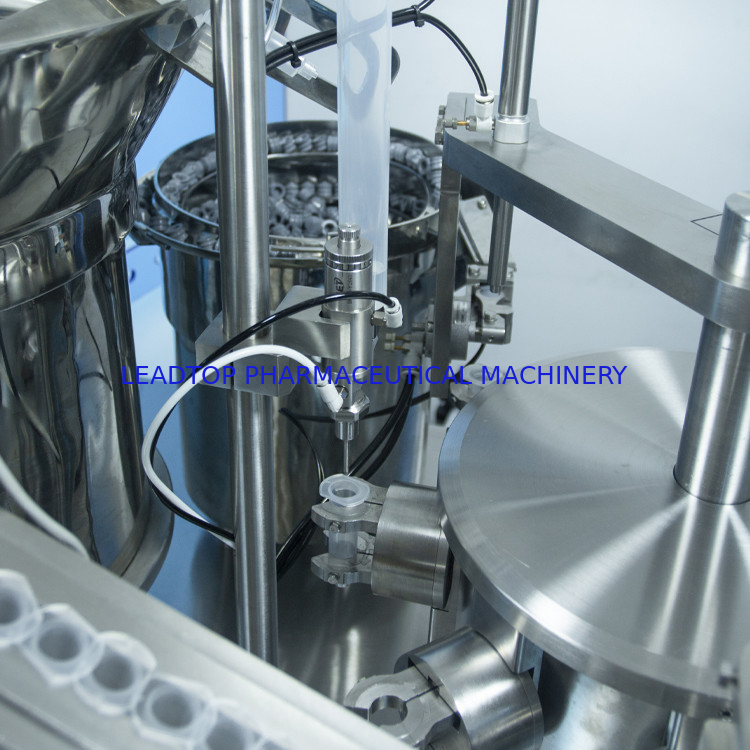

Capping Station
Automatic Arranging thelids by vibrating disk(customby the dimension of your syringe).Automatic capping the lid on syringe.
Output Station
Automatic output finish product.
Final Product
