Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine

Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine

Circulation Drying Oven Machine

tray dryer in pharmaceutical industry

Heat Forced Treat electric tray dryer

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

CTC Series

Contact Us

Request A Quote
Product Details
Drying Quantity Per Time (kg):
25-200
Power Of Blower Fan (kw):
0.45-1.1
Consumed Steam(L/min):
5-40
Drying Cart (pcs):
0-2
Drying Pan(pcs):
24-96
Machine Size (mm):
1550-2300*1000-2200*2044-2433
Upper And Lower Temp. Difference:
±2
Service Temperature:
Electrical Heating 50-350℃
Product Description

Our Industrial ovens are designed to heat up to 800 ℃ and are used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming. Industrial ovens are essentially heated boxes with insulated doors that process products one at a time or in groups (“batches”). The part(s) to be heated are brought into the oven in batches on racks, carts, or trucks. Production requirements can accommodate manual or automated loading.

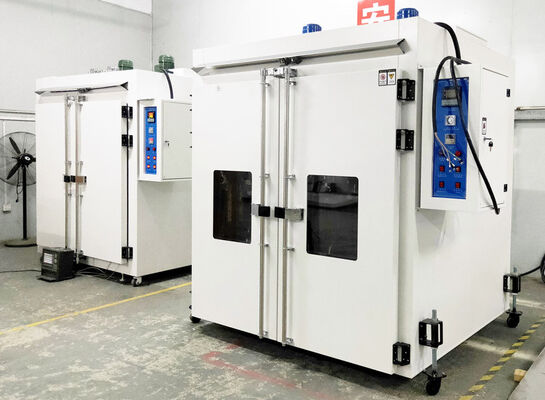

Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine 0

Main Features
1. Robust drying chamber: Welded structural steel framework for overall support.
2.Temperature uniformity: Typically the airflow within the heated chamber is designed with a recirculating horizontal cross-flow. They can also be equipped with a combination airflow pattern, top-down or bottom-up airflow pattern to guarantee temperature uniformity.
3. Energy saving: Most of the hot air circulates inside the well insulated oven. The amount of exhaust air is adjustable according to different heating applications.
4. Flexibility in heat source: Our batch ovens offer various heating methods, including gas, electric, infrared, and
radiantheating systems.
5. Flexibility in operation: Numerous flooring options are available such as recessed tracks to accommodate product carts, a steel plate floor, or an insulated floor without tracks. Doors can be designed to accommodate any requirement and range from simple horizontal swing doors to pneumatic or hydraulic vertical doors with manual or automatic operation.
6. Easy and accurate control: Simple digital controls for basic operation or PLC controls for complex requirements



Technical Data

Model & spec. Drying quantity per time (kg) Power of blower fan (kw) Consumed steam(L/min) Drying cart (pcs) Drying pan(pcs) Machine Size (mm) Upper and lower temp. difference
CTC-0 25 0.45 5 0 24 1550*1000*2044 ±2
CTC-1 100 1.1 20 2 48 2300*1200*2433 ±2
CTC-2 200 1.1 40 2 96 2300*2200*2433 ±2





Product Details

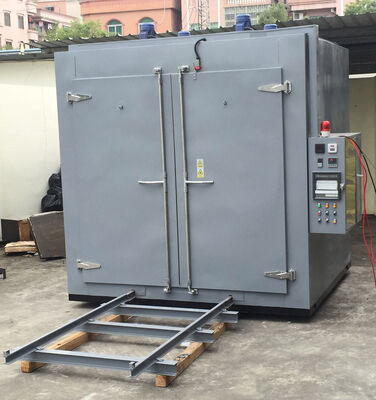

Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine 1
Machine Application

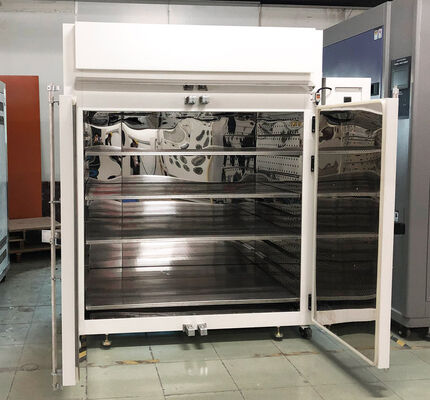

Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine 2


Packaging Details

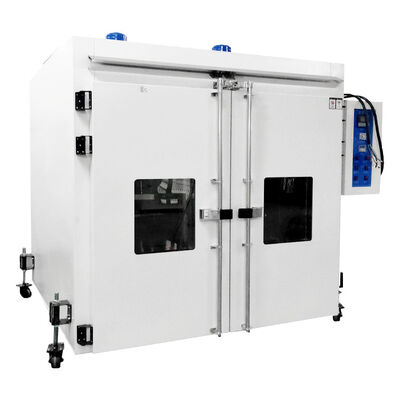

Big Industrial Heat Forced Treat Air Fruit Circulation Drying Oven Machine 3
