Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

Pharmaceutical Blister Packing Machine

,

Blister Packing Machine 2.2kw

,

Foodstuff Blister Packing Machine

Product Description

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control



This is new product designed for do sage room of hospital, medium-size and small-size pharmaceutical plant, health care product plant. DPB-Series Flat-Type Blister Packing Machine has small size of body, ease of operation, full purpose, stroke can be adjustable, long durability etc. Much performance. It also passed the provincial science and technology appraisal, obtained the second prize of science and technology progress by rear-service of RLA. It widely used in aluminum plastic pack for medicine, foodstuff, electron component etc.







Features:

1. Mould exchange: as a traditial 250 type of improved, mould and old type completely general, is old customer renewal of very good choice.
2. Die an installation and adjusfrnent: continue lathes type guide rail, use screw adjusting mode of poles, make cabinet protection design clever, can prenent drugs fall into the machine, it is mo re convenient to clean up.
3. Servo traction, set the more convenient, more easily to the cursor, PVC motor feeding, transmission more robust.
4. Can be divided structure, convenient transport elevator, gassing axis with PVC, aluminum foil, high-end better use.

Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

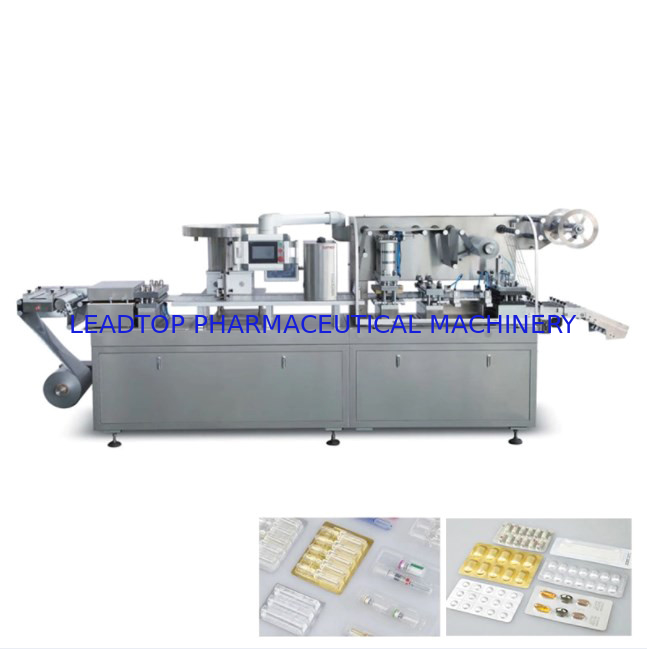

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 0









Machine Details:

1) Quick PVC foil cutting and supply

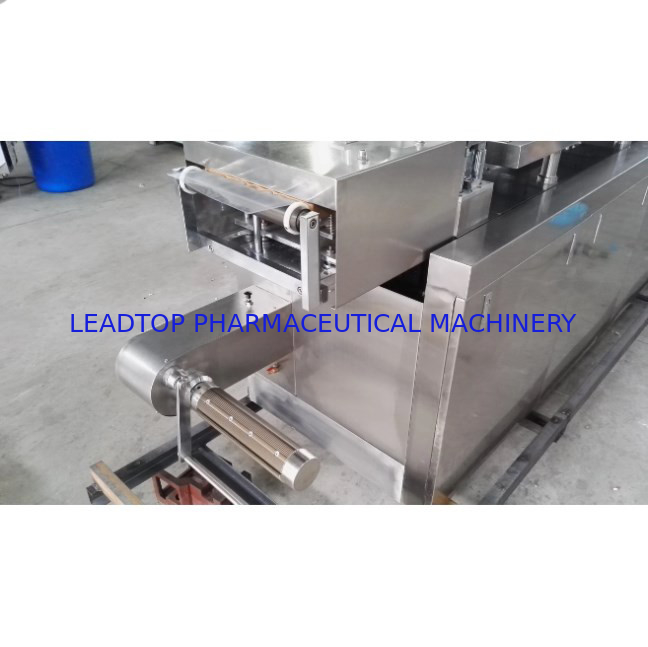

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 1



2) Heating and Forming station

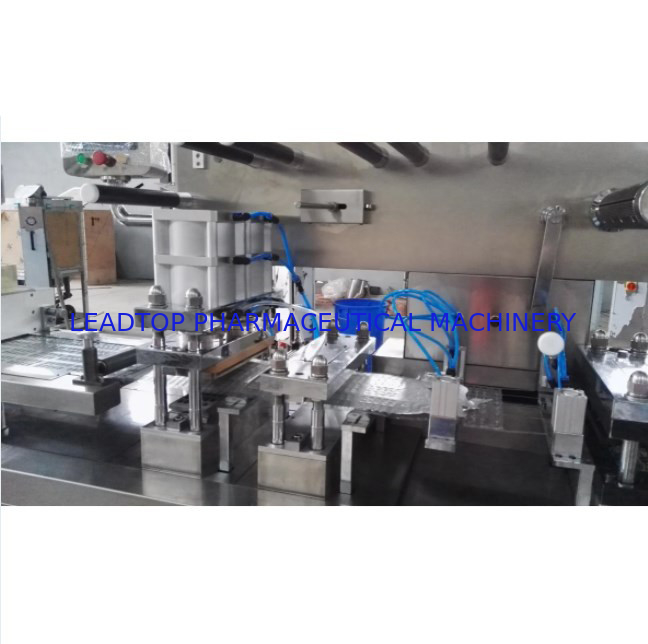

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 2



3) Product automatic brush feeder

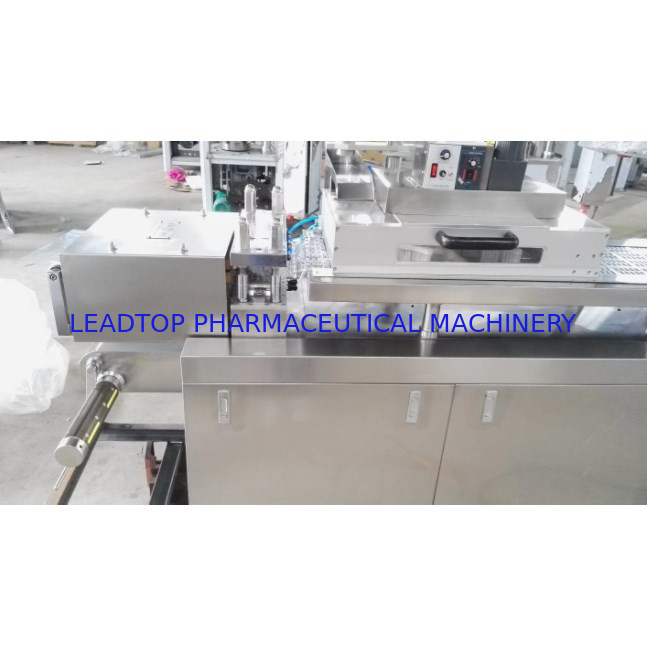

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 3



4) Heating and Sealing station

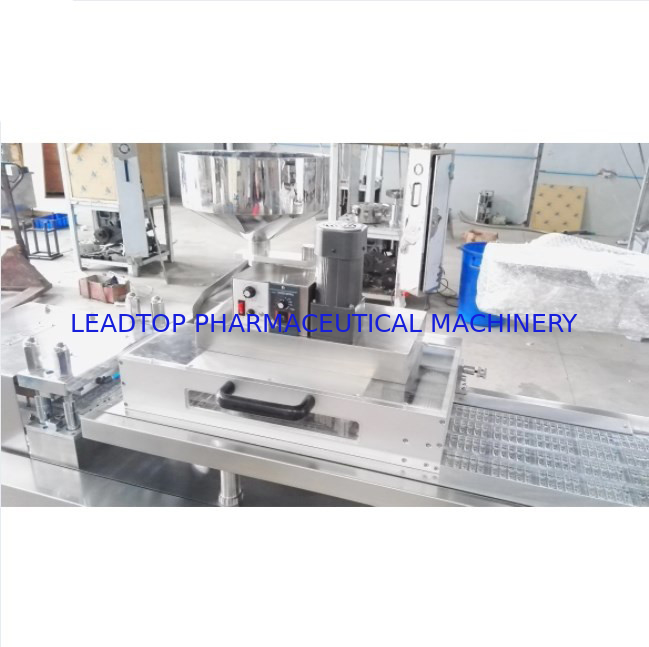

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 4



5) Driving Cylinder

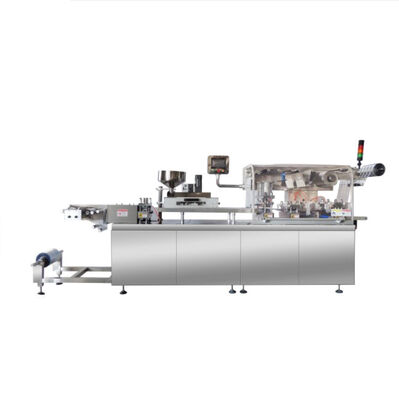

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 5



6) Punching Station and waste collection

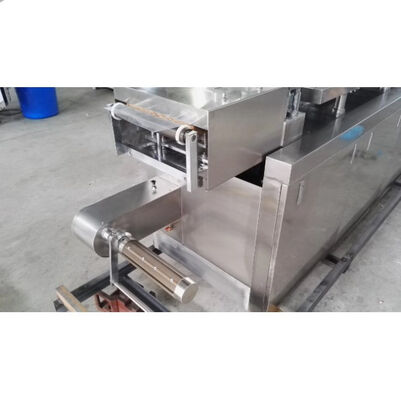

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 6

Application:

Flat-plate Automatic Blister Packing Machine is the new generation of blister packaging equipment, improved on the basis of traditional machine suitable for capasule, tablets, milk slice, candy, the productssuch as aluminium, aluminium, zhisu compositeseal packing.

Pharmaceutical Blister Packing Machine 2.2kw Micro Computer Control 7
