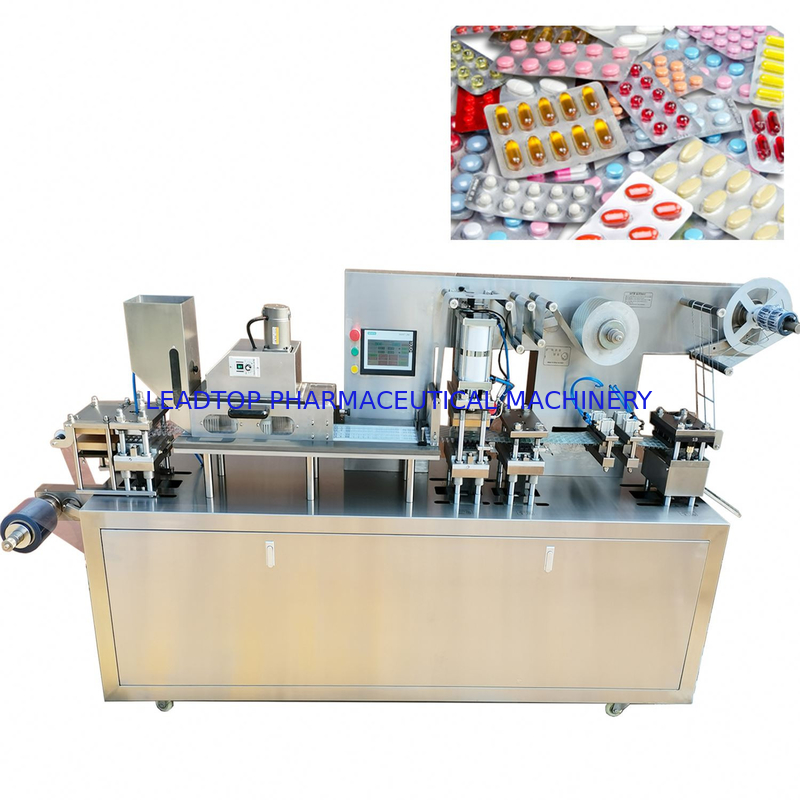

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

2.2kw Blister Packing Machine

,

Tablets Capsule Blister Packing Machine

,

Alu PVC Blister Packing Machine

Product Description

multi-functional automatic aluminum-plastic blister packaging machine, this machine is innovative design of the company's comprehensive domestic and foreign aluminum-plastic packaging machine. The key parts of the machine adopt many innovative technologies of our company, and the contact with drugs is adopted. Made of stainless steel and high-grade aluminum alloy materials, it is suitable for packaging tablets, sugar-coated tablets and capsules in the pharmaceutical, food and health care industries. It can also package small pieces of food, hardware parts and electronic components. The machine integrates ten functions such as coil unwinding, aluminum-plastic (aluminum-aluminum) feeding, blister forming, filling, scrap recycling, heat sealing, printing batch number, textured indentation, plate punching, and display finished product counting. The packaged articles are well sealed, safe and hygienic.

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule 0



Features:

1. The latest domestic high-power transmission mechanism is adopted, and the main drive shaft is driven by the platoon chain, which eliminates the error and noise of other gear transmissions.

2. The electrical appliance adopts imported control system, and it can be equipped with missing material and leakage compensation device and missing particle detection and removal device according to customer requirements.

3. The whole machine adopts a segmented combination: PVC forming, feeding and heat sealing are one section, and tropical aluminum cold forming, heat sealing and punching can be divided into one section for separate packaging.

4. Adopt photoelectric control system, automatic feeding of PVC, PTP, duralumin packaging, automatic punching of waste edges, to ensure the stability of ultra-long-distance multi-station synchronization.

5. It can be equipped with photoelectric detection and correction device, equipped with imported stepper motor traction, printing and packaging of graphics and text, to optimize the grade of packaging.

6. This machine is suitable for: capsules, plain tablets, sugar coatings, capsules, injections, special shapes, etc., as well as medical devices, light foods, and electronic components in blister sealed packaging.

Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG



2.2kw Flat Plate Blister Packing Machine For Tablets Capsule 12.2kw Flat Plate Blister Packing Machine For Tablets Capsule 2

Work Process:
1. Forming (up and down heating)
2. Heat sealing (upper heating)
3. Code
4. Indentation (can be heated in a small amount)
5. Cutter
6. Forming and outputting finished products

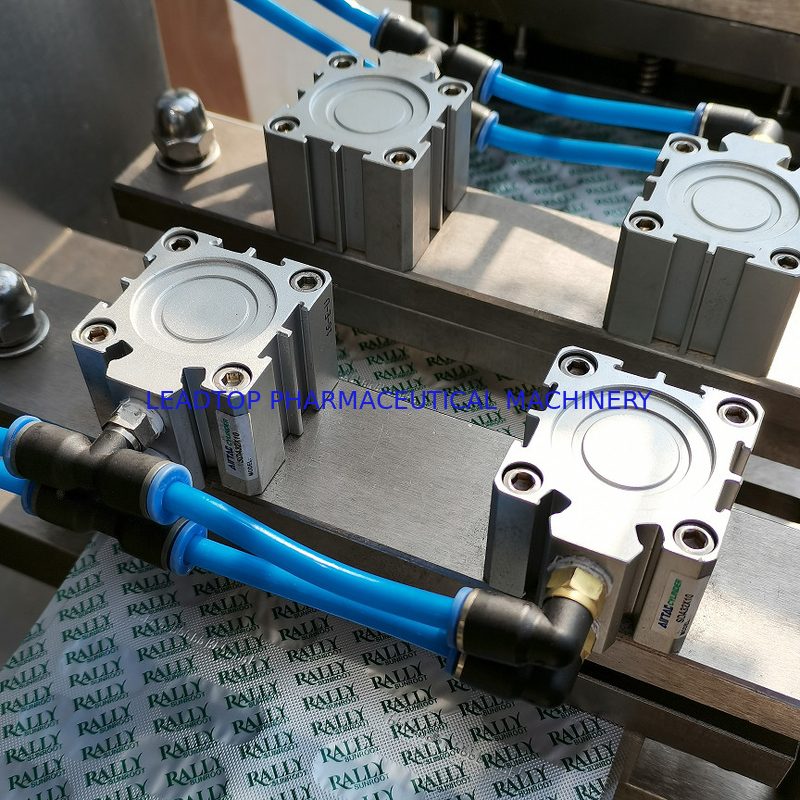

Machine Details:

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule 3

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule 4

Application:

Blister packing machine automatically packing tablet,capsule,candy,electronic-cigarette,soft capsule injection into aluminum plastic composite panel or aluminum plate. This blister packing machine is the preferred machine possessing fully automatic shaping,adding, sealing and blanking, which is the preferred products for small and medium sized production in pharmaceutical manufacturing, chemical industry, electronic products and food industry.This machine is suitable for packaging medicines, cosmetics, food, chemical products, such as single-dose liquid syrup, olive oil/ketchup/jam/butter/chocolate/honey/perfume, lotion, cream, cosmetic oil/fertilizer, pesticide, etc.

2.2kw Flat Plate Blister Packing Machine For Tablets Capsule 5
