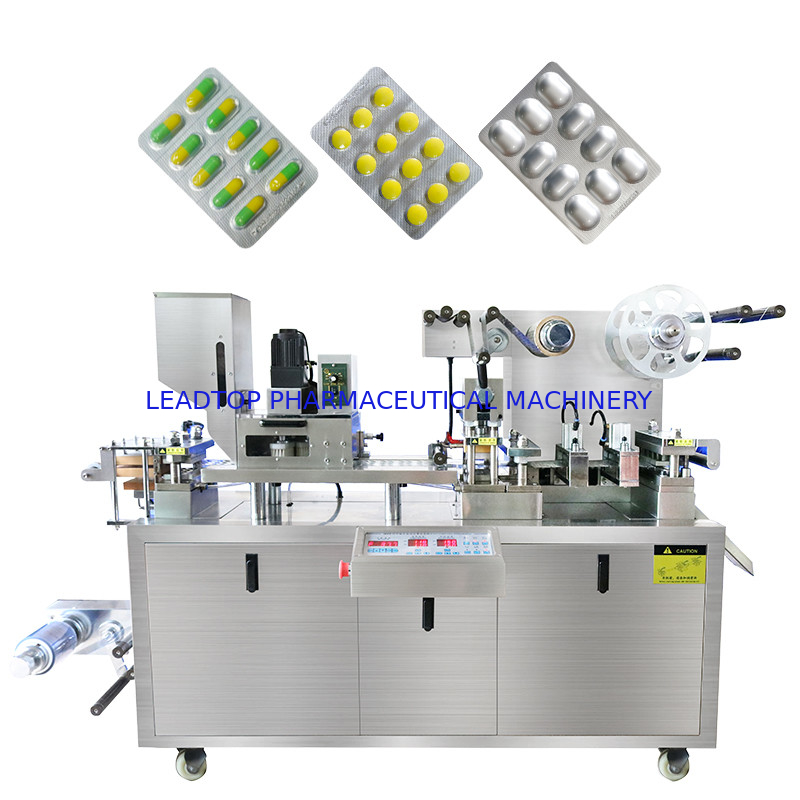

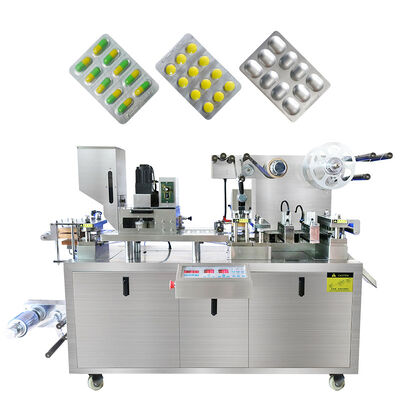

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

Automatic Capsule Blister Packing Machine

,

Tablet Capsule Blister Packing Machine

,

Pharmaceuticals Blister Packing Machine

Product Description

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc.

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 0

Features:

With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.



Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG



Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 1





Machine Details:

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 2

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 3Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 4Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 5

Application:

Blister packing machine automatically packing tablet,capsule,candy,electronic-cigarette,soft capsule injection into aluminum plastic composite panel or aluminum plate. This blister packing machine is the preferred machine possessing fully automatic shaping,adding, sealing and blanking, which is the preferred products for small and medium sized production in pharmaceutical manufacturing, chemical industry, electronic products and food industry.This machine is suitable for packaging medicines, cosmetics, food, chemical products, such as single-dose liquid syrup, olive oil/ketchup/jam/butter/chocolate/honey/perfume, lotion, cream, cosmetic oil/fertilizer, pesticide, etc.

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 6

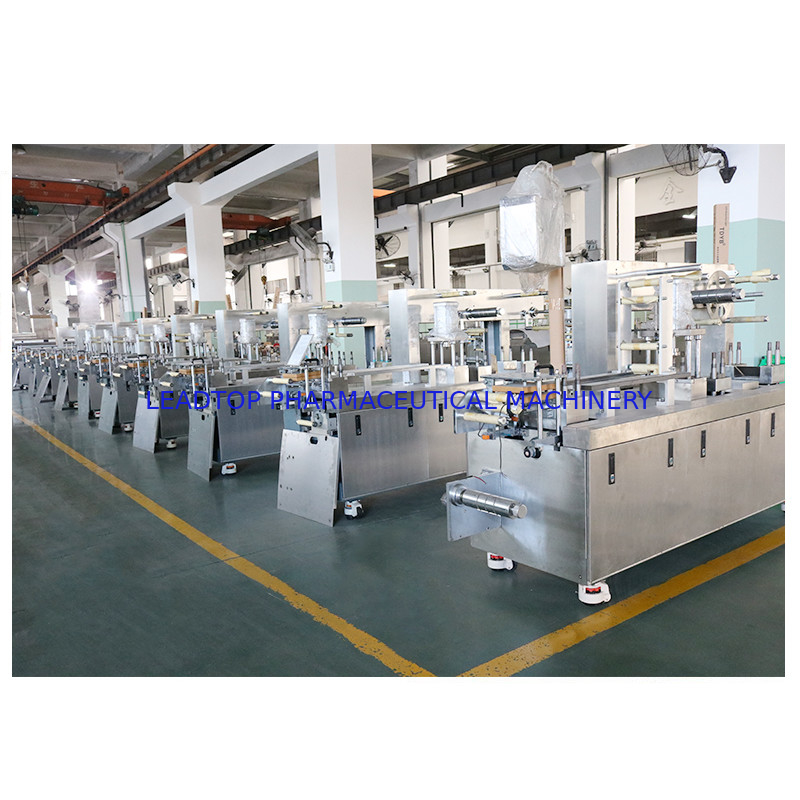

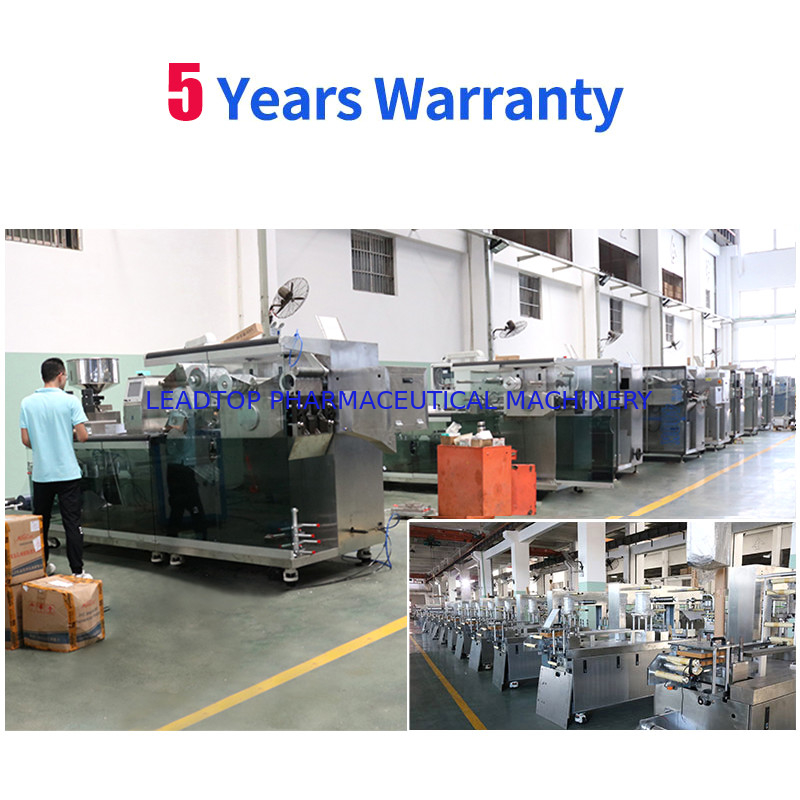

Workshop & Factory

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 7

Automatic Tablet Capsule Blister Packing Machine For Pharmaceuticals 8
