Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: FL-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Type: Fluid Bed Drying Equipment Application: Medicine Processing, Pharmaceutical Factory
Dimension(L*W*H): Main Machine: 800*800*3500mm Applicable Industries: Hotels, Farms, Home Use, Pharmaceutical Factory
Ceritification: CE Operation System: PLC Control With Touch Screen Operation
Weight: 2000kg(main Machine) Capacity: 100-180kg/batch
High Light:

Medicine Vertical Fluid Bed Dryer

,

Vertical Fluid Bed Dryer 100kg/Batch

,

30kw Vertical Fluid Bed Dryer

Product Description

Through powder granulation, fluidity is improved and dust flying is reduced.
Improve its solubility through powder granulation.
Mixing, granulating and drying can complete granulation in one machine.
Set pressure relief holes, once an explosion occurs, equipment personnel will not be injured.
Granulation in the refrigeration industry: tablet granules, granular granules, capsule granules. Granulation in the food industry: cocoa, coffee, milk powder, granular juice, condiments, etc.
Granulation in other industries:pesticides, feed, fertilizers, pigments, dye chemicals, etc. Drying of powdery or granular wet materials.
Coating: granule, pill protective layer, color preparation, film, enteric coating, etc.
The material powder particles are in an annular fluidized state in the raw material container (fluidized bed). After being preheated and mixed by the heated air after purification, the binder solution is sprayed into atomization, so that several particles are gathered into agglomerates containing the binder.
Due to the continuous drying of the material by the hot air, the water in the agglomerates evaporates. The binder solidifies, and this process is repeated continuously to form ideal and uniform microporous spherical particles.



Medicine Vertical Fluid Bed Dryer 100kg/Batch For Hotels Farms 0

Specifications

Model 200
Volume (L) 670
Amount to be treated (kg/per time) 100/300
Power of fan (kw) 30
Consume of steam 0.4MPa(kg/h) 282
Consume of compressed air (m3/min) 1.1
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.34×1.7×3.8



Medicine Vertical Fluid Bed Dryer 100kg/Batch For Hotels Farms 1





Principle
The fresh air is filtered by the two or three filters and then enters the heating system for heating. After heated, the hot air enters into the drying chamber and blows up the material in the bowl of the FBD and lets the material into fluidization conditions. During this period, the material is dried. When customers use the machine, they can set the procedure and oarameters according to the process requirements, and then start the machine.



Application

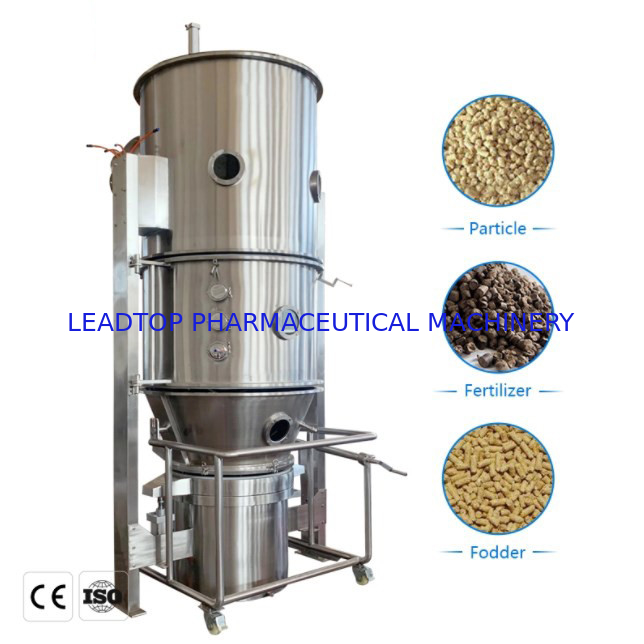

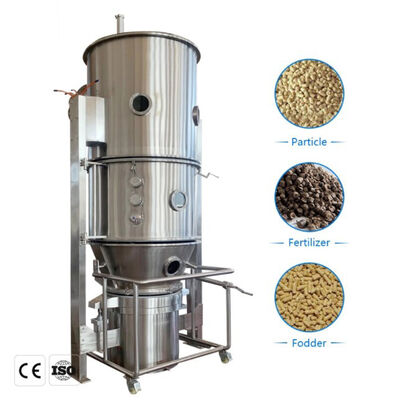

The machine is mainly used for drying powder or granules from pharamaceutical, foodstuff, chemical and some other industries.

Medicine Vertical Fluid Bed Dryer 100kg/Batch For Hotels Farms 2



Options
1. 2Bar &10Bar POWDER EXPLOSION
The 2 bar and 10 bar powder explosion proof design is selectable to ensure the operator, equipment and enviroment safety with reliable grounding device.

2.Product charging by the lifting machine/Vacuum transfer machinn
3.Through-wall structure for thr machine in on request
