Stainless Steel Fluid Bed Dryer Machine 180kg/Batch For Food Pharma

Stainless Steel Fluid Bed Dryer Machine 180kg/Batch For Food Pharma

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: FL-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Type: Fluid Bed Drying Equipment Application: Medicine Processing, Pharmaceutical Factory
Dimension(L*W*H): Main Machine: 800*800*3500mm Applicable Industries: Hotels, Farms, Home Use, Pharmaceutical Factory

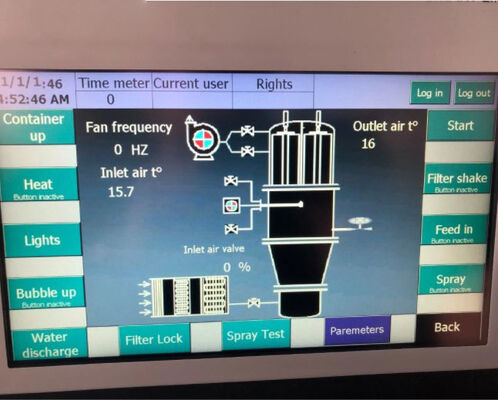

Ceritification: CE Operation System: PLC Control With Touch Screen Operation
Weight: 2000kg(main Machine) Capacity: 100-180kg/batch
High Light:

Stainless Steel Fluid Bed Dryer Machine

,

Food Pharma Fluid Bed Dryer Machine

,

Fluid Bed Dryer Machine 180kg/Batch

Product Description

The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.

Application of fluid bed dryer
For Food powder or granule drying, chemical powder drying, medicine powder drying.
Used for boiling drying of particle material with a size of 0. 1-6mm, and suitable for speedy drying of finished product, intermediate (semi finished product) in such trades as pharmaceutical, food, light industry and chemical etc.
Working principle
Used the draught of fan, natural air flows through purifying cabinet, heater and froms high speed air flow in the hole of material bed, which makes the material into boiling(fluidized)status, during the large area touch between gas and solid phases, mosture of material is veaporated quickly, and thus reaching the purpose of drying.

Stainless Steel Fluid Bed Dryer Machine 180kg/Batch For Food Pharma 0

Schematic Diagram

Stainless Steel Fluid Bed Dryer Machine 180kg/Batch For Food Pharma 1

Stainless Steel Fluid Bed Dryer Machine 180kg/Batch For Food Pharma 2



Specifications

Model 200
Volume (L) 670
Amount to be treated (kg/per time) 100/300
Power of fan (kw) 30
Consume of steam 0.4MPa(kg/h) 282
Consume of compressed air (m3/min) 1.1
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.34×1.7×3.8





Main feature
Hopper is sealed with frame by way of o type air cell, featuring convenient handling. Hopper is equipped with agitator inside, materail is dried uniformly and speedily without boiling dead angle.
Filter bag and cylinder automatic bag shake unit are supplied on the top to avoid materialloss.
With air purifying cabinet, it usesoutdoor air has no influence on air purifying load of purified workshop.
High drying speed, drying time can be freely set up according to features of materials, normally at 10-30min.
