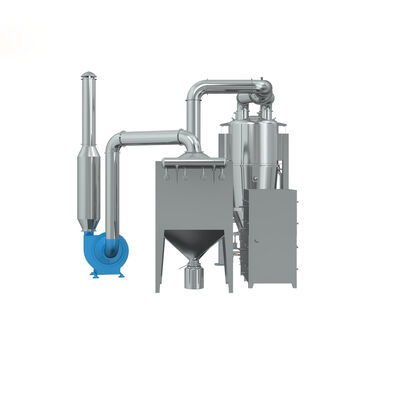

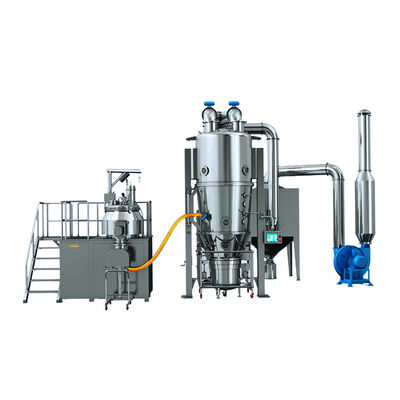

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: FL-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Type: Fluid Bed Drying Equipment Application: Medicine Processing, Pharmaceutical Factory
Dimension(L*W*H): Main Machine: 800*800*3500mm Applicable Industries: Hotels, Farms, Home Use, Pharmaceutical Factory
Ceritification: CE Operation System: PLC Control With Touch Screen Operation
Weight: 2000kg(main Machine) Capacity: 100-180kg/batch
High Light:

Chemical Solid Drinks Granulating Machine

,

Fluid Bed Dryer Granulator

,

Fluid Bed Drying Equipment

Product Description

FL Fluid Bed Granulator Dryer is widely used for making powder materials to granules, and drying powder and granule materials in pharmaceutical, food, chemical and pesticide industry. It has the following features:
1. This machine belongs to fluidized drying, heat mass is transferred quickly and drying speed is fast.
2. The work state in the machine is in negative pressure condition, there is no dust flying during drying process.
3. The bag filter is multi-bag type and made of anti-static material, operation is safe.
4. No dead corner, easy to clean. It confirms to the requirements of GMP.
5. Control system is made up of touch screen, PLC, inverter and temperature controller. It adopts PID technology to control the inlet air temperature exactly. Measure and display outlet air temperature all the time so that we can control the drying process effectively.

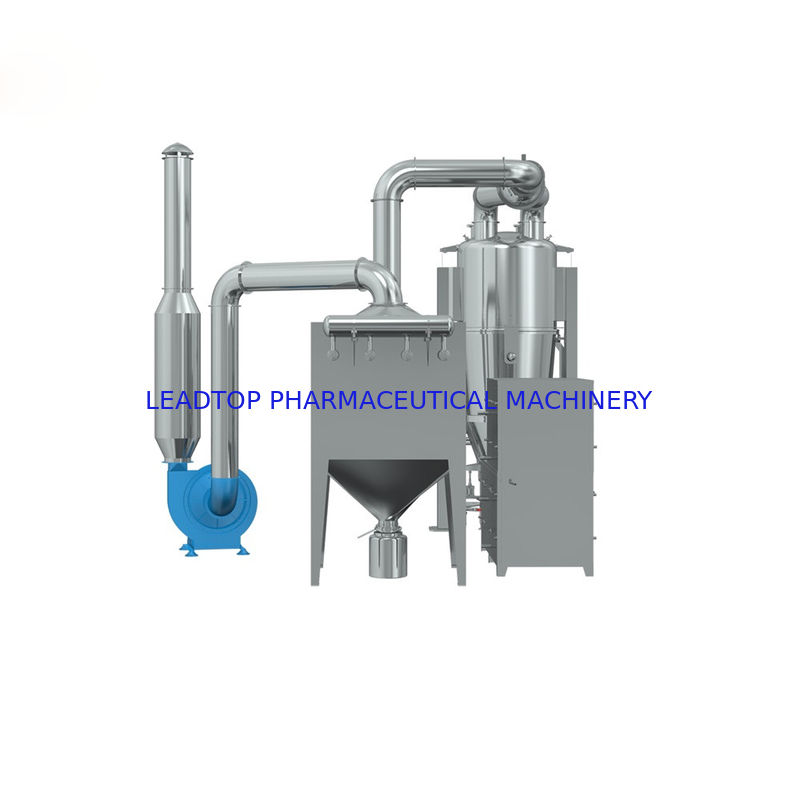

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator 0



Specifications

Model 200
Volume (L) 670
Amount to be treated (kg/per time) 100/300
Power of fan (kw) 30
Consume of steam 0.4MPa(kg/h) 282
Consume of compressed air (m3/min) 1.1
Noise,dB (A) (fan is installed separately) ≤75
Main machine height (m) 2.34×1.7×3.8

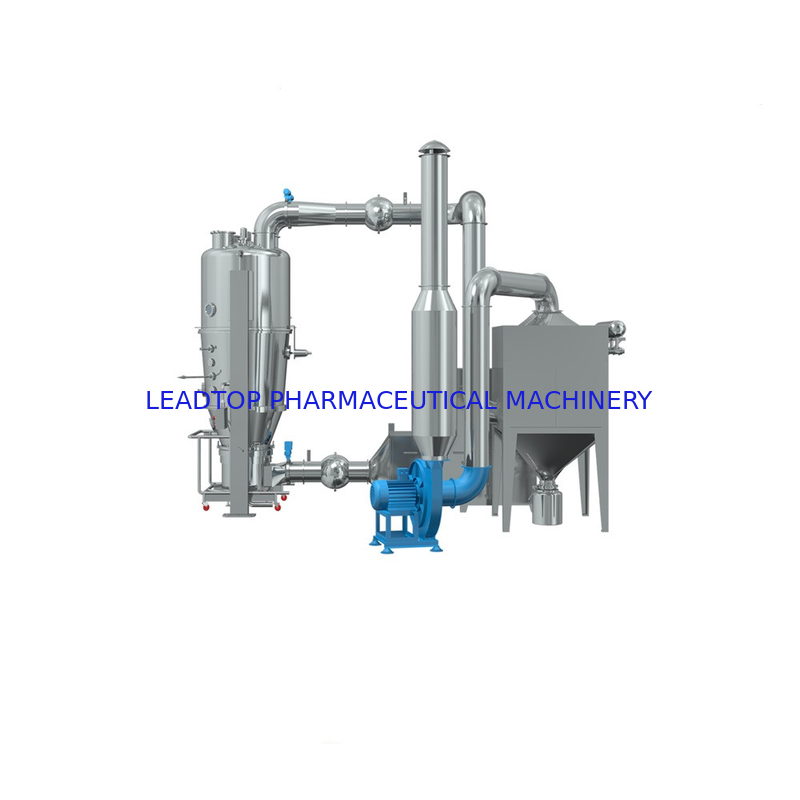

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator 1



Work principle
The filtered and heated air enters fluid bed chamber from air distributing plate, which makes the powder or granule materials form a fluidized state due to the push of the air and its own gravity. Hot air and material contact fully and after the heat exchange, moisture in material is evaporated, and then the evaporated moisture is volatilized by the exhaust air out of the machine.





Application
1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

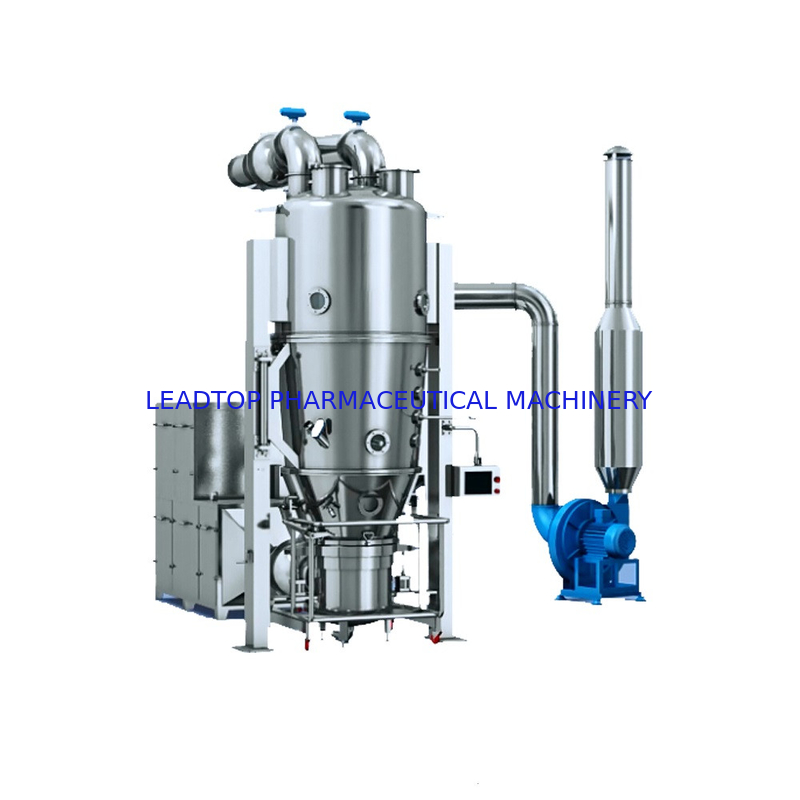

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator 2



Functions
1.By using powder granulation, to improve the liquidity and thinner dust.
2.By using powder granulation, to improve solubility property.
3.Mixing—granulation—drying can be finished in one device (one-step granulation)
4.To adopt antistatic filtering mediums, to ensure safe operation.
5.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

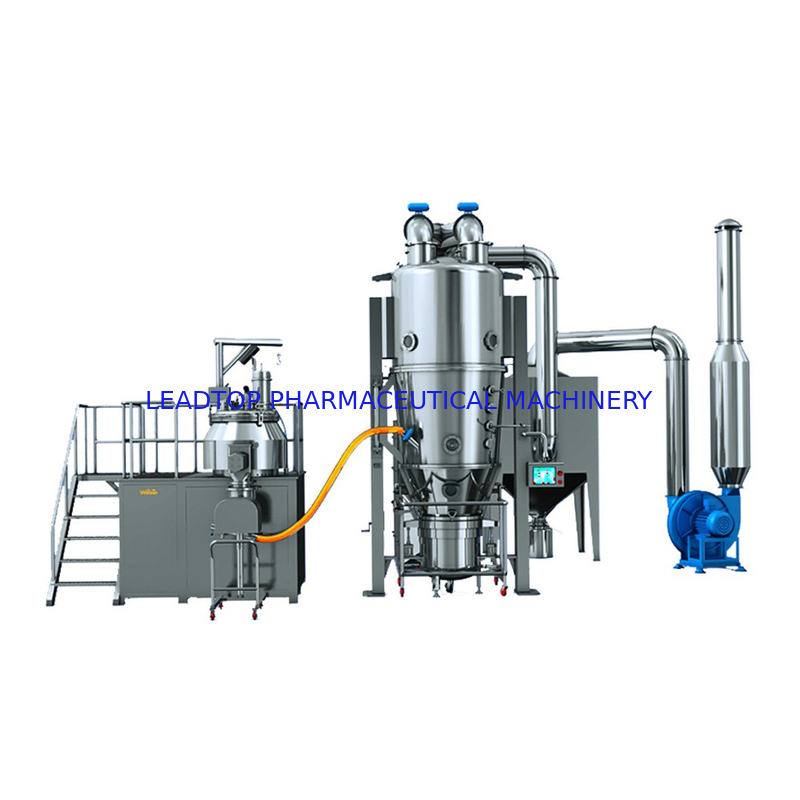

Chemical Solid Drinks Granulating Machine Fluid Bed Dryer Granulator 3
