Oscillating Powder Medicine Swaying Granulating Machine 300kg/H

Oscillating Powder Medicine Swaying Granulating Machine 300kg/H

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: LTXL

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Condition: New Output (kg/h): 300
Productive Capacity(kg/h): 150-300 Swing Angle(°): 360°
Overall Dimensions(mm): 1260x 750 X 1150 Power Of Motor(kw): 3
Revolution Of Roller(r/min ): 65 Diameter Of Roller(mm): 160
High Light:

Medicine Swaying Granulating Machine

,

Oscillating Powder Granulating Machine

,

Medicine Granulating Machine 300kg/H

Product Description

Oscillating Powder Medicine Swaying Granulating Machine 300kg/H



The oscillating granulator can make particles from a mixture of powders, or from lumpy dry matter into the desired particles. It is suitable for small batch production in pharmaceutical, chemical, food, scientific research units, laboratories, hospitals and small health care products factories
It has a wide range of applications, uniform particles produced, no need for particle screening, thereby increasing production efficiency, reducing production costs and increasing production. Compared with powder, pellets are easy to take, store and transport. The machine is driven by mechanical transmission to swing the cylinder back and forth. The material is extruded into particles from the screen. As long as the screen mesh of different numbers is replaced, the coarse and fine particles are made. The drum does not need to be disassembled, the screen is easy to disassemble and is very light. The cleaning parts are only part of the granulating cavity, and the cleaning is very convenient. The particles made by the system contain less powder and particle size, convenient operation, simple control and long service life, which meet the requirements of GMP specification.

Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 0

Specifications

Model 100 160 250
Capacity 30-200kg/h 100-300kg/h 300-600kg/h
Power 1.1kw 3kw 7.5kw
Roller rotational speed 55r/min 55r/min 55r/min
Vacillating perspective 360° 360° 360°
Roller diameter φ120mm φ160mm φ250mm
Overall dimension 700*400*1050mm 1260*800*1300mm 1500*1000*1600mm
Weight 280kg 380kg 650kg





Features

1. This Oscillating granulating machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be used to crush agglomerate materials into small granules directly.
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. It also can be used for granulating the coagulated material that is formed during storage or during chemical processing, In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of sieve should be prepared by users, according to the size of granule.

 Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 1

Working method
The swing granulator is a mechanical drive. Under the action of friction, the drum rotates, and powdery materials are discharged from the screen hole and sent out of the machine under the action of positive and reverse rotation of the rotating drum. The particle size and density can be controlled to a certain extent by adjusting the tightness of the screen and the speed of the drum

Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 2





Advantages

1. easy to use
2 .safe and reliable
3. durable
4. beautiful apprearance
5. stable performance

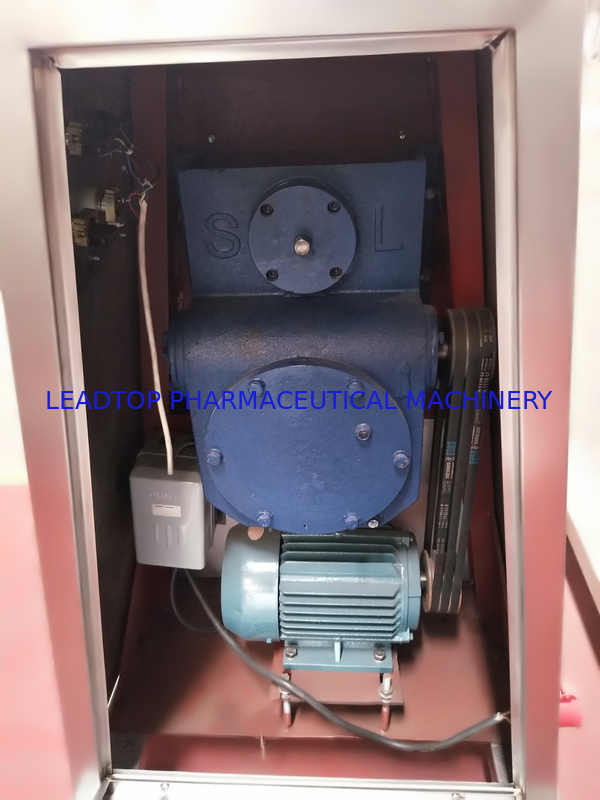

Machine Details



Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 3

Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 4



Application

This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty, cleaning is very convenient, operation is very simple and its energy consumption is very low.
Oscillating Powder Medicine Swaying Granulating Machine 300kg/H 5
