Quantitative Dispensing Edible Oil Filling Machine 50W With 30L Hopper

Quantitative Dispensing Edible Oil Filling Machine 50W With 30L Hopper

Brand Name:	LTPM CHINA
Model Number:	SEM-Series
MOQ:	1 Set/Sets
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15Sets per mouth

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

Driven Type:

Electric

Weight:

35kg

Packaging Material:

Plastic, Glass, Other

Material:

Stainless Steel

Dimension:

1310*380*380mm

Filling Accuracy:

200ml: +/-1%, 200-5000ml: +/-0.5%, ±1

Power Supply:

220/110V 50/60HZ

Air Pressure:

0.6-0.8mpa

Packaging Details:

wooden

Supply Ability:

15Sets per mouth

Highlight:

40pcs/min Bottle Filling Machine

30L Hopper Edible Oil Filling Machine

Edible Oil Filling Machine 50W

Product Description

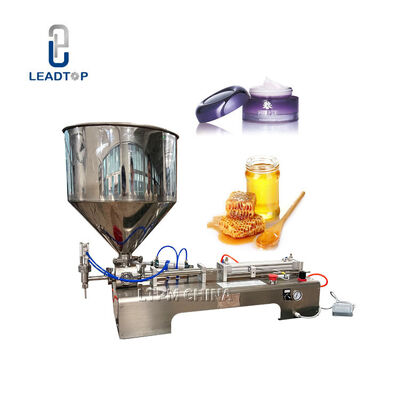

SEM-P Semi-automatic Paste-Liquid Dual-Purpose Filling Machine is a semi-automatic quantitative filling machine for paste and liquid.

It is suitable for quantitative filling of liquid, paste and other substances in chemical, food daily chemical, pharmaceutical,pasticide, cosmetics lubricant and other industries. Such as Honey, Chili Sauce, Tomato Sauce, Toothpaste, Glass Cenent, Oil,Juice, Soda, Milk, Water, etc.

Technical Parameters


			Model

			SEM-P1

			SEM-P2

			SEM-P4

			Filling head

			1

			2

			4

			Output Max

			40 bottles/min

			80 bottles/min

			160 bottles/min

			Filling accuracy

			±1%

			Filling range

			5-100ml, 23-300ml, 50-500ml, 100-1000ml, 300-2000ml, 500-3000ml, 1000-5000ml

			Hopper

			30L

			50L

			100L

			Power supply

			220/110V 50/60HZ

			Air pressure

			0.6-0.8mpa

			Power

			50W

			100W

			200W

			Dimensions

			1310*380*380mm

			1310*550*380mm

			1310*1010*420mm

			Weight

			35kg

			55kg

			90kg

Product Details
-01
The high standrd Adopt Japan SMC pneumatic components and excellent imported camponents.

-02

Material contact parts can be customized 316Lstainless steel material, so as to obtain higher corrosion resistance performance and

GMP requirements.

-03

The piston can be selected with PTFE material(without 0-ring), so as toobtain stronger wear resistance and higher corrosion

resistance.

-04
Also can be chosen fully pneumatic model, suitable for explosion-proof requirement or wet envirenments.

-05
It is easy to disassemble, assemble and clean, and can be operated auto manually funcition. It can be installed on vertical

packaging machine. horizontal machine and stretching film packaging machine and filling lines.

-06
Unique quiet work design, no trouble of air "click click" sound , beautifying the working environment.
