Product Details:

Place of Origin: Zhejiang,China
Brand Name: LTPM CHINA
Certification: CE
Model Number: AO-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15Sets per mouth
Get Best Price Contact Now

Detail Information

Driven Type: Manual Weight: 13kg
Packaging Material: Plastic, Glass, Other Material: Stainless Steel
Dimension: 270*270*270mm Filling Volume: 5-50ml
Filling Precision: ± 1% Certification: CE ISO
High Light:

Pneumatic Manual Liquid Filling Machine

,

Manual Liquid Filling Machine 50ml

,

SS304 Liquid Bottle Filling Machine

Product Description

Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304

Automatic Pneumatic Small Bottle Juice Cream Oil Manual Liquid Filling Machine



The A0-Series starting filling machine is powered by compressed air to make the operation more convenient. This product is specially designed for hospitals, laboratories, beauty parlors, small and medium-sized enterprises, etc., and is very suitable for canning small dose of liquid and paste (suitable for water agent, ointment, hotel small bottle of shampoo, shower gel and other materials filling). The capacity of this machine hopper is 10 kg, and users can set the capacity according to their needs.







How To Use

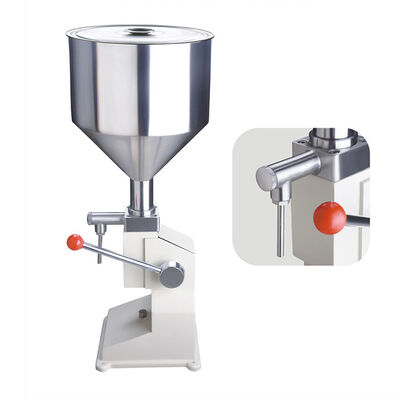

Make the handle up at first,then let the locking nut(Flg2.25) slip,circumgyrate the measure net(Flg2.26) CCW to the filling dose,or CW to reduce.Circumgyrate the locking nut close while you get right dosage.

Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304 0

Specification



Model
A02
A03
Working mode
Pneumatic
Manual
Material
Stainless steel 304
Stainless steel 304
Filling range
5-50ml
5-50ml
Filling accuracy
± 1%
± 1%
Hopper capacity
10kg
10kg
Weight
13kg
13kg
Overall dimension
270 × 270 × 700mm
270 × 270 × 700mm



Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304 1



Machine Details

Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304 2

Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304 3



Application

Pneumatic Cream Oil Manual Liquid Filling Machine 50ml SS304 4
