45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill

45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

45 Cutting/Min Blister Packing Machine

,

Touch Screen Blister Packing Machine

,

PLC Control Blister Packing Machine

Product Description

45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill

Automatic Capsule Pharmaceutical Blister Tablet Capsule Pill Flexible Blister Packing Machine



The automatic aluminum-plastic blister packaging machine is suitable for particles, pastes, liquids, such as: capsules, honey,electronic cigarette cartridges, skin care creams, milk tablets, tablets, sugar cubes, perfumes, needles, oral liquid bottles,suppositories, electronic elements Blister-type aluminum-plastic composite sealed packaging for devices, infusion tubes and special-shaped tablets, etc. The application fields include pharmaceuticals, cosmetics, food, chemicals, electronic devices, etc.







Feature

1. Adopts top brand PLC controller with touch screen displayed in Chinese and English, Frequency inverter for speed control, servo traction, which can ensure the length of blister traction adjustable within the range.
2. With thermal temperature control and test, main machine over loading protect, PVC and PTP packing material position test, feeder material position test ,failure automatic debug and alarm, automatic protection and stop running.
3. The machine station module type design of level frame, good sight, safe and convenient operation.
4. Thermal with contact type, positive press formed, air cushion thermal seal upper and lower net, photo register make your product package better.
5. PVC exchange support with bigger type material support, whole roller, which makes the equipment more practicability.
6. The special design of moulds in rectangle shape, ladder type fixing, provide much convenience and easy to moulds replacement. All material contact parts adopt high quality stainless steel and aluminum metal, slap-up surface treatment craft.
7. Discharging finished product in right order, automatic collection of bad products, auto rewinding of strap material to ensure easy collection.
8. Feeding efficiently, reliable and suitable for many kinds type arrange and irregular feeding,(according to actual product design fit feeder)

9. The machine has been designed into separated body, which is easily move into lifts or workshops.





Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

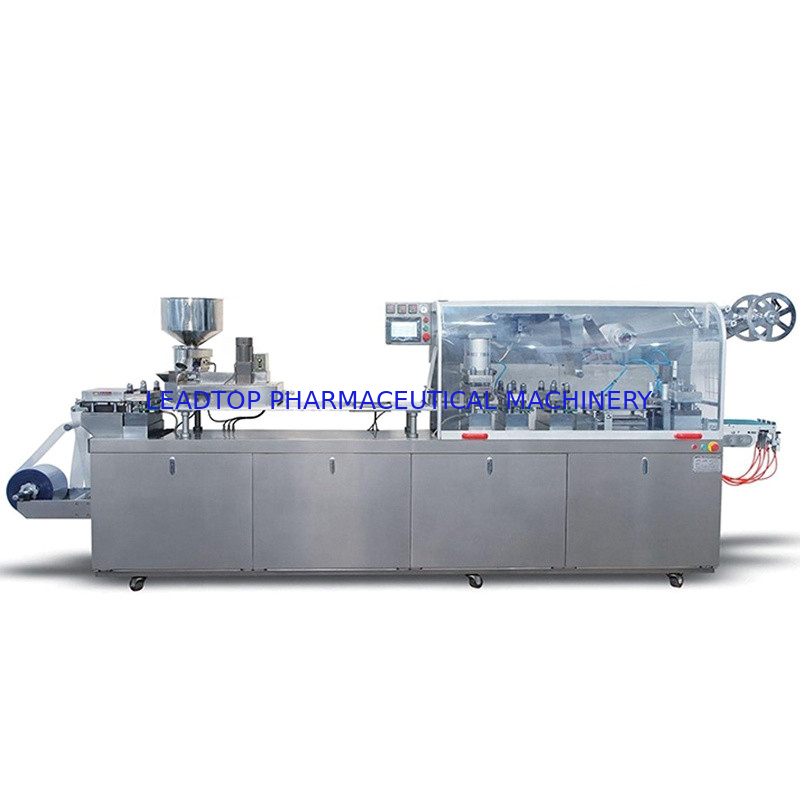

45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill 0





Machine Details:

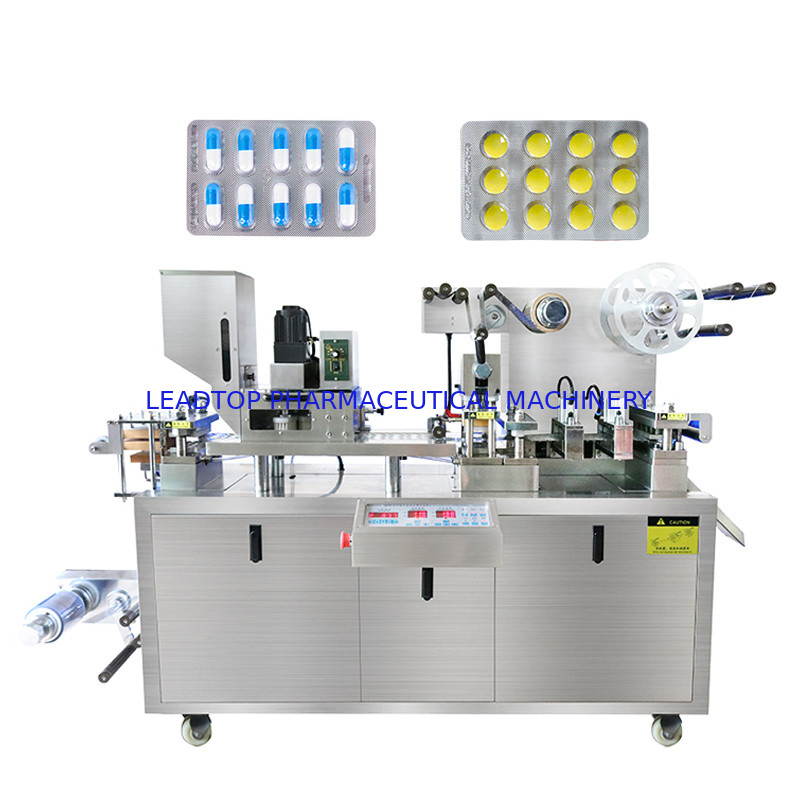

45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill 1



Application:

1. This machine mainly be used in packing pharaceutical products, such as tablets, pills, capsules and drugs.

2. This packaging way(blister-pack) can impove product's quality, enhance product's additional value.

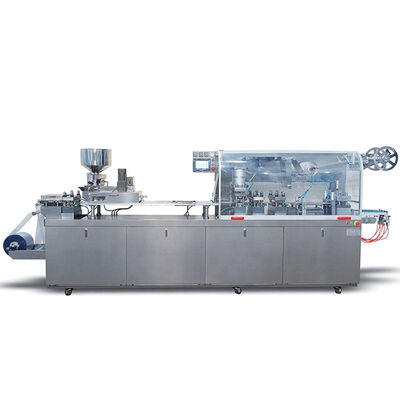

45 Cutting/Min Flexible Blister Packing Machine For Pharmaceutical Pill 2
