• Capsule Ketchup Curry Packing Machine For Pharmacy Industry
Capsule Ketchup Curry Packing Machine For Pharmacy Industry

Capsule Ketchup Curry Packing Machine For Pharmacy Industry

Product Details:

Place of Origin: CHINA
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPP-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 25 SETS Per month
Get Best Price Contact Now

Detail Information

Stroke (mm): 40-160 Can Be Manufactured As User’s Requirements Capacity: 45cutting/min
Packaging Type: Alu/PVC And Alu/Alu Package Control System: Micro Computer
Feeding:: Universal Feeder Power: 2.2kw
Standard Plate(mm): 80×57 Can Be Manufactured As User’s Requirements Air Pressure(Mpa): 0.4-0.6
Air Supply: ≥0.3 M³/min Mould Cooling: Tap Water Or Recycling Water
High Light:

Capsule Ketchup Curry Packing Machine

,

Pharmacy Industry Curry Packing Machine

,

Self Inspection Curry Packing Machine

Product Description

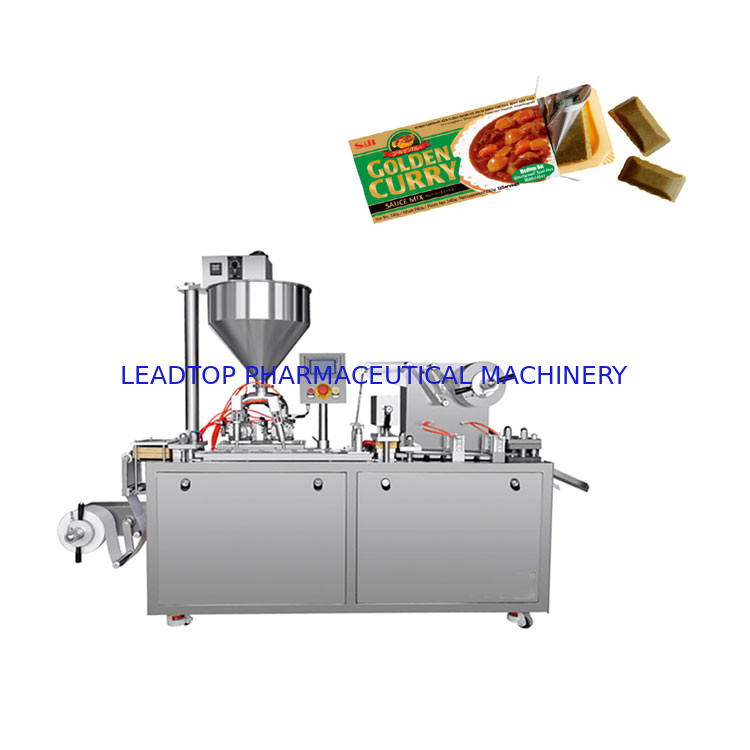

High Quality Curry Packing Machine Curry Tablet Capsule Ketchup Blister Packaging Machine



Automatic Blister Packing Machine is a latest high-precision medicine packingmachine in current pharmacy industry. This machine is widely used for capsule,tablet, honey pills in pharmaceutical industry, for milk tablet, candy, chocolate infood industry, for injector, syringes, pins, small component etc.In electron orhardware industry as all kind of shapes of ALU-ALU,ALU-plastic, paper-plasticcombined sealing packing.





Feature

1. Equipped with optical fiber or inductive self-inspection mechanism, it can automatically remove the defective plates with missing grains, and the packaging yield can reach 100%.
2. The main transmission part adopts parallel shaft helical gear reducer, with novel structure, stable operation, low noise and long life.
3. Mould pin positioning, pressing plate fastening, convenient and accurate mould changing, saving packaging materials.
4. The heat-sealing station can freely move and adjust the distance between the fixing, forming, batch numbering, indentation and punching devices, which is convenient for correction and easy to operate.
5. Manipulator traction, adjustable stroke, suitable for packaging of different sizes. Flat structure, can pack oval, square, triangle and other special-shaped items.





Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG



Capsule Ketchup Curry Packing Machine For Pharmacy Industry 0



Remarks:
* Best option for small batches, pharmaceutical R&D and pilot plants.

* It allows forming thermoplastic and cold forming materials (Alu-Alu).

* It stands out for its simple operation, high reliability and compact design. Its main structure is made of stainless steel.

* Automation by PLC and operation through touch screen control panel.

* It has pneumatic drives, which lend it high robustness and low maintenance.

* It is suggested for R&D departments, considering that its easy operation and maintenance makes it user-friendly to personnel that are not familiar with the use of blister machines.



Machine Details:

Capsule Ketchup Curry Packing Machine For Pharmacy Industry 1



Application:
This machine is suitable for packaging medicines, foods products, such as tablets, capsules, pills, children's candies, sugar gums, etc.

Capsule Ketchup Curry Packing Machine For Pharmacy Industry 2
