Thermoform Blister Packaging Machine Biscuits Chocolate Packing Machine

Thermoform Blister Packaging Machine Biscuits Chocolate Packing Machine

Thermoform Blister Packaging Machine

PTP Blister Packing Machine

380V Blister Packing Machine

Place of Origin:

CHINA

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-Series

Contact Us

Request A Quote
Product Details
Stroke (mm):
40-160 Can Be Manufactured As User’s Requirements
Capacity:
45cutting/min
Packaging Type:
Alu/PVC And Alu/Alu Package
Control System:
Micro Computer
Feeding::
Universal Feeder
Power:
2.2kw
Standard Plate(mm):
80×57 Can Be Manufactured As User’s Requirements
Air Pressure(Mpa):
0.4-0.6
Air Supply:
≥0.3 M³/min
Mould Cooling:
Tap Water Or Recycling Water
Product Description

The Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy,healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory,mini-motor test workshop. The machine reaches advanced level in China.

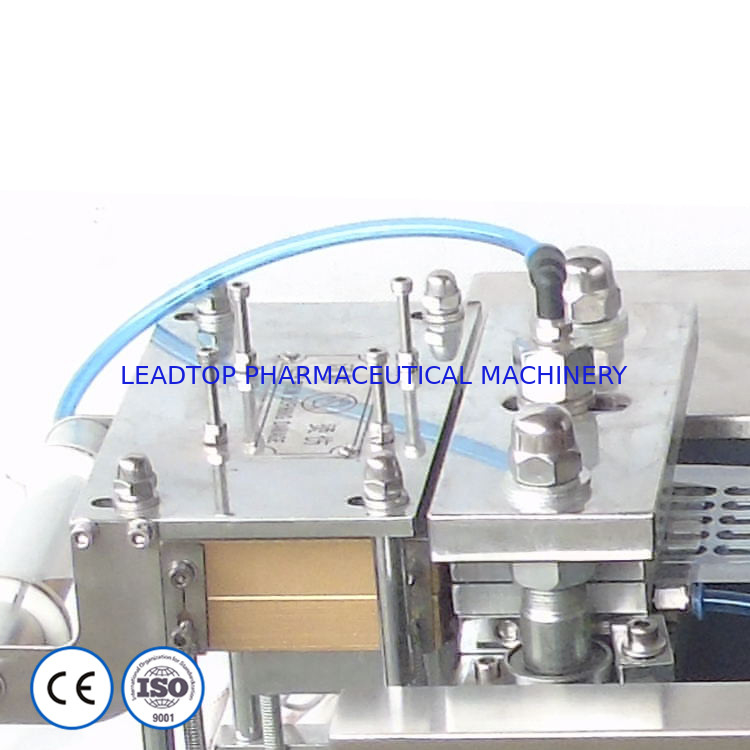

Thermoform Blister Packaging Machine Biscuits Chocolate Packing Machine 0



Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4~0.6MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
≥0.2m3/min
Pressure: 0.5~0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG



Designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory.
Stroke adjustable, long durability etc, It can protect the material from steam or dust, improve product packing degree.
The machine is used to produce small quality and many kinds of products.



Characteristic:
1. The material is fed automatically. The mould and feeding equipment can be designed as user's requirements.
2. Travel scope can be adjusted. Mould is located by located groove so that it's easy to change mould.
The machine heats the PVC through conduction and forms it through pressing and frothing.
3. The equipment of trace pressing, batch number printing and scrap-collecting Can Be Chose.
4. The heating moulds will automatically separate when the machine stops, to protect the material between them and extend the machine's life.
5. Manipulator grip and tow wrapper, straight to-and-fro running, synchronize accurately and stably.
6. Speed is shifted by step-less transducer; the operation panel of PC cycle (can be Adopt interface of human-machine).





Application:
This machine is suitable for packaging medicines, foods products, such as tablets, capsules, pills, children's candies, sugar gums, etc.

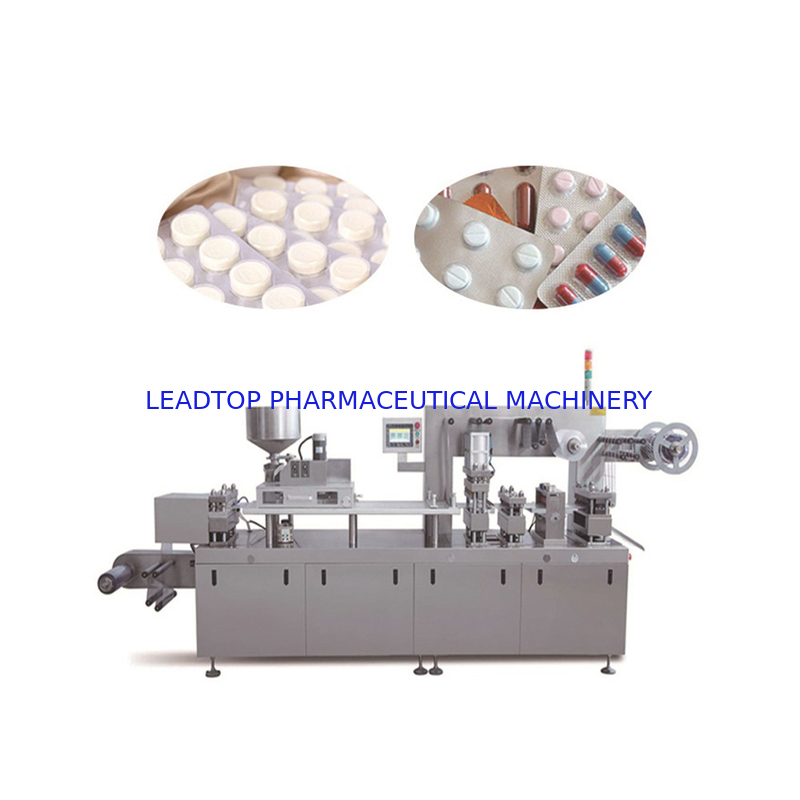

Thermoform Blister Packaging Machine Biscuits Chocolate Packing Machine 1
