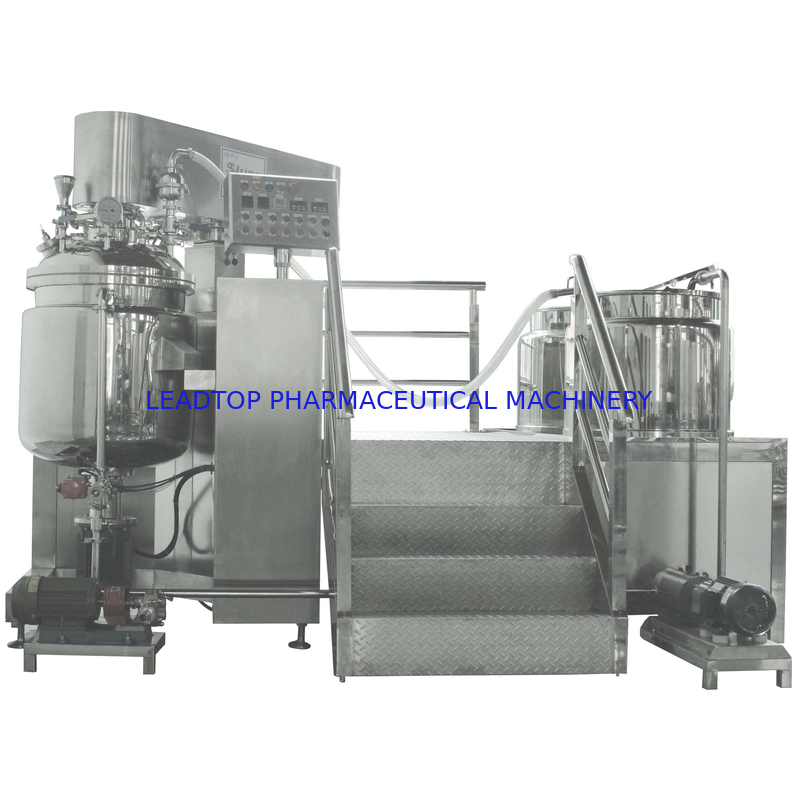

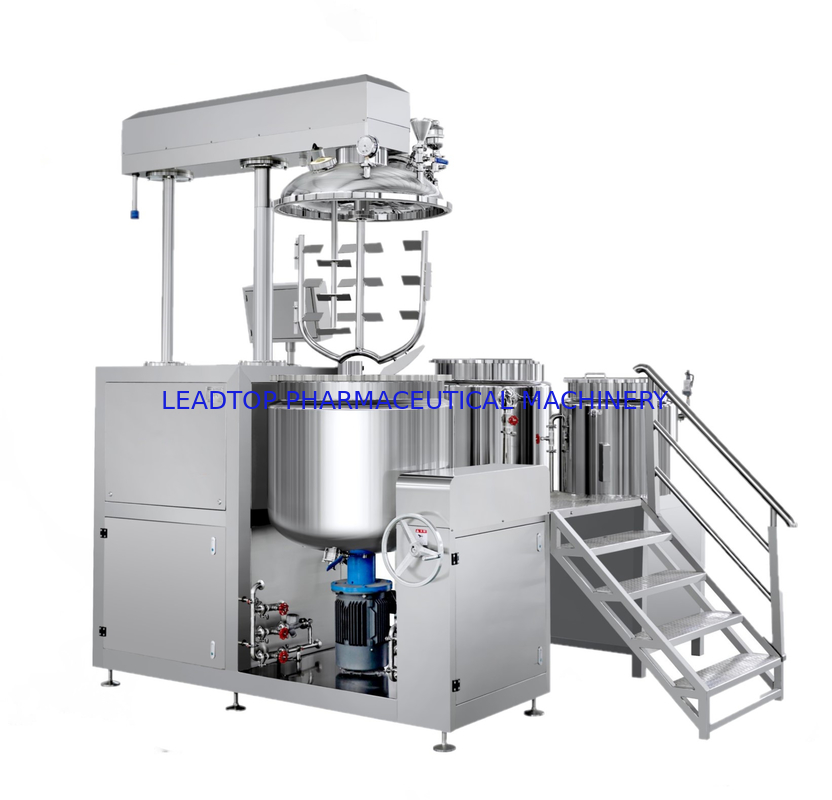

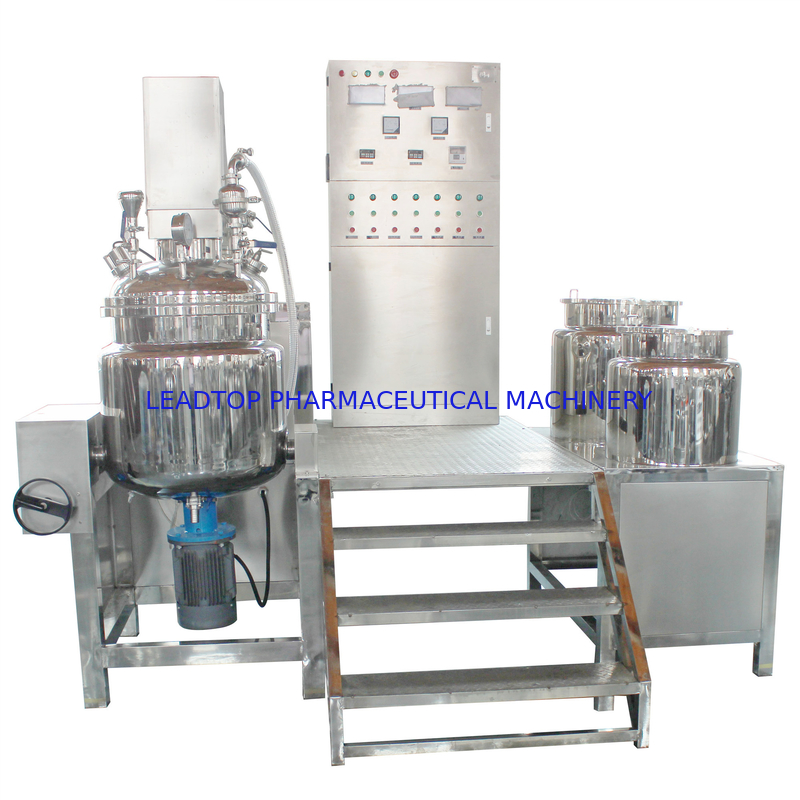

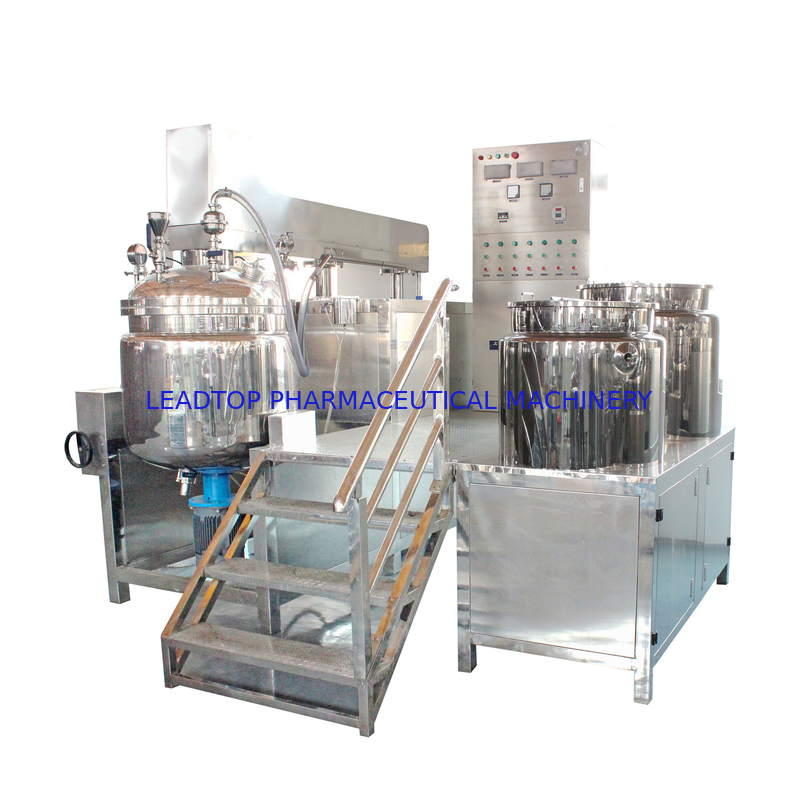

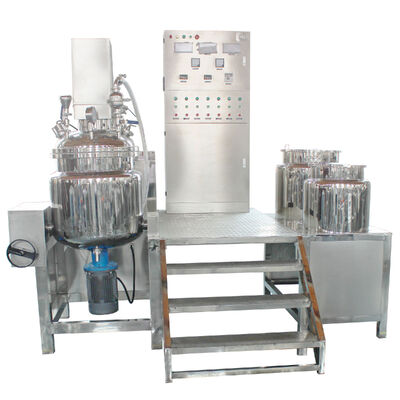

Vacuum Emulsifier Homogenizer Making Machine For Cosmetics Facial Cream Body Cream Cosmetic Product Equipment
1. High-efficiency homogenizer: it adopts Germany combined six-layers shearing teeth structure, which gets dozens of times of emulsification effect every time the homogenizer shears the material.
2. Going up & down type homogenizing emulsifier: Suitable to mix many kinds of materials. Without dead corner, leaving no materials in the tank after discharge. Homogenizer can work long time continuously. It is the best emulsifier ever.
3. Material suction and discharge function: it can be fed materials from up side and down side, or separately. Long-distance conveying function, to avoid the final products being polluted.
4. Material suction from the bottom: unique powder suction function by one-button control, to ensure the powder homogenize and emulsify evenly.
5. All-wave, no dead corner, choked flow, stirring system: it increases the stirring speed and mixing effect.
6. Parameter record function: the history record can be checked, conforms to GMP and ISO standard.
Features :
1. Homogenizer's design mainly stem from Japanese technology.
2. Completely Meet GMP
3. Material contact part all use SUS316L
4. Using Japan NSK bearings
5. Siemens Inverter, power-saving, machine-protect, keeping the machine working stably
6. Burgmamn mechanical seal, seal good, long working life, keep the homogenizer work 24 hours continually.
7. Slow stirring axle adopts 2 sets of mechanical seal and 2 sets frame oil seal, make the seal saver.
8. Stirring scrap and middle stirring rotating the opposite direction make the mixing more equally
9. Safety protecting functions, make the produce saver
10. Install a fall buffer unit on the hydro-cylinder in the hydraulic system; keep the cover up and down stable.
Specifications:
| Capacity | Volume 200L | ||
| Kettle Cover | Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp | ||
| Mixing pot | Material | Inner layer: SUS316L thickness: 3mm | |
| Middle layer: SUS304 thickness: 2mm | |||
| Outside layer: SUS304 thickness:2mm | |||
| configuration | Bottom material exhaust, size: 1.5” | ||
| Temp. sensor (0-199℃) | |||
| Electrical heating: 12kw, cooling water inlet | |||
| Stirring system | Homogenizer |
1．Material: SUS316L; standard homogenizer 2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min |
|
| Stirring scrap and middle stirring | Material: SUS316L,Scrap material: PTFE | ||
|
1. Stirring scrap and middle stirring use the same motor 2,Power:1.5kw/380V/50Hz；RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction |
|||
| Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring. | |||
| Vacuum system |
1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open) |
||
| Heating method | Jacket electrical heating/Seam Heating | ||
| Exhaust method | Electric doom and bottom discharge or positive pressure discharge material | ||
| Pressure | Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa | ||
| Control box | SUS304 , 1.2mm thickness | ||
| Dimension | 3500mm×2450mm×2250~3150 mm | ||
| Shelf is SS, platform with raised platform and SS guardrail | |||
| Spare parts | One year spare parts and tools | ||
| Guarantee | One year | ||
| Using life | More than 15 years | ||
|
Oil pot |
Design volume | 100L |
| Working capacity | 90L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw | |
|
Water pot |
Design volume | 160L |
| Working capacity | 150L | |
| Stirring power | 1.1kw | |
| Stirring speed | 1400 RPM | |
| Heating power | 12 Kw |
Machine Details
Application
This machine belongs to a round bottle labeling machinewhich can be used for the full-cycle and half-cycle labeling of various circular bottles,and it has been widelyapplied to the round bottle products labeling of differentsizes such as round jars, round bottle, round cans incosmetics, food, medicine, daily chemical and otherlight industries.
