SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer

Product Details:

Place of Origin: China
Brand Name: LTPM CHINA
Certification: CE,SGS
Model Number: LTRZ-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Packaging Details: Export Standard Wooden Case
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Mixer Type: Homogenizer Application: Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage: 380V 50HZ Contact Part Material: SUS316
Using Life: More Than 15 Years Pot Working Pressure: -0.090 Mpa
Jacket Working Pressure: 0.2Mpa Spare Parts: One Year Spare Parts And Tools
High Light:

SUS316 Skin Cream Mixing Machine

,

Vacuum Emulsifying Homogenizer

,

3500r/Min Skin Cream Mixing Machine

Product Description

Cosmetic Skin Cream Lotion Making Machine Cream Mixing Machine Vacuum Emulsifying Mixer Homogenizer



The machine has triple blender, hydraulic lift cover, high-speed homogeneity blender (Speed is 0-3500r/min, frequency speed regulation) and low-speed scraper blender (Speed is 0-40r/min, frequency speed regulation). Fast-cutting vortex emulsification blender is used in the homogenizer part, which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler. The machine draws powder material by the way of vacuum in order to prevent the powder flying. The whole working procedure is operated in the condition of vacuum in order to prevent the material coming into being bubble after high-speed blending and reach the request of sanitation and asepsis. CIP cleaning system is equipped in this system.



The contact part of vessel and material is made from SUS316L material. Mirror finish of the inside surface is 300EMSH. In order to ensure the stabilization of the control, the vacuum pump is the products of Germany Siemens Company, the button is produced by Japan Fuji Company, the transducer is the product of Japan Matsushita Electric Industries and the electro-control part is the product of Siemens Company. The machine is made completely according to the GMP request, which is the most advanced and most perfect cream production equipment.


The machine is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology. The machine is made up of pretreatment boiler, vacuum emulsification blending boiler, vacuum pump, hydraulic system and worktable.
The machine has easy operation, steady capability, good homogeneity, high efficiency, reasonable structure, small volume and high automation level and easily clean.

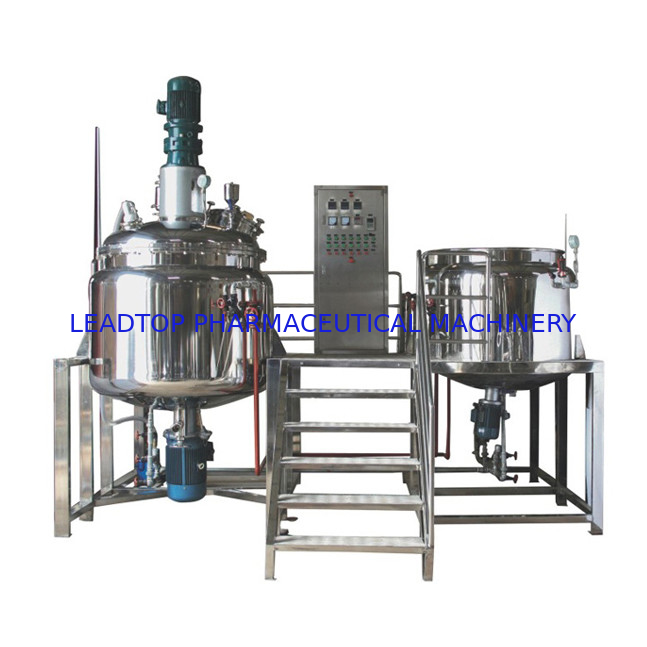

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer 0





Usage

LTRZ-Series vacuum emulsification blender is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology. The machine is made up of pretreatment boiler, vacuum emulsification blending boiler,vacuum pump, hydraulic system and worktable.

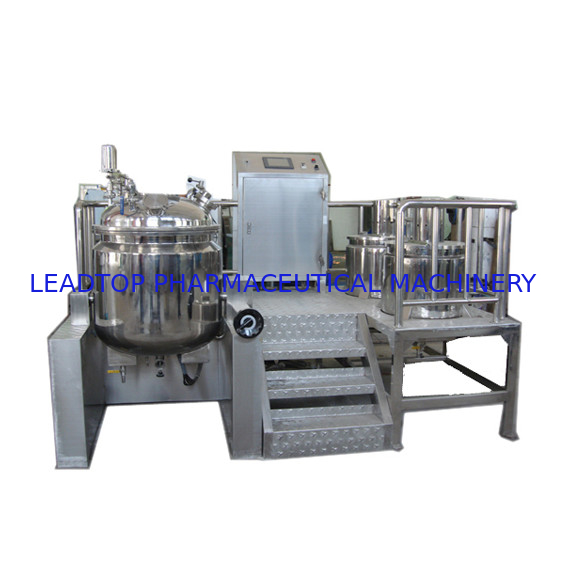

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer 1





Specifications:



Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years





Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw





Characteristic

This unit has such features as simple operation, stable performance, good homogenization, high production efficiency, convenient cleaning, reasonable structure, small floor space, and high automatization etc.

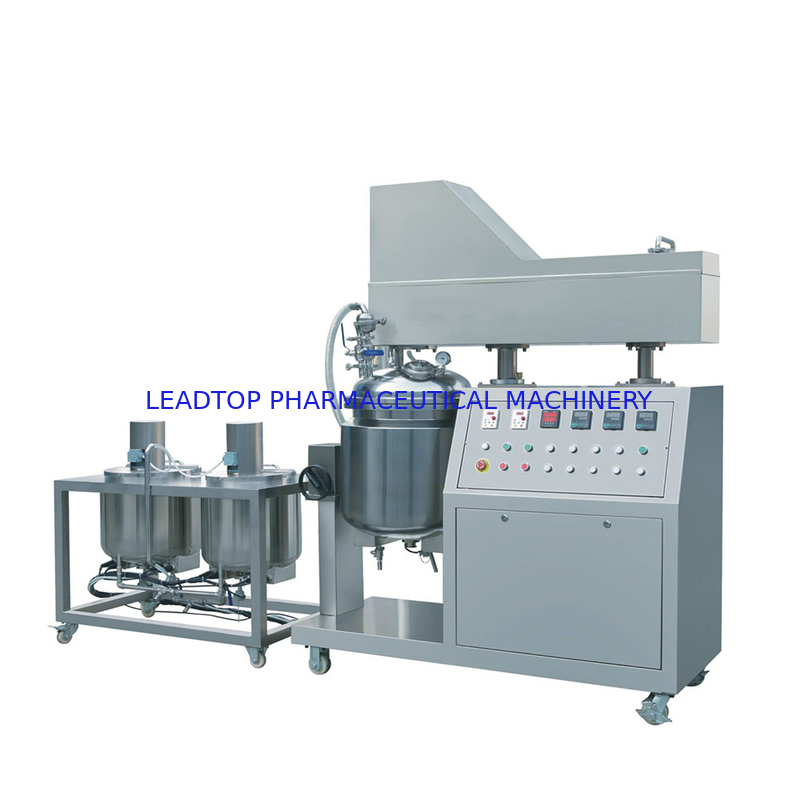

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer 2



Cream shape after emulsification and mixing

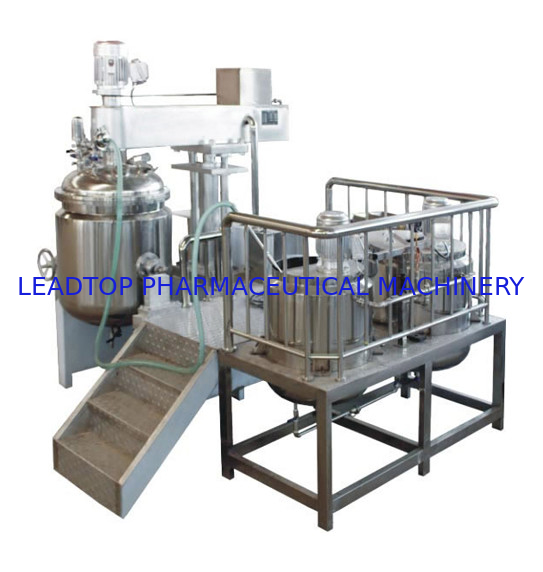

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer 3
1. All reaction is operated under a sealed condition to prevent dust/microorganism contamination
2. Electric heating rod to heat the tank, automatic heating control;
3. With a cooling jacket for tank cooling. Easy operation. The jacket is wrapped by an insulation layer

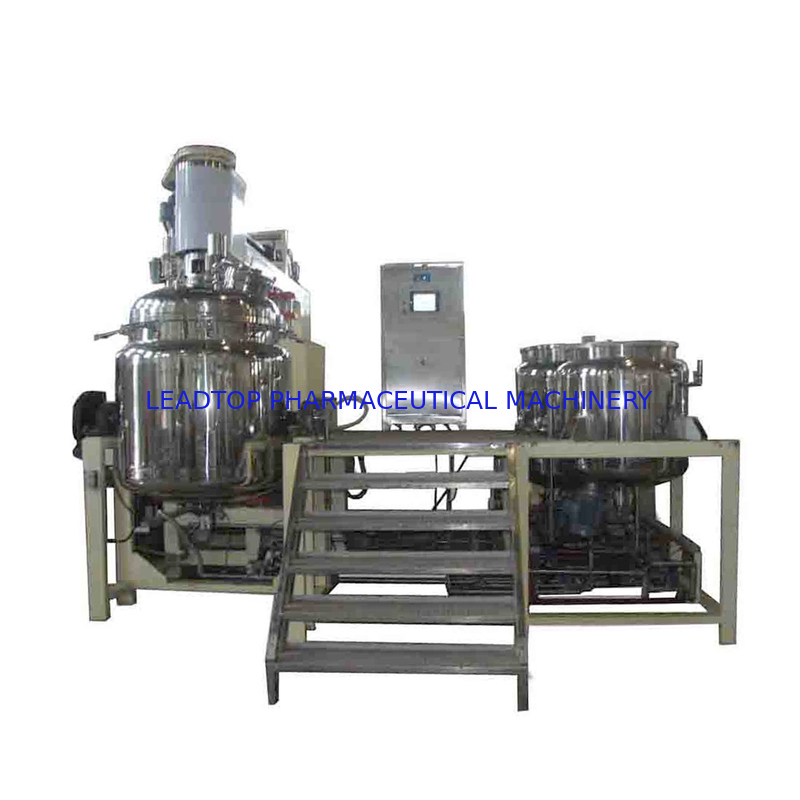

SUS316 Cosmetic Skin Cream Mixing Machine Vacuum Emulsifying Homogenizer 4
