Hard Gelatin Empty Capsule Encapsulation Machine PLC Control

Name: Hard Gelatin Empty Capsule Encapsulation Machine PLC Control
Brand: Leadtop Pharmaceutical Machinery
SKU: JTJ-A
Price: 145.00 USD
Availability: InStock

Brand Name:	LTPM CHINA
Model Number:	JTJ-A
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	30% TT as deposit and 70% before shipping
Supply Ability:	25 sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Model:

JTJ-A

Capsule Size:

00#,0#,1#,2#,3#,4#,5# Are Available

Vacuum Pump:

XD-040(40m³/hour)

Capacity Of Air Compressor:

0.1m³/min

Noise:

Less Than 60dB (A)

Overall Dimensions:

1200*700*1600mm

Packing Dimensions:

1800*800*1800mm

Net Weight:

330Kg

Packaging Details:

Wooden Case

Supply Ability:

25 sets/Month

Highlight:

Hard Gelatin Capsule Encapsulation Machine

PLC Capsule Encapsulation Machine

12000pcs/h Capsule Encapsulation Machine

Product Description

Semi Automatic Hard Gelatin Pill Empty Capsules Filling Hand Machines Capsule Filler Encapsulation Machine

JTJ-Series capsule filling machine is a new efficient equipment based on old type after research and development: easier more intuitive and higher loading in capsule dropping, U-turning, vacuum separation in comparison with the old type. The new type of capsule orientating adopts columns pill positioning design, which shortens the time in the replacement of mould from the original 30 minutes to 5-8 minutes. This machine is one type of electricity and pneumatic combined control, automatic counting electronics, programmable controller and frequency conversion speed regulating device. Instead of manual filling, it reduces labor intensity, which is the ideal equipment for capsule filling for small and medium-sized pharmaceutical companies, pharmaceutical research and development institutions and hospital preparation room.

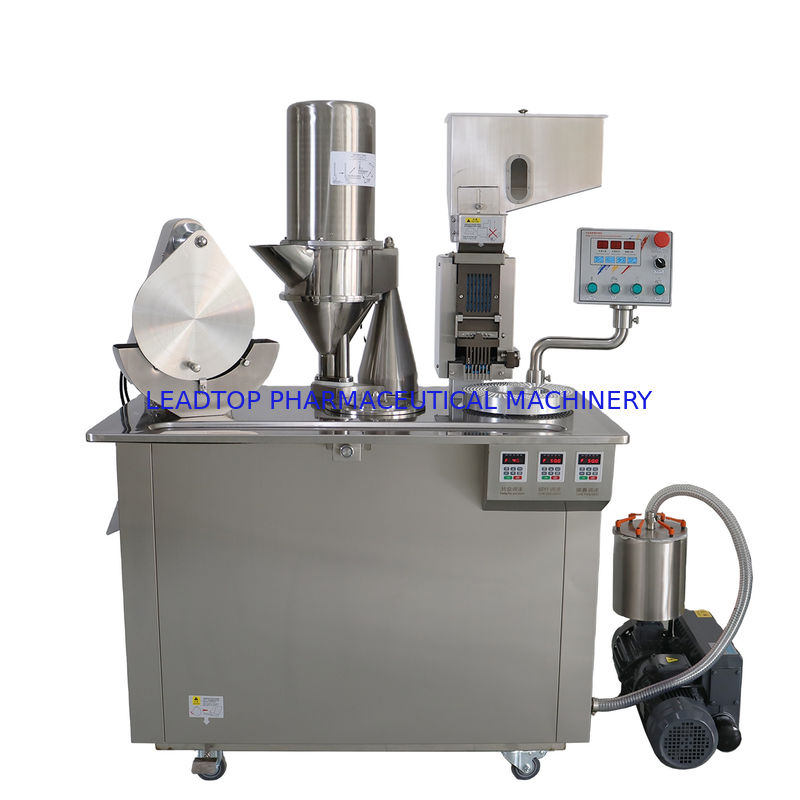

Hard Gelatin Empty Capsule Encapsulation Machine PLC Control 0

Main Features:

So it can decrease the working intensity and increase the working efficiency, this kind of machines meet the requirement of pharmaceutical sanitary, it is suitable for filling powder and granular material in pharmacy and health food industry into capsule.

Integrating machine,electricity and air, it adopts miro-computer PLC control with touch screen panel operation, it adjusts the speed by frequency conversion, equipped with electirc auto counting device to complete the placing, separating, filling and locking for capsule respectively.

Main Technical Data:

Model:	JTJ-Series
Capsule Size:	#00-#5
Vacuum Pump:	XD-040(40m³/hour)
Capacity Of air compressor:	0.1m³/min
Noise:	Less than 60dB (A)
Overall Dimensions:	12007001600mm
Packing Dimensions:	18008001800mm
Net Weight:	330Kg
Gross Weight:	525Kg
Capacity:	12,000capsules/hour
Power Supply:	380V 50Hz 2.2Kw

Application
Applicable capsule:000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsule

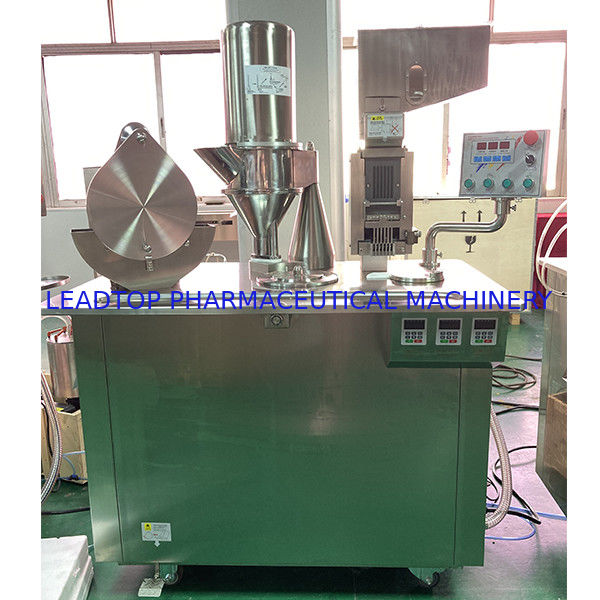

Hard Gelatin Empty Capsule Encapsulation Machine PLC Control 1

Machine Details Images

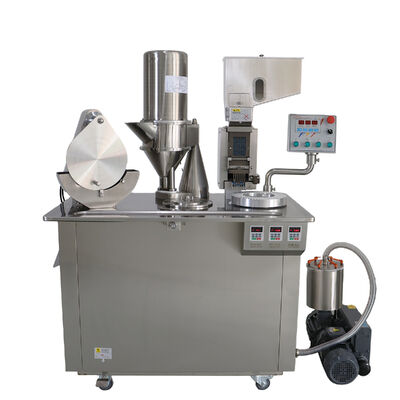

Hard Gelatin Empty Capsule Encapsulation Machine PLC Control 2

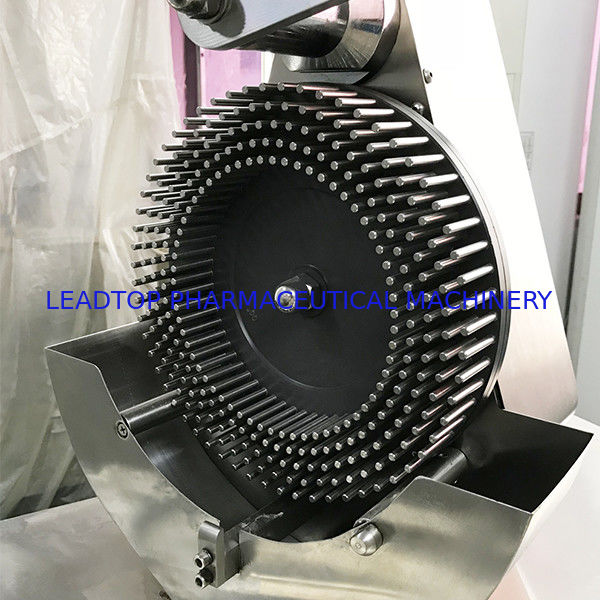

Mold Picture

Hard Gelatin Empty Capsule Encapsulation Machine PLC Control 3
