Place of Origin:
china
Brand Name:
LTPM CHINA
Certification:
CE
Model Number:
JTJ-A
Contact Us
Stainless Steel Semi Automatic Capsules Pharmaceutical Pill Filling Machine Capsule Filling Machine Pharmaceutical
Pharmaceutical grade semi-automatic capsule filling machine for herb powder and hard gelatin capsules, which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with power and grain.
This Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.
This machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump. With automatic locking capsules and automatic discharging function.
China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.
Main Features:
1) semi-automatic capsule filling machine is controlled by step-less frequency conversion and pneumatic device, and adopts electronic counter.
2)semi-automatic capsule filling machine can finish position, separation, filling, locking of capsule, and reduce the labor intensity and improve working efficiency.
Main Technical Data:
| Model: | JTJ-A |
| Capsule Size: | #00-#5 |
| Vacuum Pump: | XD-040(40m³/hour) |
| Capacity Of air compressor: | 0.1m³/min |
| Noise: | Less than 60dB (A) |
| Overall Dimensions: | 1200*700*1600mm |
| Packing Dimensions: | 1800*800*1800mm |
| Net Weight: | 330Kg |
| Gross Weight: | 525Kg |
| Capacity: | 12,000capsules/hour |
| Power Supply: | 380V 50Hz 2.2Kw |
Application
Applicable capsule:000#, 00L#, 00#, 0#, 1#, 2#, 3#, 4# mechanism standard capsule

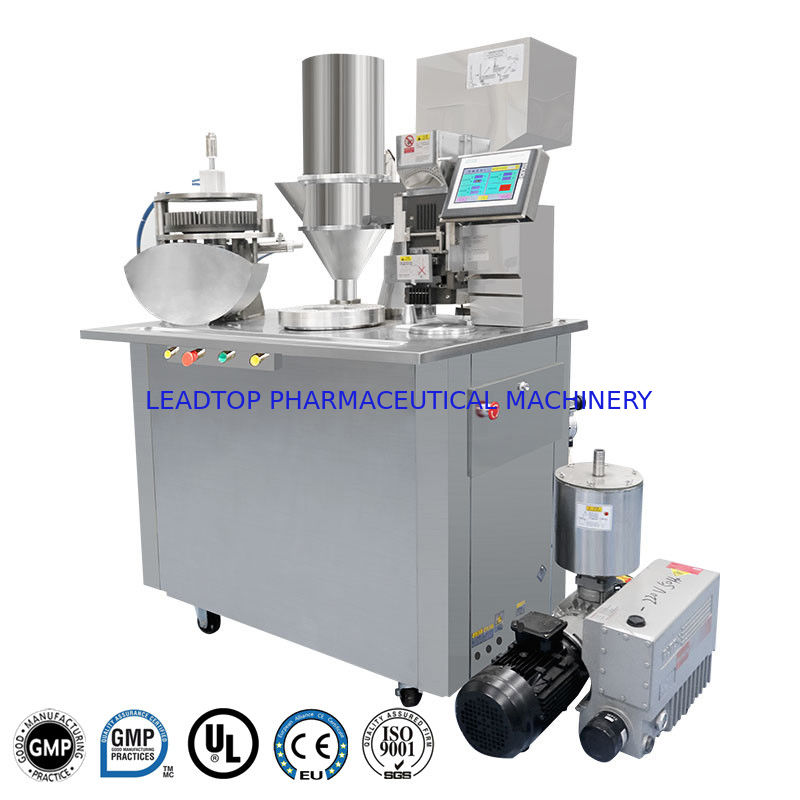

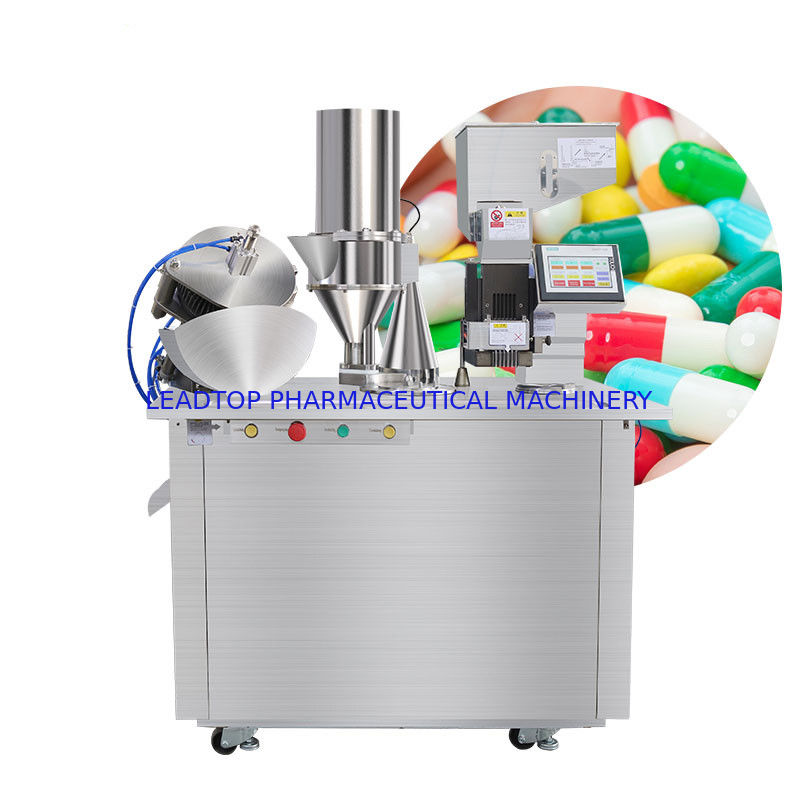

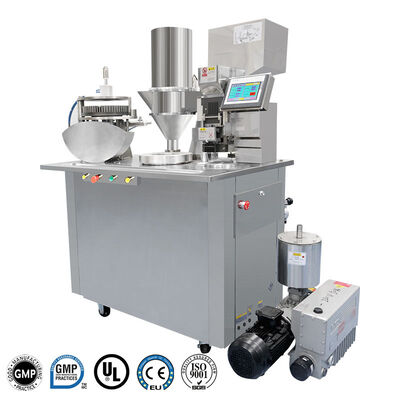

Machine Details Images
