PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw

Softgel Blister Packaging Machine

PVC Aluminum Foil Blister Packaging Machine

Blister Packaging Machine 2.2kw

Place of Origin:

CHINA

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

DPP-Series

Contact Us

Request A Quote
PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw
Product Details
Stroke (mm):
40-160 Can Be Manufactured As User’s Requirements
Capacity:
45cutting/min
Packaging Type:
Alu/PVC And Alu/Alu Package
Control System:
Micro Computer
Feeding::
Universal Feeder
Power:
2.2kw
Standard Plate(mm):
80×57 Can Be Manufactured As User’s Requirements
Air Pressure(Mpa):
0.4-0.6
Air Supply:
≥0.3 M³/min
Mould Cooling:
Tap Water Or Recycling Water
RELATED PRODUCTS
Good price High Speed Capsule Blister Packaging Machine Automatic Butter 160mm online

High Speed Capsule Blister Packaging Machine Automatic Butter 160mm

Get Best Price
Good price Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw online

Full Automatic Oil Blister Packing Machine Honey Chocolate Sauce Cream Syrup 1.6kw

Get Best Price
Good price Pharma Used Blister Packing Machine Automatic 2400 Pcs/Hour 380V 0.6Mpa online

Pharma Used Blister Packing Machine Automatic 2400 Pcs/Hour 380V 0.6Mpa

Get Best Price
Good price Automatic Capsule Blister Packing Machine Pill / Tablet 4950*740*1700 40mm online

Automatic Capsule Blister Packing Machine Pill / Tablet 4950*740*1700 40mm

Get Best Price
Contact Us
86-0577-65158955
info@chinaleadtop.com
86-0577-65158944
Contact Now
Product Description

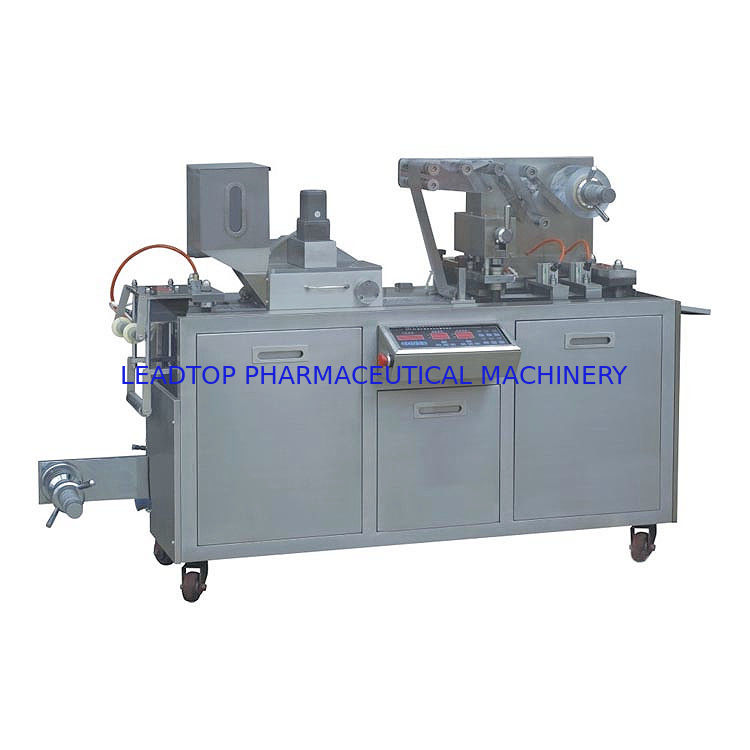

DPP Automatic PVC Aluminum foil Plastic Pill Soft Gel Capsule Tablet Blister Packaging Machine



The machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.





Specifications:

DPP Automatic Blister Packaging Machine

DPP-80
DPP-140
DPP-250
Blanking frequency
PVC-AL: 10-40 times/min AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
PVC-AL: 10-40 times/min
AL-AL: 10-30 times/min
Adjustable scope of feed travel
30-100mm(adjustable)
30-120mm(adjustable)
30-140mm(adjustable)
The max forming area and depth
120mm×90mm×20mm
150mm×120mm×26mm
240mm×130mm×26mm
Wrapper: ALU
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper: PVC
Length: 130mm,
thickness: 0.25-0.5mm
Length: 160mm,
thickness: 0.25-0.5mm
Length: 250mm,
thickness: 0.25-0.5mm
Wrapper: PTP
Length: 130mm,
thickness: 0.02-0.035mm
Length: 160mm,
thickness: 0.02-0.035mm
Length: 250mm,
thickness: 0.02-0.035mm
Wrapper:Dialysis paper
Length:130mm, specification:50-100 gram
Length:160mm, specification:50-100 gram
Length:250mm, specification:50-100 gram
Power of forming heating
1.5KW
2.4KW
3KW
Power of sealing heating
1.5KW
2.4KW
3KW
Main motor power
0.75KW
1.5KW
1.5KW
Machine Voltage
380V/220V 50Hz
Capacity of air compressor
≥0.2m3/min
Pressure: 0.4～0.6MPa
≥0.2m3/min
Pressure: 0.5～0.7MPa
≥0.2m3/min
Pressure: 0.5～0.7MPa
Overall dimension
2070mm×650mm×1060mm
2350×580×1500 mm
3100×670×1650mm
Weight
560Kg
800KG
1500KG

Product design:
Product design: OEM/ODM custom design the shape and size of the blister product

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw 0



Machine Products

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw 1

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw 2



Main features

With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.

PVC Aluminum Foil Softgel Blister Packaging Machine 2.2kw 3
