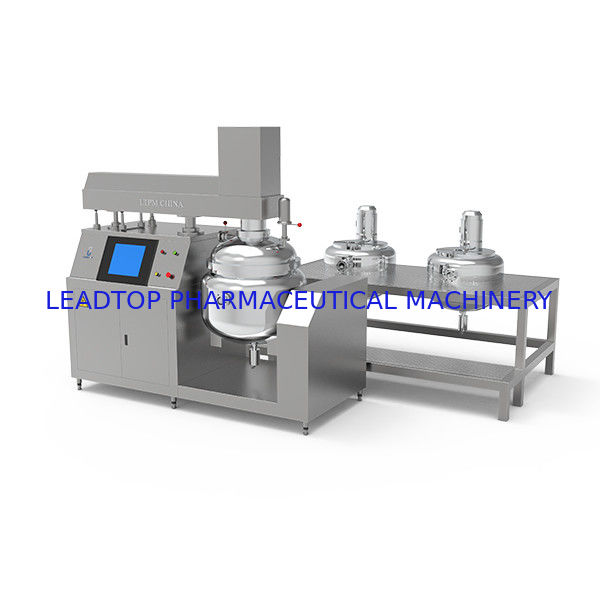

Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer

Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer

Vacuum Homogenizer Mixer

Viscous Fluid Vacuum Homogenizer

Cosmetic Vacuum Homogenizer

Place of Origin:

China

Brand Name:

LTPM CHINA

Certification:

CE,SGS

Model Number:

LTRZ-Series

Contact Us

Request A Quote
Product Details
Mixer Type:
Homogenizer
Application:
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage:
380V 50HZ
Contact Part Material:
SUS316
Using Life:
More Than 15 Years
Pot Working Pressure:
-0.090 Mpa
Jacket Working Pressure:
0.2Mpa
Spare Parts:
One Year Spare Parts And Tools
Product Description





The designing of LTRZ-Seris Vacuum Emulsifying Mixer is based on importing advanced technology of professional cosmetic and pharmaceutical ointment producing workmanship from abroad. It is composed of emulsifying mixer, vacuum system, electric controlsystem etc. The whole-set of this equipment is composed of emulsifying mixing pot, Vacuum system, Hydraulic system, and electrical controlsystem.





Main Features

1) Apply vacuum state so raw materials can be sucked inside and when mixing there will be no bubbles.

2) With three layers each pot can be heated and main pot can be electrically tilted when discharge.

3) Paddle and homogenizer will work together to homogenize and mix at the same time. Time saved with better effect.

4) Auto control for easy operating,both time and rotating speed can be controlled to suit different production needs.

5) With spray balls for self-cleaning based on mirror polished SS304 or SS316L(pharmaceutical).

6) Customizing supported.





Specifications:





Capacity Volume 200L
Kettle Cover Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot Material Inner layer: SUS316L thickness: 3mm
Middle layer: SUS304 thickness: 2mm
Outside layer: SUS304 thickness:2mm
configuration Bottom material exhaust, size: 1.5”
Temp. sensor (0-199℃)
Electrical heating: 12kw, cooling water inlet
Stirring system Homogenizer

1.Material: SUS316L; standard homogenizer

2. Power: 4 kw/380/50Hz; RPM: 0--4000R/Min

Stirring scrap and middle stirring Material: SUS316L,Scrap material: PTFE

1. Stirring scrap and middle stirring use the same motor

2,Power:1.5kw/380V/50Hz;RPM:0~86r/min(Frequency control)

3. Stirring scrap and middle stirring rotating the opposite direction

Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system

1. Vacuum pump: water recycle, power 2.35kw/380V/50Hz

2. With pressure sensor (during vacuum condition, hydraulic can not open)

Heating method Jacket electrical heating/Seam Heating
Exhaust method Electric doom and bottom discharge or positive pressure discharge material
Pressure Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box SUS304 , 1.2mm thickness
Dimension 3500mm×2450mm×2250~3150 mm
Shelf is SS, platform with raised platform and SS guardrail
Spare parts One year spare parts and tools
Guarantee One year
Using life More than 15 years






Oil pot

Design volume 100L
Working capacity 90L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Water pot

Design volume 160L
Working capacity 150L
Stirring power 1.1kw
Stirring speed 1400 RPM
Heating power 12 Kw



Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer 0



Machine Part Details



Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer 1

Mixer
Frame type mixer with scrapers

Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer 2
  • Control

PLC control

Product Application
Chemical Cosmetic Viscous Fluid Vacuum Homogenizer Mixer 3

Chemical

paint,coating,oil,ink

fertilizer,polishes,pigment





Food&Pharmaceutical

ointment,paste,cream

tablet coating

mayonnaise,sauce,dressing,

ingredients,

syrup,beverage,dairy,



Cosmetic&Cleaning products

face cream, body cream,

lotion,detergent,toothpaste,

surfactant
