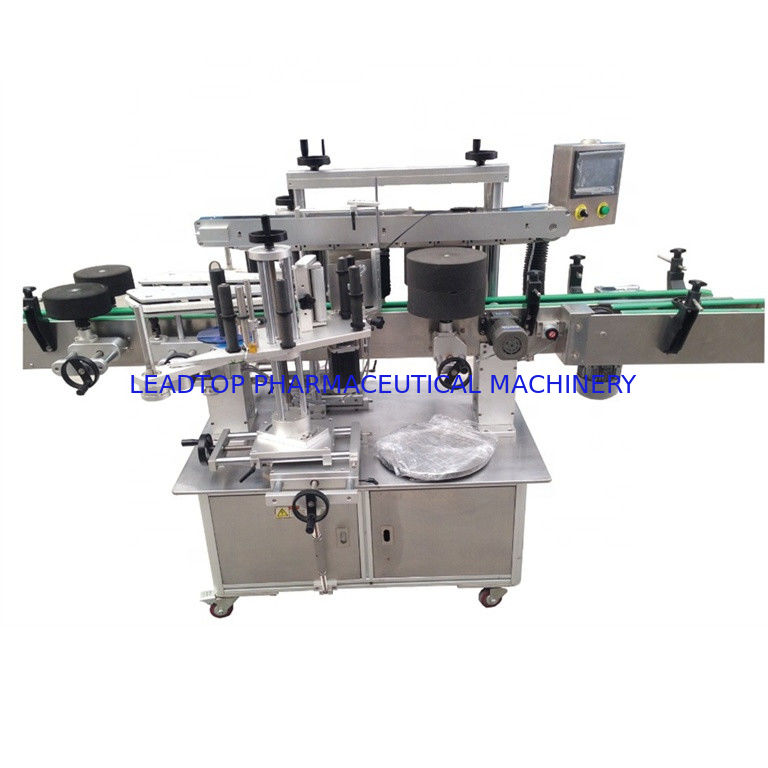

20 Carton/Min Self Adhesive Sticker Labeling Machine

20 Carton/Min Self Adhesive Sticker Labeling Machine

Product Details:

Place of Origin: China
Brand Name: LTPM China
Certification: CE, GMP
Model Number: MT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 25days
Payment Terms: L/C, T/T
Supply Ability: 25sets/month
Get Best Price Contact Now

Detail Information

Voltage: 220V/380V, 50/60Hz Capacity: 20-130 Carton/min
Bottle Diameter: 25-134mm Type: Labeling Machine
Condition: New Usage: Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
High Light:

20 Carton/Min Sticker Labeling Machine

,

800W Sticker Labeling Machine

,

134mm Adhesive Bottle Labeling Machine

Product Description

Introduction
1.1 Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

1.2 Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

1.3 Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.

1.4 Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular.


Operation
2.1 the sensor detect the product,transmit the signal to labeling control system;

2.2 after the signal has been processed by the PLC,a label is send out at an appropriate time and attach on a desired position of the container;

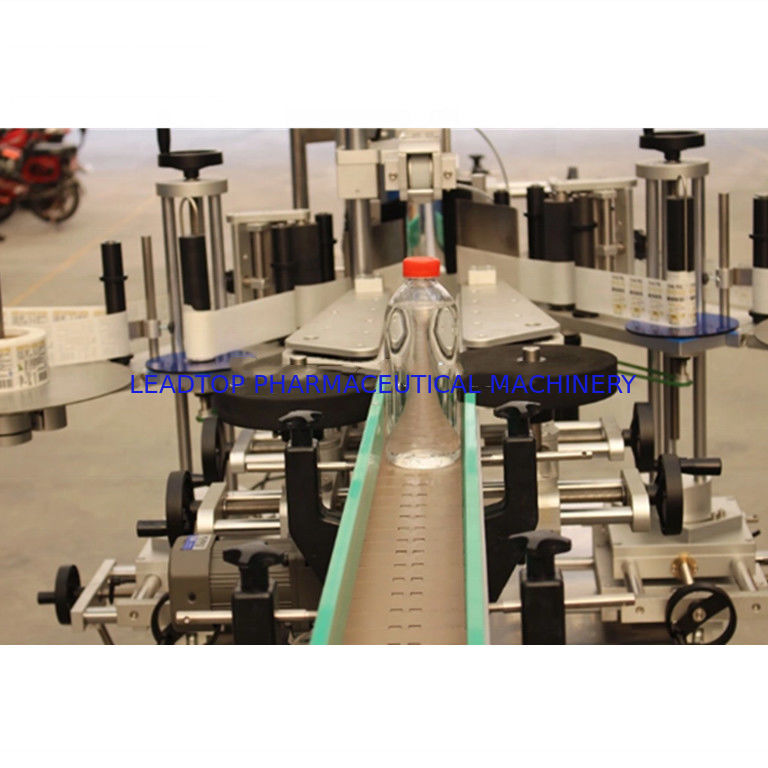

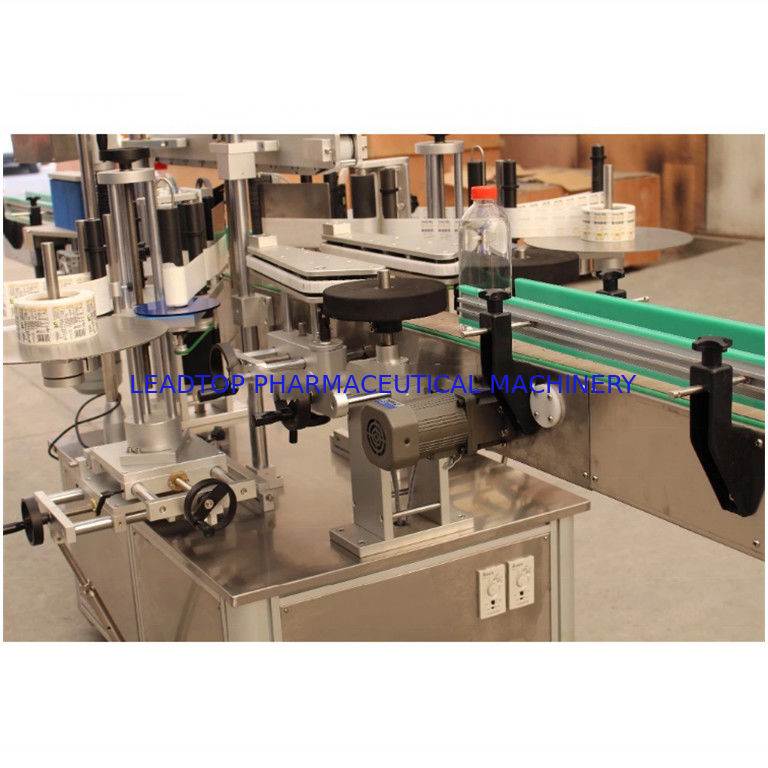

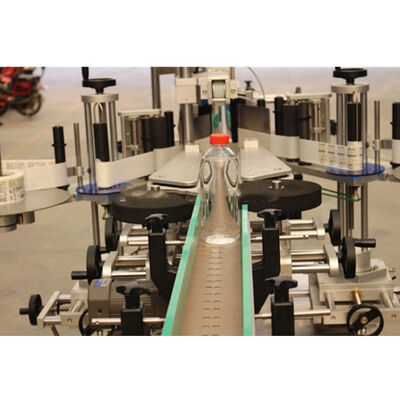

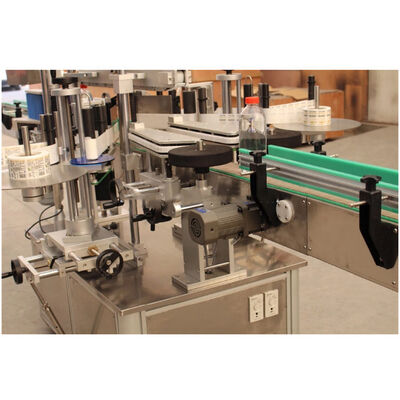

2.3 the container go through the press plate unit,the press wheel lead the rotation of container,the label is pressed to fit smoothly, the labeling operation is finished.



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)
