Place of Origin:
China
Brand Name:
LTPM China
Certification:
CE, GMP
Model Number:
MT-Series
Contact Us
Video
Why Choose Us
1. More than 15 years manufacture in packing machine
2. 100% QC inspection before shipment
3. 5 years warranty
4. Product Certificated by CE
Introduction:

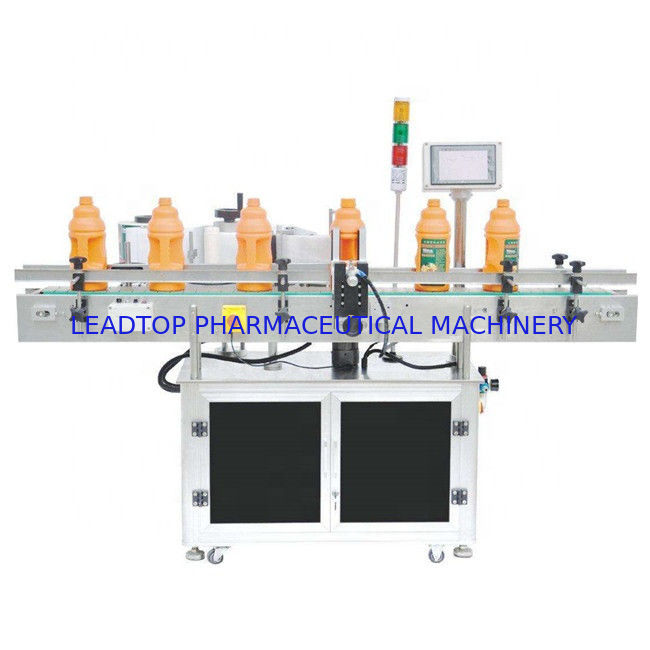

ARLM-200B Automatic Labeling Machine can meet the needs of all round bottle labeling or semi circle labeling, bottle labeling switching between simple, convenient adjustment;
Wide application range: self-adhesive labels, adhesive film, electronic monitoring code, bar code etc..
Application Industry: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastics and other industries.
Application example: PET round bottle labeling, plastic bottle labeling, canned food, etc.
Technical Parameters:
| Model | MT-130D |
| The standard system | Step Motor |
| Capacity | 20-130 carton/min |
| Operating Direction | Left or right |
| Label speed | ≤35 m/min |
| Tags volume inner diameter | 76 mm |
| Tags volume outer diameter | 350 mm (max) |
| Label Specifications | Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand) |
| Labeling accuracy | ±1.0mm (subject to the roughness of the plane) |
| Weight | 200KGS |
| Total motor power | 800W |
| Power supply | AC220V 50/60HZ Single phase |
| Size appearance (mm) | 2200 (L) 1800 (W) 1500(H) |
Features:
1.Three rollers fixing labeling device, make label close-fitting.labeling smooth, no wrinkles, improve packaging quality.
2.Flexible application, bottle stand vertical labeling, with automatic sub bottle function, can be stand-alone production, can also be connected to the production line.
3. Intelligent control, automatic photoelectric tracking, with no matter no labeling, no standard automatic calibration and label automatic detection function, prevent leakage and label waste.
4. High stability, Matsushita PLC+ Matsushita touch screen + needle + Matsushita Electric eye Leuze label consisting of senior electric eye control system.
5. Simple adjustment, labeling speed, conveying speed, bottle speed can be achieved stepless speed regulation, according to the need to adjust.
6.Durable, using three bar adjustment mechanism, make full use of triangular stability, solid durable machine. Made of stainless steel and advanced aluminum alloy, accord with CE Production requirements.
Note:Standard machine can only be used normal round bottles , can not be too soft or bulge, can be modified if the bottle has grooves
Customized Functions :
1.Can add coding,printing
2.The conveyor can be replaced with a chain plate
3.The width,length,hight can be customize
4.The custom function is applicable to all automatic labeling machines
5.The machine can only be used to sticker labels, can be customized to stick transparent labels, need to change the optical fiber to transparent optical fiber.(Conventional label by induction color; Transparent label by induction thickness)
