products details

Home Products

10ml Reagent Perfume Liquid Filling Packing Machine

Brand Name:	LTPM CHINA
Model Number:	DPT-Series
MOQ:	1 Set/Sets
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15Sets per mouth

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang,China

Certification:

Max Forming Depth:

12mm*2

Cutting Frequency:

0-25 Times/min, 125 Ampoule/min (10ml/ampoule)

Packaging Material:

PVC/PE (0.2-0.4)*240mm

Capacity Volume:

1-100ml/ampoule

Total Power:

8.5kw

Voltage:

220V-380V/50HZ

Weight:

1200kgs

Dimension:

3200×850×2000 Mm

Packaging Details:

wooden

Supply Ability:

15Sets per mouth

Highlight:

Reagent Liquid Filling Packing Machine

10ml Liquid Filling Packing Machine

PLC Liquid Filling Packing Machine

Product Description

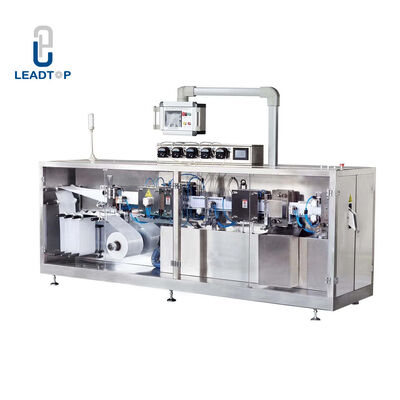

Automatic Perfume Liquid Bottle Filling And Packing Machine Detection Reagent Filling Machine

This machine is a kind of compact type liquid filling and sealing machine, it is suitable for small batch filling for different product and widely used for filling oral liquid, perfume, liquid, essential oil, olive oil,honey,cream, health care product etc in pharmaceutical, herbal, pesticide, cosmetic, food and supplement area

Main features:
1.PLC control, steeples frequency conversion adjustment.
2.Full Automatic plastic molding, filling, batch number, cut the tail, cutting,
3.man-machine interface device, the operation is simple and clear.
4.filling head does not drip, no bubble, no overflow.
5.and related parts in contact with the liquid are all made of high quality stainless steel material, conform to GMP standard.
6.main pneumatic components, electrical appliances imported accessories.
7.electronic peristaltic pump control filling system and mechanical filling two kinds, accurate measurement error is small

10ml Reagent Perfume Liquid Filling Packing Machine 0

10ml Reagent Perfume Liquid Filling Packing Machine 1

10ml Reagent Perfume Liquid Filling Packing Machine 2

10ml Reagent Perfume Liquid Filling Packing Machine 3

10ml Reagent Perfume Liquid Filling Packing Machine 4

10ml Reagent Perfume Liquid Filling Packing Machine 5

Specification

Max Forming Depth	12 mm
Cutting Frequency	0-25 times
Filling heads	5 pcs
Packing materials	PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume	1-50ml
Total Power	8.5kw
Voltage	220V-380V/50HZ
Weight	1200 kgs
Dimension	3200×850×2000 m

Products

10ml Reagent Perfume Liquid Filling Packing Machine 6

10ml Reagent Perfume Liquid Filling Packing Machine 7

The technical documentation shipped with equipment are as folow:
1.Packing list
2.Operation manual
3.Maintenance manual
4.Electrical principle diagram
5.Special Documentation will be appointed by both parties

Technical Service
Packing&Transportation
Seller should use new and firm special packing cases according with china quarantine standard,which are suitable for long
distance transporation, antirust and damp proof.

Training
Seller takes charge of providing technical training to buyer. Training contents equipment structure,maintenance, control and operation. Buyer’s technician can master relevant operation and maintenance skills, adjust technics skillfully and hands faults in time
