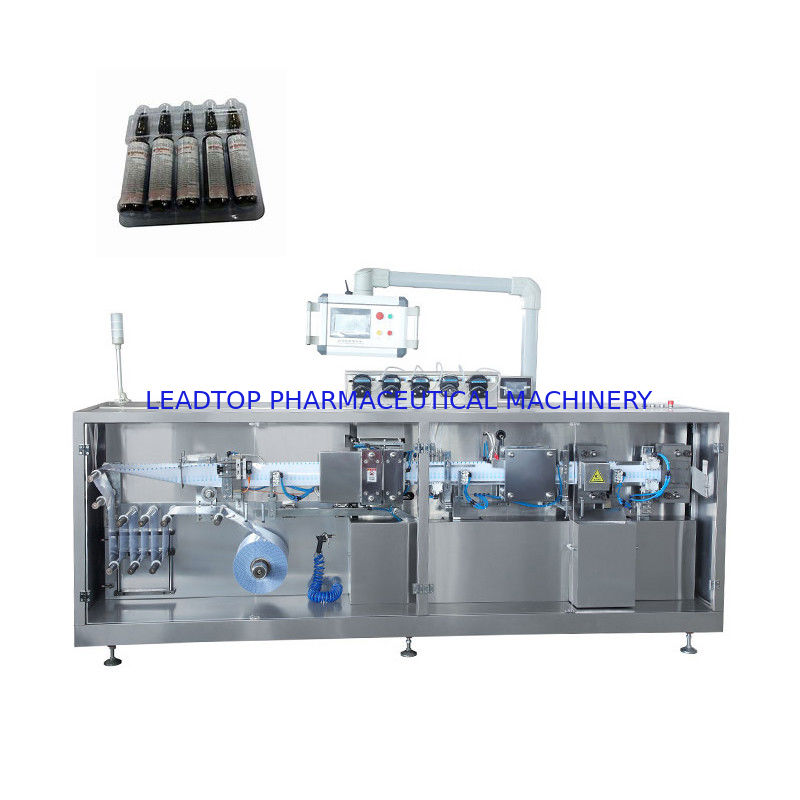

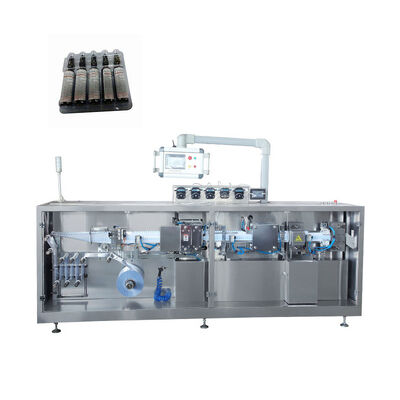

Pesticide Liquid Ampoule Forming Filling Sealing Machine

Pesticide Liquid Ampoule Forming Filling Sealing Machine

Product Details:

Place of Origin: Zhejiang,China
Brand Name: LTPM CHINA
Certification: CE
Model Number: DPT-Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: wooden
Delivery Time: 30 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15Sets per mouth
Get Best Price Contact Now

Detail Information

Max Forming Depth: 12mm*2 Cutting Frequency: 0-25 Times/min, 125 Ampoule/min (10ml/ampoule)
Packaging Material: PVC/PE (0.2-0.4)*240mm Capacity Volume: 1-100ml/ampoule
Total Power: 8.5kw Voltage: 220V-380V/50HZ
Weight: 1200kgs Dimension: 3200×850×2000 Mm
High Light:

Ampoule Forming Filling Sealing Machine

,

125pcs/min Ampoule Filling Sealing Machine

,

Ampoule Filling Sealing Machine

Product Description

Pesticide Liquid Agricultural Chemicals Plastic Ampoule Forming Filling Sealing Machine



Machine Packaging is fit for medical , food , cosmetic product packaging such as oral liquid , chocolate cream ,jelly with soft
granule,medical gel , Aloe-gel,toner, hair dye,hand lotion,perfume and so on .


*This machine is controlled by PLC, the PLC brand could be choiced by customer, Siemens or Schneider or arranged by customer
requirements.


*This machine is controlled by PLC , the PLC brand could be selectable by customer, Siemens or Shneider or arranged according to
customer requirements.


*Stepless speed regulation,easy adjustment,running stable,save energy.

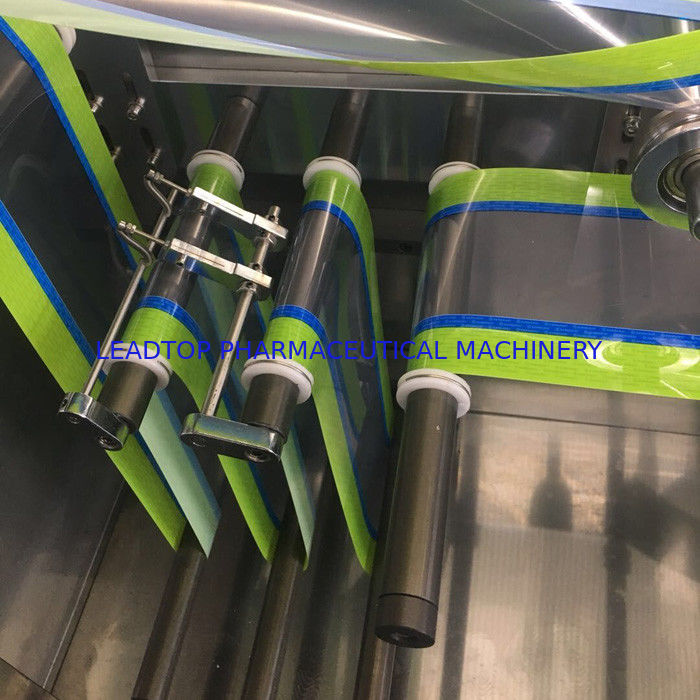

*Film spreading , ampoule forming,dosing,filling,sealing,batch No. coding,break line making,final shape cutting all total 8
working unit are finished automatically.


*Human-Machine Interface touching screen operation, easy to check the machine working data on touching screen, such as packing
speed , size etc.

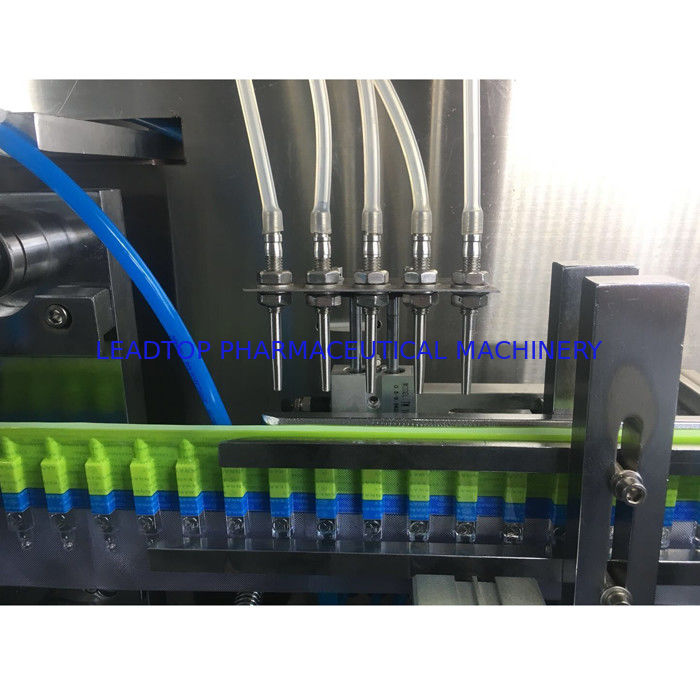

*The Machine Pump will be mechanical pump or Peristaltic pump depend on different product , the filling is no drop , no bubble ,
it has suck back foundation.


*All direct contact with product parts are made of Stainless Steel 316L which is met the standard of GMP.


* Filling tolerance is ≤±1% depend on different products.



Pesticide Liquid Ampoule Forming Filling Sealing Machine 0



Features:
1) It is controlled by PLC, the frequency conversion in finitely variable speeds.
2) All of processes from spreading roll, AMP bottle forming, filling, sealing , printing serial numbers, cutting the end, cutting apart, controlled by programming.
3) The computer human interface has simple and clear operation.
4) The Filling head doesn’t drop. Leak, ride bubbled and spill over.
5) All are made of high-quality stainless steel, accord with the production required
6) Mostly pneumatic components and wirings adopt inward fittins.
7) Automatic and mechanical botting, precise calculation and limited deflection.
8) equiped with Special feeder for corrosion pertiscide liquid





Specification

Max Forming Depth
12 mm
Cutting Frequency
0-25 times
Filling heads
5 pcs
Packing materials
PVC/PE PET/PE(0.2-0.4)×240mm
Filling Volume
1-50ml
Total Power
8.5kw
Voltage
220V-380V/50HZ
Weight
1200 kgs
Dimension
3200×850×2000 m









Pesticide Liquid Ampoule Forming Filling Sealing Machine 1

Pharmaceutical industry: oral liquid, healthcare products, physiological saline, lotion, cough syrup, Chinese medicine oral liquid, etc.
Chemical industry: perfumes, car perfumes, human milk, shower gels, shampoos, essential oil, detergents, hand soap liquid, ink, paste products, etc.
Food industry: linseed oil, castor oil, enzymes, honey, Dendrobium and so on.
The machine is suitable for any kinds of packing material, such as PVC laminated by PE, PVC laminated by LDPE.



Pesticide Liquid Ampoule Forming Filling Sealing Machine 2
