12000pcs/H 3 Bores Hard Gelatin Capsule Filling Machine

12000pcs/H 3 Bores Hard Gelatin Capsule Filling Machine

Hard Gelatin Capsule Filling Machine

3 Bores Capsule Filling Machine

12000pcs/H Capsule Filling Machine

Place of Origin:

china

Brand Name:

LTPM CHINA

Certification:

CE

Model Number:

NJP-400

Contact Us

Request A Quote
Product Details
Brand:
LTPM
Quantity Of Mould Bores:
3pcs
Noise Standard:
<80dB(A)
Bores:
3
Filling Dosage:
Power,pellets
Product Description





The machine designed to meet the volume-produce on the basis of model NJP-200 automatic capsule filling machine. Besides the function that model NJP-200 possess, it also has the lifting mechanism for easy cleaning. It saves the cost and manpower for the enterprise that need volume-produce.



The machine is used for Pharmaceutical, medicine, and chemicals (powder, Pellet, granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.



12000pcs/H 3 Bores Hard Gelatin Capsule Filling Machine 0





Technical Parameters



Machine Model
NJP-200
NJP-400
Max. Output
12000 Capsules/H
24000 Capsules/H
Capsule Size
Suitable for filling capsule size 00#-5# Supro/safefy capsule size:A-E (need to exchange the spare parts/moulds accordingly)
Dosage Type
Powder/Pellet/Tablet
Power Supply
380V 50HZ 3.7KW (Can be made according to the client`svoltage standard)
Noise Index
Less than 75dBA
Machine Size/N.W.
920mm x 800mm x 1900mm Net Weight: 950KG
Packing Size/G.W.
1600mm x 1000mm x 2150mm Gross Weight:1200KG





Featurs And Functions:



1.Touching-Screen, PLC program control panel with LCD.


2.Capsule vacuum positioned mechanism to make the capsule qualified over 99%.


3.Removable powder hopper for cleaning and easy auger adjustment easy to change fills weights.


4.Easy speed selection and closed capsule length adjustment.


5.Electrical Appliance control system approved to CE, and international standard.


6.Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.


7.Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.


8.Large cam mechanism keeps the rotating table of mould together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.


9. With high efficiency, accuracy, and energy saving.


10. Easier to clean, dismantle and re set-up the mould.


11.The working station cam runs under the good lubricating condition, extends the operating life of change parts. 10.Improved the inner design of Mould rotating table, Import 90 pcs beeline bearings for each machine from Japan directly, guaranteed the equipment precision and extended the life of machine.


12. Easier to clean; keep the dosage in accuracy.


13. Enlarge the size of dosage pan (Enlarge 3cm); Increase the powder flowing uniformity in the dosage pan, according to the international standard.

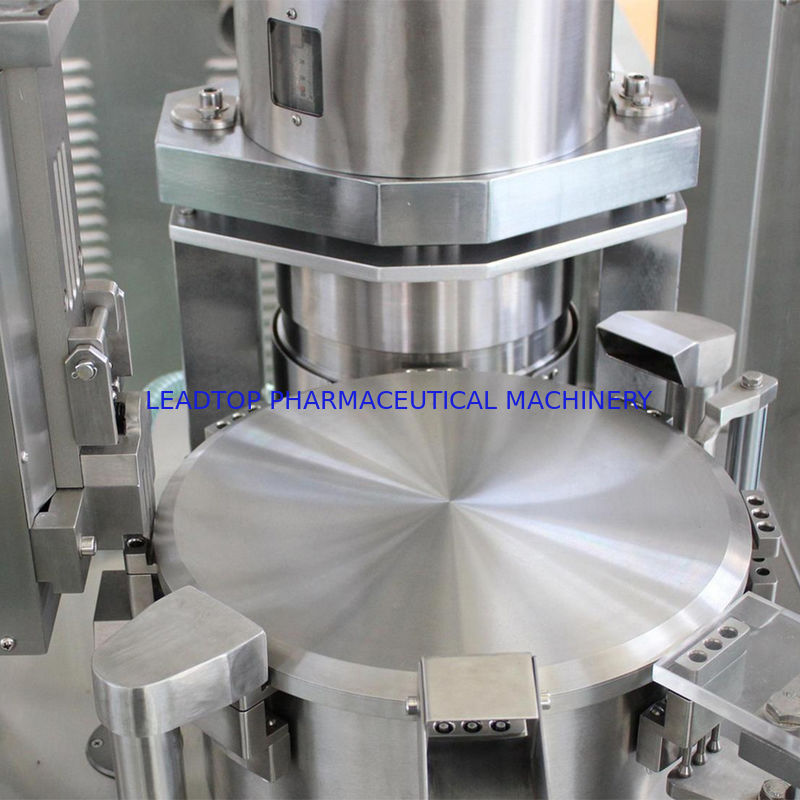

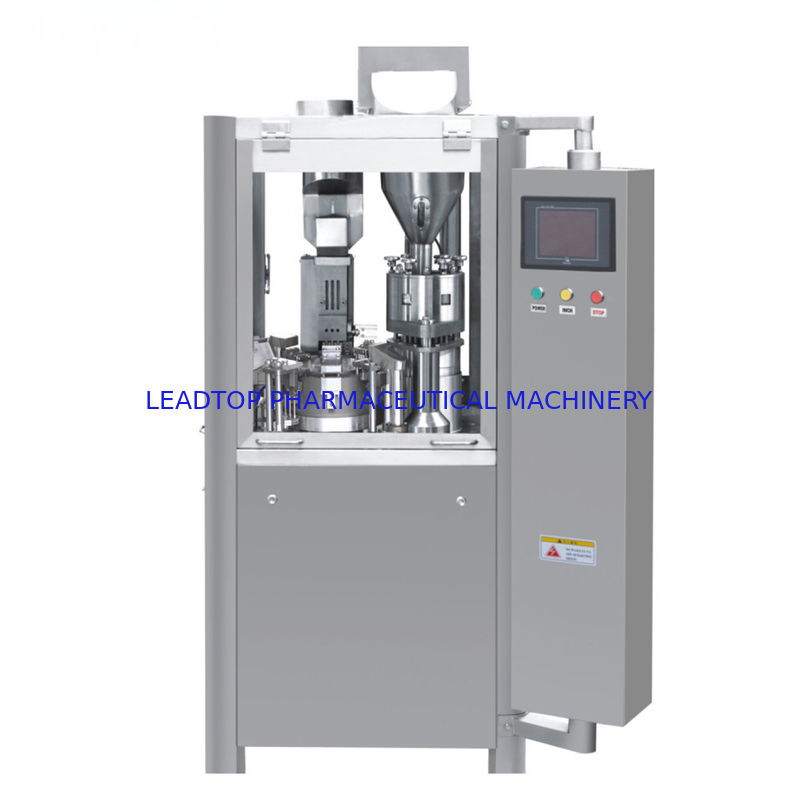

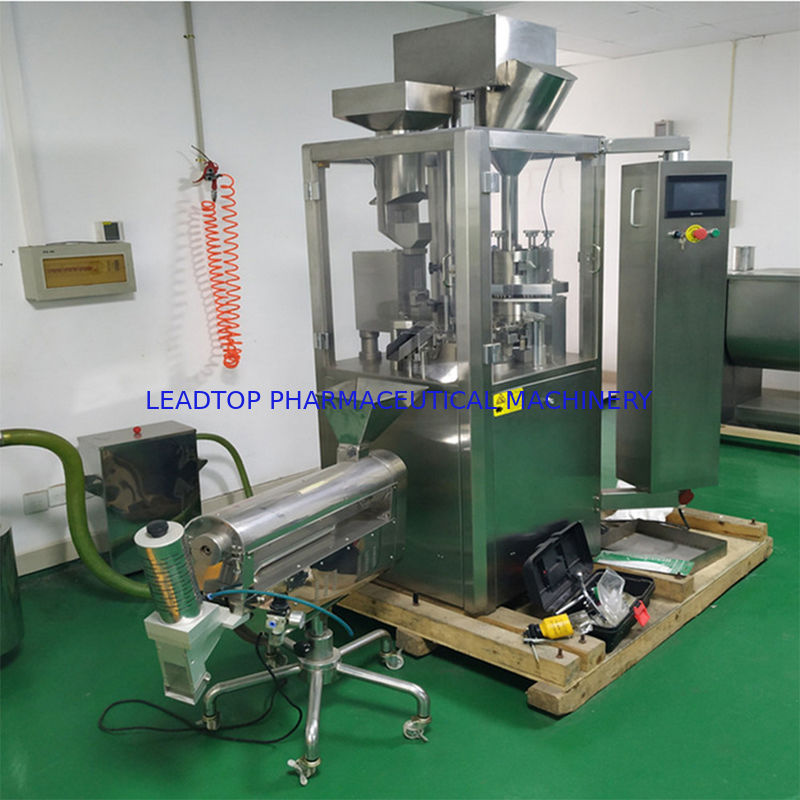

Detailed Images

12000pcs/H 3 Bores Hard Gelatin Capsule Filling Machine 1

12000pcs/H 3 Bores Hard Gelatin Capsule Filling Machine 2
