2ml 5rpm Water Cooling Softgel Encapsulation Machine

2ml 5rpm Water Cooling Softgel Encapsulation Machine

Water Cooling Softgel Encapsulation Machine

5rpm Softgel Encapsulation Machine

2ml Softgel Encapsulation Machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

LTRJ-250

Contact Us

Request A Quote
Product Details
Product Description

Our machine is a new generation of roller die type water cooling type soft gelatin encapsulation machine. It is optimized designed and precise manufactured on the basis of foreign latest technology. The main technical index meets the international advanced level and conforms with the GMP standard. The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc, such as egg shape, fish shape, cylinder, ball shape, calabash shape. It consists of main machine, gelatin melting tank, insulated gelatin storage tank, electric control cabinet, conveyor, shape/drying rotary cage, colloid mill etc.



Advantages:

1. water cooling of this machine ensure clean environment.

2. Adopting air pressure ensure gelatin storage tank conveys gelatin on the ground, ensure better production environment.

3. The capsule conveyance belt adopt food-grade conveyance belt which is non-toxic, non-sticky, and easy to wash.

4. The shaping and drying rotary cage is made of stainless steel mesh panel with no dead corners and easy to clean. An oil basin under the rotary cage ensures no oil dropping during the production.

5. It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.





Specifications:





ITEM/MODEL LTRJ-250
Rotary speed of die roll 0-5rpm
Supplying Volume for flow single-pillar pistol 0-2ml
Difference among filling volume ±2%
Power for whole machine 17 KW
Power supply 380V 50HZ
Dimention 2420×1180×2210mm
Weight of whole machine 1800Kg

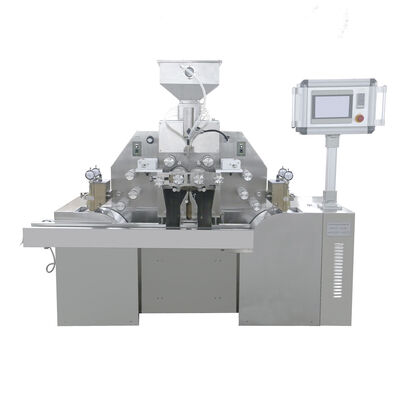

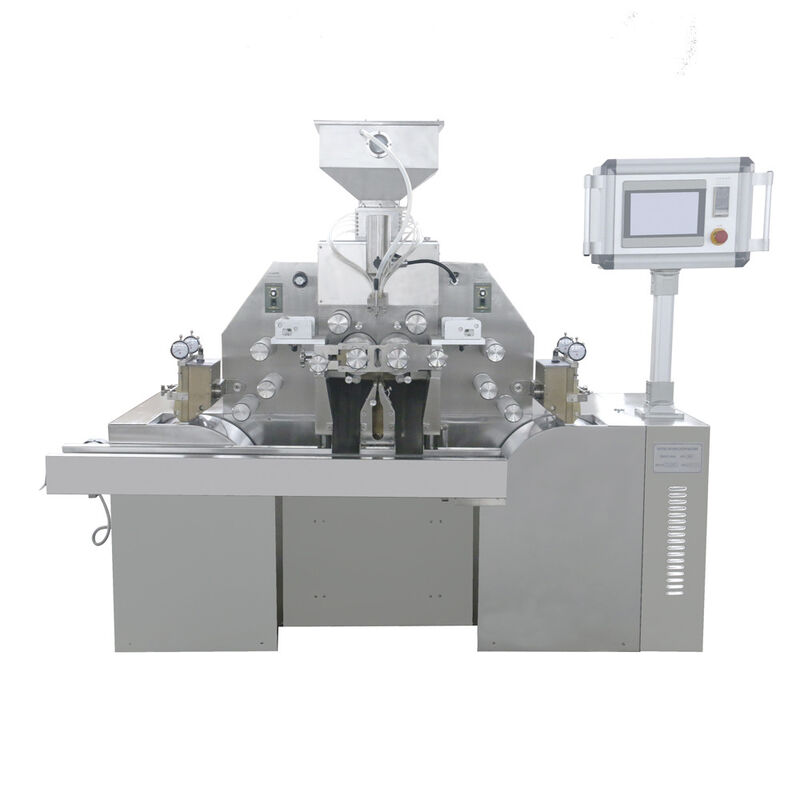

2ml 5rpm Water Cooling Softgel Encapsulation Machine 02ml 5rpm Water Cooling Softgel Encapsulation Machine 12ml 5rpm Water Cooling Softgel Encapsulation Machine 2

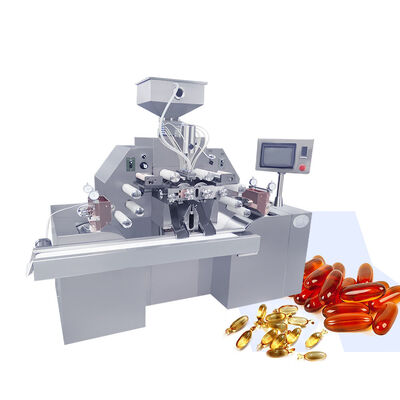

2ml 5rpm Water Cooling Softgel Encapsulation Machine 3

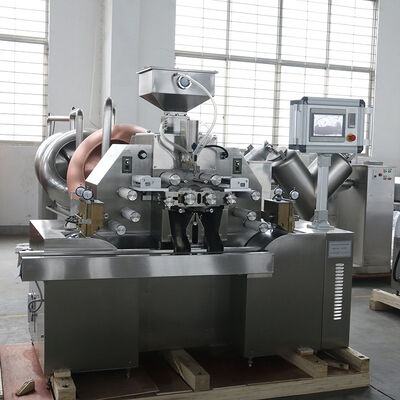

2ml 5rpm Water Cooling Softgel Encapsulation Machine 4
