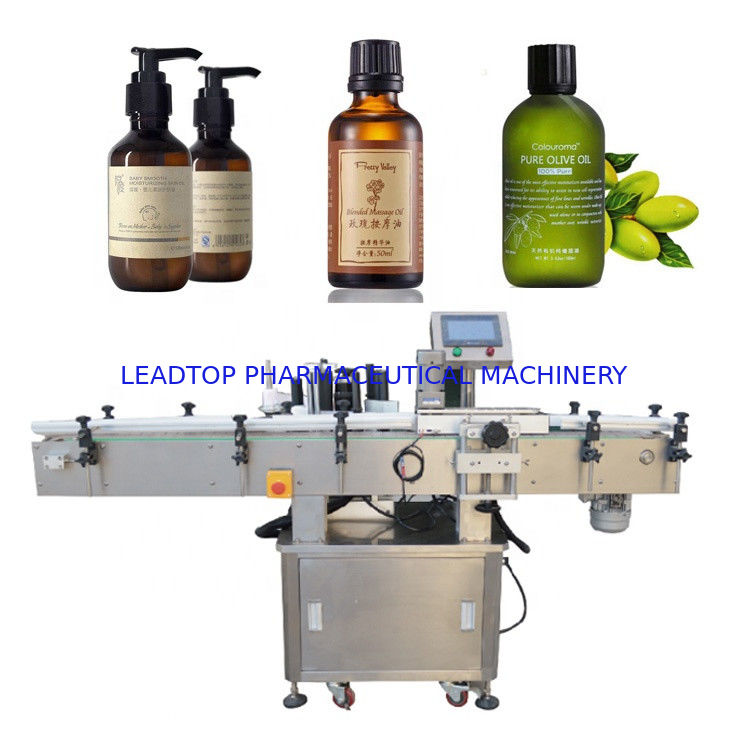

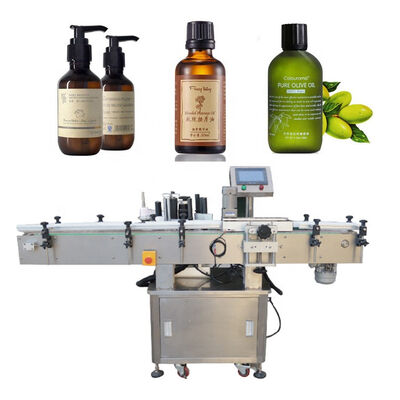

Juice Bottle Roll 130carton/Min Automatic Sticker Labeling Machine

Juice Bottle Roll 130carton/Min Automatic Sticker Labeling Machine

Brand Name:	LTPM China
Model Number:	MT-Series
MOQ:	1set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	25sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, GMP

Voltage:

220V/380V, 50/60Hz

Capacity:

20-130carton/min

Bottle Diameter:

25-134mm

Type:

Labeling Machine

Condition:

New

Usage:

Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc

Packaging Details:

Export standard wooden case

Supply Ability:

25sets/month

Highlight:

130carton/min automatic sticker labeling machine

134mm Automatic Sticker Labeling Machine

130carton/min bottle sticker labeling machine

Product Description

Introduction:

1. Suitable for square, flat products of single and double labeling.

2. Square bottle or three sides, and all around surround type labeling.

3. Round bottle label applies to label type, double post positioning respectively, single and double labeling,

4. Adopts the touch screen, easy to operate.

5. Siemens PLC and servo motor one-on-one feedback control, make controling accurate, drive the main motor ultra to small inertia.0.75kw, can achieve instantaneous constant speed instantaneous abrupt stop, labeling of high precision and strong stability.

Performance characteristics:

1. Headers any Angle adjustment, more suitable for different product shape of regulation, operation simple and convenient.

2. Tag tray institutions, using the constant tension make label smooth operation, the most suitable for high speed labeling;

3. Pressure zone and the main conveyor line adopts mechanical transmission, make two take absolute synchronization.

4. Pressure with sectional mat, will not affect the individual by products of high and low pressure, mat of polymer materials is
more wear-resisting.

5. Cyanogen 30 degrees butyl dynamic locating mechanism of rubber roller and camping cylinder roller three roller, make the
product smooth rotation, thus improve the labeling accuracy.

6. Product positioning using photoelectric orientation, can be specified in the product of any location accurate labeling(location
selection)

7. Based on product features, can be designed to increase the special label.

Technical Parameters:

Model	MT-130D
The standard system	Step Motor
Capacity	20-130 carton/min
Operating Direction	Left or right
Label speed	≤35 m/min
Tags volume inner diameter	76 mm
Tags volume outer diameter	350 mm (max)
Label Specifications	Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy	±1.0mm (subject to the roughness of the plane)
Weight	200KGS
Total motor power	800W
Power supply	AC220V 50/60HZ Single phase
Size appearance (mm)	2200 (L) 1800 (W) 1500(H)

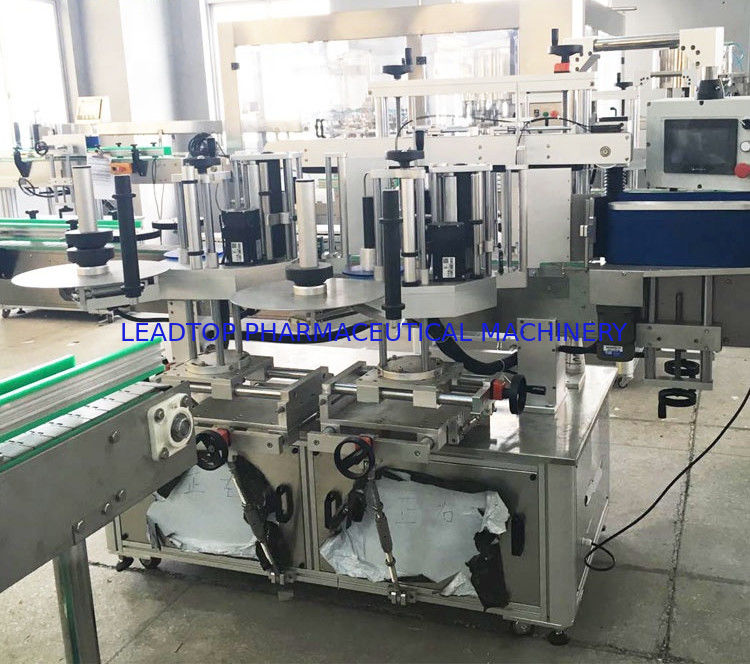

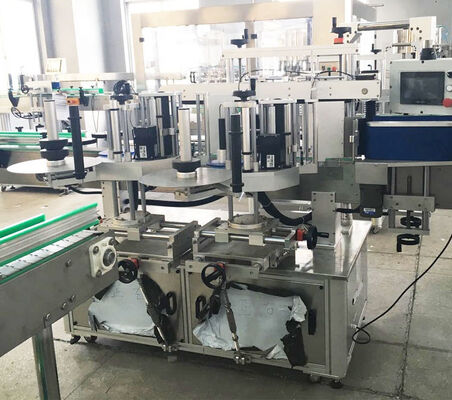

Machine Details:
