Double Side Square Bottle 134mm Automatic Labeling Machine

Double Side Square Bottle 134mm Automatic Labeling Machine

134mm automatic labeling machine

20carton/min automatic labeling machine

134mm square bottle labeling machine

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

MT-Series

Contact Us

Request A Quote
Product Details
Voltage:
220V/380V, 50/60Hz
Capacity:
20-130 Carton/min
Bottle Diameter:
25-134mm
Type:
Labeling Machine
Condition:
New
Usage:
Adhesive Labels Bottles Labeling Machine,Beverage Drinks,Food,etc
Product Description
Good Quality Fully Automatic Round Bottle Labeling Machine / Sticker Self Adhesive





◆ Wide application range, can meet the full-circle labeling or semi-circle labeling of round bottles, easy to switch labeling between bottles, easy to adjust;

◆ The label has a high degree of coincidence. The label is bypassed by a rectifying mechanism. The label is not deflected. The labeling position is x/y/z and the inclination is adjustable. The total of eight degrees of freedom is adjustable.

Dead angle, high label coincidence;

◆ Excellent labeling quality, adopting elastic pressure-coated belt, flat labeling, no wrinkles, and improve packaging quality;

◆ Flexible application, bottle standing labeling, automatic bottle splitting function, can be produced in a single machine, or can be connected to the production line;

◆ Intelligent control, automatic photoelectric tracking, with no material and no labeling, no automatic calibration and automatic label detection to prevent leakage and label waste;

◆ High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German labor test label electric eye composed of advanced electronic control system, support equipment 7 × 24 hours of operation;

◆ Simple adjustment, labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation and adjust according to need;

◆ Rugged and durable, adopting three-bar adjustment mechanism to make full use of the stability of the triangle, the whole machine is solid and durable. Made of stainless steel and high-grade aluminum alloy, in line with GMP

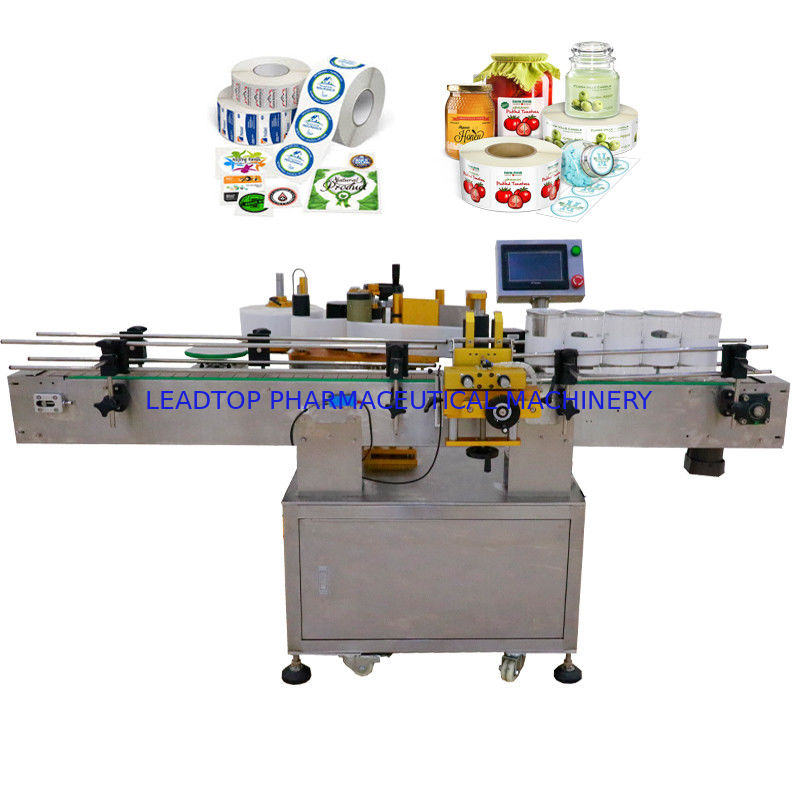

Double Side Square Bottle 134mm Automatic Labeling Machine 0



Double Side Square Bottle 134mm Automatic Labeling Machine 1



Technical Parameters:

Model MT-130D
The standard system Step Motor
Capacity 20-130 carton/min
Operating Direction Left or right
Label speed ≤35 m/min
Tags volume inner diameter 76 mm
Tags volume outer diameter 350 mm (max)
Label Specifications Glassine backing Paper , opaque label (The application of carton Can be customized according to customer’s demand)
Labeling accuracy ±1.0mm (subject to the roughness of the plane)
Weight 200KGS
Total motor power 800W
Power supply AC220V 50/60HZ Single phase
Size appearance (mm) 2200 (L) 1800 (W) 1500(H)



Main Features:
Good Quality Fully Automatic Round Bottle Labeling Machine / Sticker Self Adhesive
1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

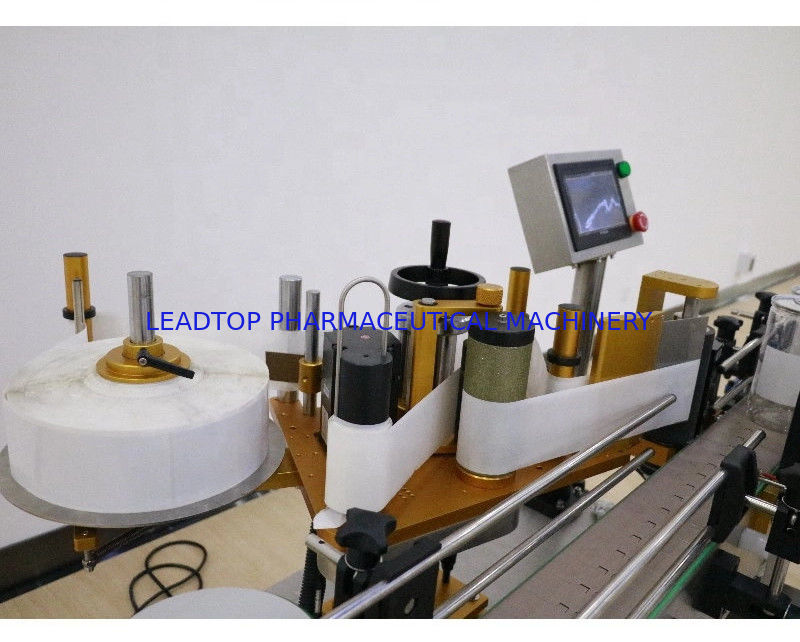

Double Side Square Bottle 134mm Automatic Labeling Machine 2





Our Advantages
We are specialized in can and bottle filling and sealing and labeling machine production which can provide good pre-sales and after-sales service.

Double Side Square Bottle 134mm Automatic Labeling Machine 3



Cans
It's sutable for all kinds fo round cans,easy open cans,Tin cans,PET cans and other round cans

Double Side Square Bottle 134mm Automatic Labeling Machine 4



Glass bottle could be done
It also suitable for glass bottle,half label,full label,corner label ,flat label,and you also could provide us your label sample for customizing.

Double Side Square Bottle 134mm Automatic Labeling Machine 5
