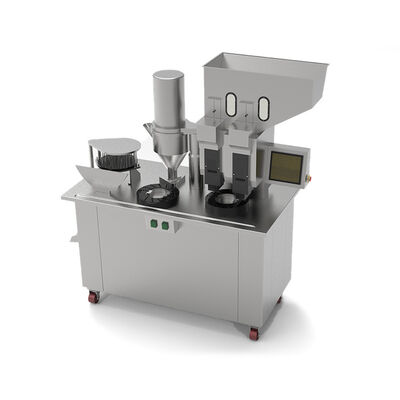

ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard

ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard

    • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
    • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
    • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
    • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
    • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
  • ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard

    Product Details:

    Place of Origin: china
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: ProCap-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Wooden Case
    Delivery Time: In 25 days after receiving the deposit
    Payment Terms: 30% TT as deposit and 70% before shipping
    Supply Ability: 25 sets/Month
    Contact Now
    Detailed Product Description
    Vacuum Pump: XD-040(60m3/hour) 0.1m3/min Capsule Size: 00#,0#,1#,2#,3#,4#,5# Are Available
    Capacity Of Air Compressor: 0.1m3/min Noise: Less Than 60dB (A)
    Capacity: 50,000capsules/hour

    Product Description
    ProCap-2 Double Head Semi-Automatic Capsule Filling Machine is our newly upgraded generation special for Pharmaceutical and Natural products industry. This machine is suitable for filling both powder and pellet by changing filling device.
    Special designed Double head capsule sowing device adopts automatic servo motor system which make capsule auto separation after sowing.
    This model machine was upgraded by LTPM China in 2018, Since the machine has been upgrade, we have sold this model over 50sets per year. This is really a popular model right now. Because it save clients labor cost but triple the production capacity.


    Features
    1. Double Head Sowing system Triple the production capacity to 36,000capsules/hour
    2. Servo motor system under capsule disk for capsule automatic separation after sowing.
    3. Touch Screen system with PLC and Four inverter for speed control. This design stabilized the machine running in the production.
    4. Horizontal Capsule Sealing Station: Avoiding Powder leakage as well as automatic pneumatic system makes the job easier.
    5. One time forming manufactured operation platform: Less dead corner and simplified your cleaning job after production.
    6. Oxidized Change Parts: Extra Stronger mould and easier for cleaning.
    7. Four Inverter System: Capsule Sowing Speed, Capsule Separation Speed, Powder Filling Speed and Capsule disk rotation speed are all adjustable.
    Technical Data
    ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
    Model:
    ProCap-2
    Capsule Size:
    #00-#5
    Vacuum Pump:
    XD-040(60m³/hour)
    Capacity Of air compressor:
    0.1m³/min
    Noise:
    Less than 60dB (A)
    Overall Dimensions:
    1600*800*1600mm
    Packing Dimensions:
    2000*1000*1800mm
    Net Weight:
    550Kg
    Gross Weight:
    625Kg
    Capacity:
    36,000capsules/hour
    Power Supply:
    380V 50Hz 3.2Kw

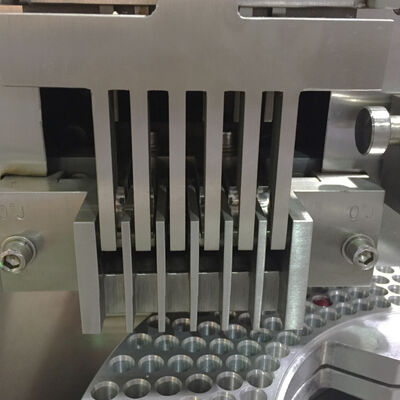

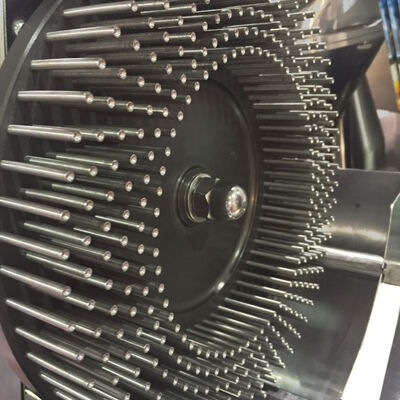

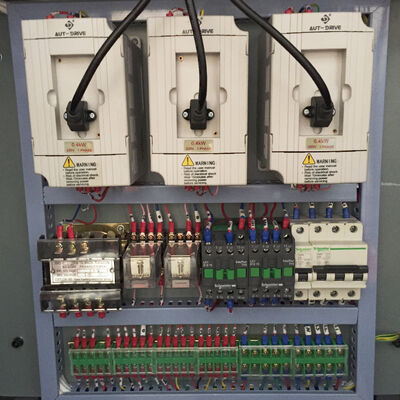

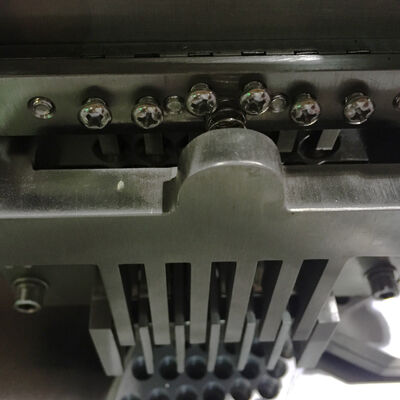

    Details Images
    ProCap-2 Double Head Semi Auto Capsule Filler In Pharma With FDA Standard
