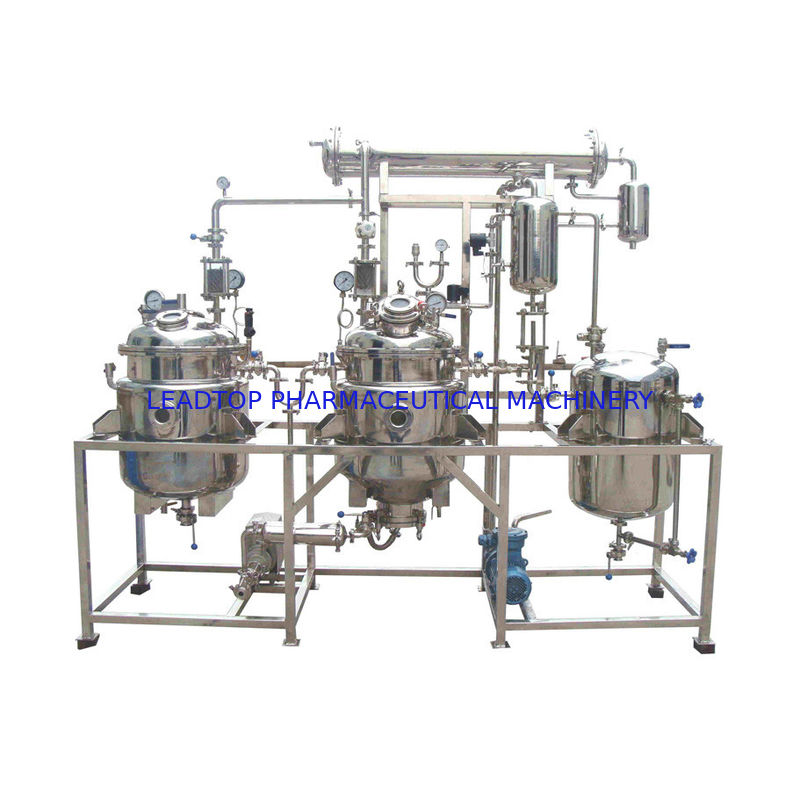

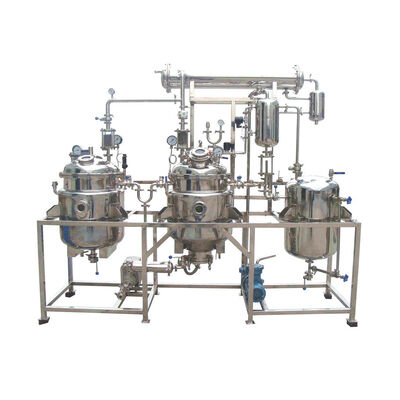

Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration

Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration

    • Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration
    • Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration
    • Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration
  • Ss Herb Extraction Equipment Ganoderma Grape Seed Ginkgo Ginger Extraction Concentration

    Product Details:

    Place of Origin: CHINA
    Brand Name: LTPM CHINA
    Certification: CE
    Model Number: LTN-1/250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: Pallet Packing
    Delivery Time: 45 days
    Payment Terms: T/T, L/C, D/P, Western Union
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Model No.: LTN-1/250 Material: Stainless Steel
    The Volume Of Extracting: 1m³ Raw Material Input Capacity: 100-120kgs
    Steam Consumption: 350kg/hour Water Circulation Capacity: 20-30T
    Capacity Of Concentrating Evaporator: 200kg-250kg/hour The Time Of Extraction: 6-8h

    Hemp Oil Extraction Machine in stevia extraction line



    Product Description

    LTN-1000 High Efficiency Special Oil Extraction Equipment Line suits for extraction of herbal material, such as rose oil, zedoary turmeric oil, star anise oil, litsea cubeba oil, patchouli oil, peppermint oil, lavender oil. It is easy for operating and with high oil extraction rate. It meets for GMP standard.



    Functions

    1. It adopts the steam distillation tank for waterextraction(wet steaming), heated by jacket and steam generator.

    2. It can completelyeliminate rust taste, and the color difference technology problems of fragrantessential oil.

    3. Please mixing at regular time when the wetsteaming, make the herbal(such as rose and water fully mixed) and improve thefinished oil rate.

    4. Make the vapor liquid cooling more rapidlyand thoroughly though the condenser and the cooler.

    5. The high precision innersurface makes the oil condensate flow smoothly. Whole body stainless steel, save area andeasy operation.





    Feature
    Low temperature densely: The main solvent is water and ethanol in the Chinese extracted, if adopt the low extracting and low concentrating, the water extracting is control in 50℃-90℃, ethanol extracting is control in 40℃-80℃. Because of the low extracting, it can avoid the Chinese medicinal materials active ingredient, especially the organisms activated not easy to destroy, at the same time it can avoid producing the inefficacy ingredients in the high temperature, such as dextrin, colloid, tannin etc, improve the products quality, convenient for isolation and purification.



    High drawing rate: Because of the extracting pot at the condition of the vacuum pressure and low temperature, it can enable the Chinese medicinal materials cell to expedite expand, cell membrane broken at once, at cell inside, it stripping the active ingredient. And the continuously supplement of the reflus-norma new solvent, which it enable the solvent played at the medicinal materials surface and penetrate into the medicinal materials interior, improve the medicinal attrition elution-force and the solubility, the medicinal material and the solvent keep higher gradient of concentration and extend ability, having accelerated the dissolving out of solvent of active principle of the medicinal materials ,improve the extracting rate and the harvested ointment rate of the Chinese medicinal material.



    Save the solvent: Only need to join 8 times of solvents of crude drugs quantity once, utilize new solvent conduct of hot backset current to hot backset current to supplement, which the backset total is equal to the old extracting need 2-3 times join solvent total, it save the solvent 50%-60%, also it can increased the collecting volume of medicinal materials.



    Save steam, the unit in closed and low temperature operation, all maintained liquid temperature in the tank keep in 50-90℃, heated steam pressure in atmospheric conditions, can significant reduction of the steam power consumption.



    Design innovation: Through the vacuum of the vacuum converter and the height difference of the vacuum height suction of the key design, it shorten the extracting and contracting time, improve the medicinal harvested ointment rate and some active ingredient keeping rate.



    Advanced craft: Extracting concentrating is go on meanwhile, completion gets medicinal extract directly, shortens the craft.



    Computer controlled: Adopt the PLC main-machine interface, vacuum converted timing ect, also it can setup the temperature controlled, vacuum controlled, density controlled and production original recording printing device.



    Lower costs: The all right equipment of aircrew simplifies, washed the convenient, the whole closed operation, has no environmental pollution, compared with necessary equipment of traditional craft, the equipment reduces by 1/3, the occupation of land reduces by 2/3, investment can save by 40%, energy consumption can be reduced by 40%, the attendant reduces by 1/3, so the production cost can be reduced by about 50%.



    Specifications:



    Model

                    LTN-1/250

    The volume of extracting (m³)

                         1

    The work temperature of extracting and concentrating (°C)

      Water: 50-90°C Alcohol: 40-80°C

    Raw Material Input Capacity (kg)

                     100-120kgs

    Capacity of Concentrating Evaporator

                    200kg-250kg/hour

    Steam Consumption

                    350kg/hour

    Water Circulation Capacity

                  15-25T

    Power of Vacuum Pump

                    4kw

    The time of extraction (h)

                         8

    Concentrate density (%)

                    1.2-1.4
